CEL-MAR ADA-13110 User Manual

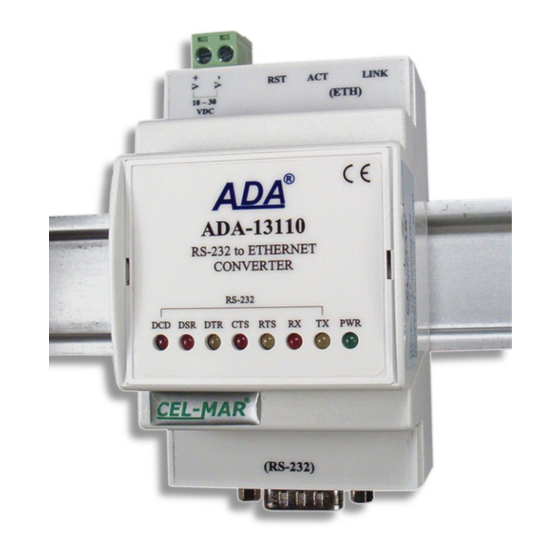

Rs232 to ethernet converter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

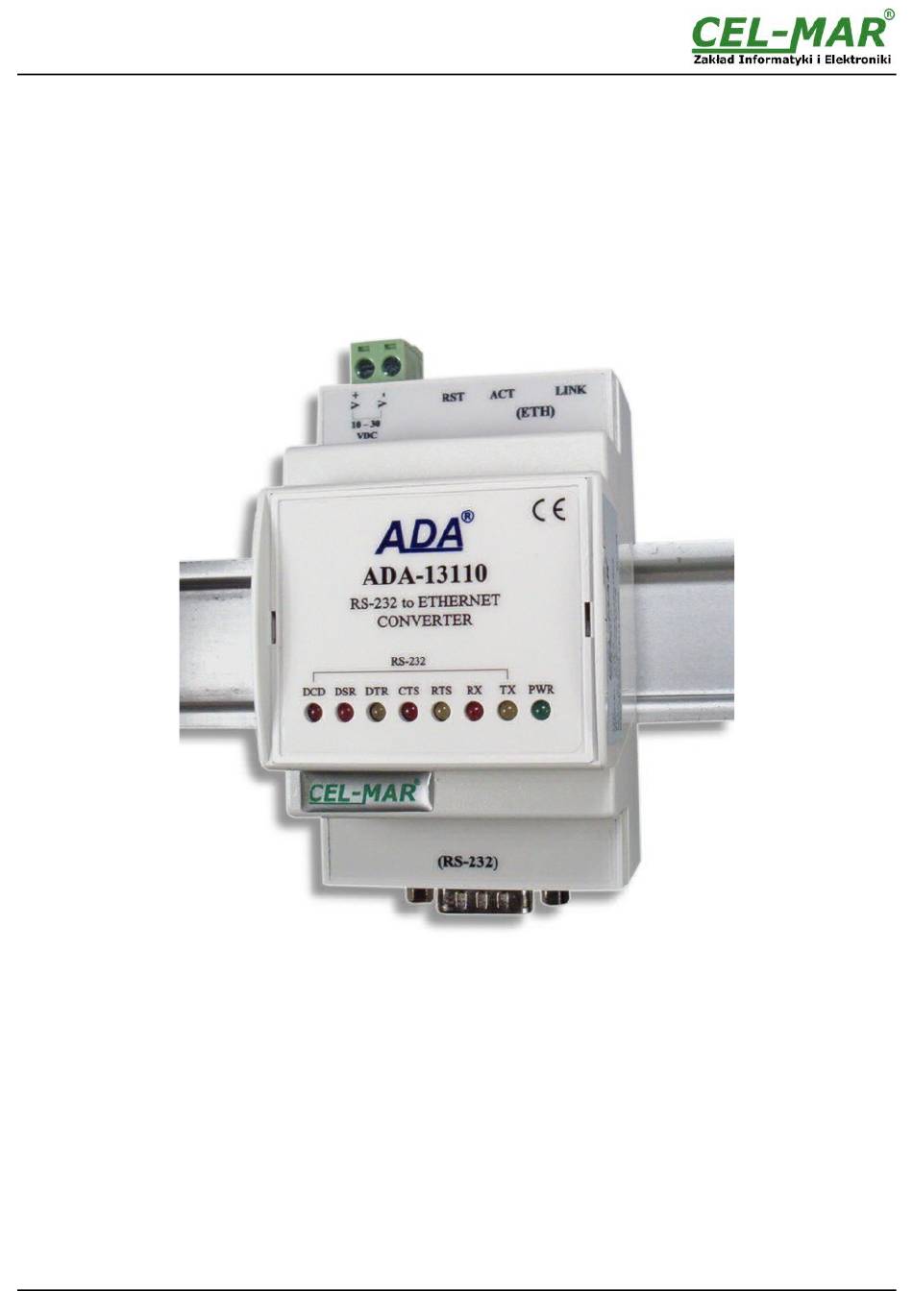

ADA-13110
User manual
ADA-13110
RS232 to ETHERNET converter
Copyright © 2001-2017 CEL-MAR sp.j.
1
io_ada-13110_v.1.12_en

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADA-13110 and is the answer not in the manual?

Questions and answers

Related Manuals for CEL-MAR ADA-13110

Summary of Contents for CEL-MAR ADA-13110

  • Page 1 ADA-13110 User manual ADA-13110 RS232 to ETHERNET converter Copyright © 2001-2017 CEL-MAR sp.j. io_ada-13110_v.1.12_en...

  • Page 2: Table Of Contents

    ADA-13110 Contents 1. GENERAL INFORMATION..................................3 1.1. WARRANTED INFORMATION............................... 3 1.2. GENERAL CONDITIONS FOR SAFE USE............................ 3 1.3. CE LABEL....................................... 3 1.4. ENVIRONMENTAL PRESERVATION............................3 1.5. SERVICE AND MAINTENANCE..............................3 1.6. PACK CONTENTS..................................3 2. PRODUCT INFORMATION..................................3 2.1. PROPERTIES....................................3 2.2.

  • Page 3: General Information

    1.1. WARRANTED INFORMATION ADA-13110 converter is covered by a two year warranty from date of sale. In case of being damaged it will be repair or the damaged component will be replace. The warranty does not cover damage caused from improper use, materials consumption or any unauthorized changes.

  • Page 4: Description

    DSR, DCD of RS232 interface. To the RS232 port of ADA-13110 can be connected to telephone exchanges, barcode scanners, modems, weight, magnetic card readers. It is adapted for powering from the regular voltage external source which value should contain from 10V to 30V and was provided from the power pack about 3W power.

  • Page 5: Isolation

    3.2. ETHERNET NETWORK CONNECTION The ADA-13110 has to be connected to ETHERNET network by the use of the switch, the HUB or directly to the PC network adapter. The table below shows preparing of the straight cable for converter connection to switch or hub.

  • Page 6: Connecting To Network Adapter Of Pc

    3.2.1. CONNECTING TO NETWORK ADAPTER OF PC If there is not the switch or the HUB, it is possible to connect the ADA-13110 directly to a network adapter of PC using the cross-over cable (Table 2). This connection can be used for converter configuration.
  • Page 7 ADA-13110 Local network ETHERNET built on the switch ETHERNET Straight Cable (Table 1) PC with a network adapter Static IP address Device with RS232 interface ADA-13110 Static IP address RS232 Fig 4. LAN connection via switch/hub to operating in the Real Port mode...

  • Page 8: Connection For Operating In Tcp & Udp Serial Bridge Mode

    3.2.3. CONNECTION FOR OPERATING IN TCP & UDP SERIAL BRIDGE MODE Pictures below show how correctly connect the ADA-13110 to ETHERNET network for functioning in TCP & UDP serial bridge mode. For connection by the use of network devices (router, switch or HUB) use the straight cable (see Table 1).

  • Page 9: Connection To Rs232 Devices

    3.3.1. CONNECTING OF DEVICE WITH RS232 PORT, DTE TYPE (PC COMPUTER) ADA-13110 can be connected to RS232 port of PC computer by the use of RS232 extension cable CAB-DB9F/DB9F-C-1,8m (available in our offer). Fig 8 below shows the example connecting to RS232 PC port.

  • Page 10: Connecting Of Device With Rs232 Port, Dce Type (Modem, Code Reader)

    3.4. POWER SUPPLY CONNECTION The power supply to the ADA-13110 converter should be DC (regulated) from 10 V= to 30V=. Nominal power is typically 3W, e.g. ZS- 12/250 or DR-15-24. Power cable from DC power supplies to device must not be longer than 3m.

  • Page 11: Initial Configuration Using Adafinder Software

    ADAFinder is use for initial configuration of converter's network setting. Before running ADAFinder should be disabled the System FireWall! After running, the program is searching local network and if find ADA-13110, will add them to the list of available converters [Devices:] Fig.10.

  • Page 12: Configuration And Management By The Use Of Internet Browser

    Fig 11. ADAFinder configuration of IP network address 5.2. CONFIGURATION AND MANAGEMENT BY THE USE OF INTERNET BROWSER Integrated WWW server to ADA-13110 enable to easy configuration and diagnostics of LAN and WAN network devices by the use Internet browser.

  • Page 13: Network Configuration

    5.2.1. NETWORK CONFIGURATION To make changes of default setting or new configuration of ADA-13110, select on left panel Configuration -> Network and then on right [IP Settings] (Fig.13) and make the selection: Obtain an IP address automatically using DHCP or Use the following IP address (in this option, enter IP Address of the converter, Subnet Mask, Default Gateway), press [Apply] for save.

  • Page 14: Realport (Virtual Port) Configuration

    Press [Apply] for save. After installation driver (RealPort) of virtual port COM (see chapter 6) in operating system, data sending by application to this port are transferred through WLAN/WAN to ADA-13110 converter and are present on his serial port. The driver RealPort installation is presented in chapter 6.

  • Page 15: The 'Enable Tcp Keep-Alive' Option Configuration

    ADA-13110 Fig 15. Example configuration of TCP server For configuration of TCP Client Settings (TCP Client Setting, fig. below), select Automatically establish TCP connections, connection between client and TCP server will be automatically. Then select Always connect and maintain connection option and in section Establish connection to the following network service enter IP address of device to which TCP client will send data, select service and enter port.

  • Page 16: Serial Port Transmission Parameters Configuration

    ADA-13110 5.2.2.1.2.3. SERIAL PORT TRANSMISSION PARAMETERS CONFIGURATION For proper operation of ADA-13110 with device connected to his serial port, should be set the same transmission parameters for both devices. Select Basic Serial Settings and enter Baud Rate, Data Bits, Parity, Stop Bits, the same parameter like has device connected to the serial port of the converter.

  • Page 17: Udp Client & Server Configuration In Case Of Slave Device

    UDP client service to the MASTER device connected to LAN / WAN through e.g. ADA-13020, ADA-13028L, ADA-13040MG, ADA-13110, ADA14040, ADA-14040. On lists Send data to the following network services are addresses of network devices and ports to which will be send data. In field: –...

  • Page 18: Serial Port Transmission Parameters Configuration

    ADA-13110 5.2.2.1.3.3. SERIAL PORT TRANSMISSION PARAMETERS CONFIGURATION For proper operation of ADA-13110 with device connected to his serial port, should be set the same transmission parameters for both devices. Select Basic Serial Settings and enter Baud Rate, Data Bits, Parity, Stop Bits, the same parameter like has device connected to the serial port of the converter.

  • Page 19: Adding New User With Limited Permissions For Configuration Or Management

    Allow command line access – access using the Command Line Interface - telnet, Allow web interface access – access using the internet browser. C/ User Permissions - user permissions to configuration and management of the ADA-13110 converter, where are options: None - no permission, Read - permission to read, Read Self - permission to read own settings, but not other users.

  • Page 20: Reboot

    2. Double click icon [ Administrative Tools] and [ Device Manager ] 3. Press [Ports (COM & LPT)]. On fig. 20 are shown available serial ports COM1, COM2 and COM3 marked as ADA-13110 which was created after installation of RealPort driver.
  • Page 21 ADA-13110 Fig 20. Devices view on Windows XP Fig 21. Example configuration of multi-port serial adapter...

  • Page 22: Factory Default

    ADA-13110 - Electronic versions: Basic Galvanic isolation: Order example: 1kV= from the power supply Product Symbol: ADA-13110-1-2-3 3kV= from the power supply 1 – basic version of electronic, 1kV= 3-way 2 – 1kV= galvanic isolation, from the power supply, 3kV= 3-way 3 –...

  • Page 23: Specification

    ADA-13110 10. SPECIFICATION TECHNICAL DATA Transmission Parameters Interfaces ETHERNET RS232 Connector RJ45 DB-9M (male) LAN up to 150 m Up to 15m Max. Line length Max. number of connected device Depend on addressing type in network Max. baud rate 10/100 Mbit/s...
  • Page 24 Thank you for purchasing CEL-MAR Company products. We hope that this user manual helped connect and start up ADA-13110 converter. We also wish to inform you that we are a manufacturer of the widest selections of data communications products in the world such as: data transmission converters with interface RS232, RS485, RS422, USB, Current Loop, Fibre-Optic Converters and Ethernet or Wi-Fi.
