Biosan LMC-56 Service Manual

Periodical maintenance
LMC-56 does not require periodical technical maintenance, except cleaning.
Cleaning. Standard ethanol (75%) or any other cleaning liquids can be used for cleaning
and disinfecting of the device, if it does not contain any strong organic solvents (such as
acetone, toluene or benzene).
The following spare parts are available for LMC-56:
No. Starting version/date Compatibility
1 V.1AD / 02.12.2019
1 V.1AD / 02.12.2019
2 V.1AD / 02.12.2019
3 V.1AD / 02.12.2019
4 V.1AD / 02.12.2019
5 V.1AD / 02.12.2019
6 V.1AD / 02.12.2019
7 V.1AD / 02.12.2019
8 V.1AD / 02.12.2019
9 V.1AD / 02.12.2019
10 V.1AD / 02.12.2019
11 V.1AD / 02.12.2019
12 V.1AD / 02.12.2019
13 V.1AD / 02.12.2019
14 V.1AD / 02.12.2019
15 V.1AD / 02.12.2019
16 V.1AD / 02.12.2019
17 V.1AD / 02.12.2019
18 V.1AD / 02.12.2019
19 V.1AD / 02.12.2019
20 V.1AD / 02.12.2019
21 V.1AD / 02.12.2019
22 V.1AD / 02.12.2019
LMC-56 Service Manual - V.1AD
Service Manual for

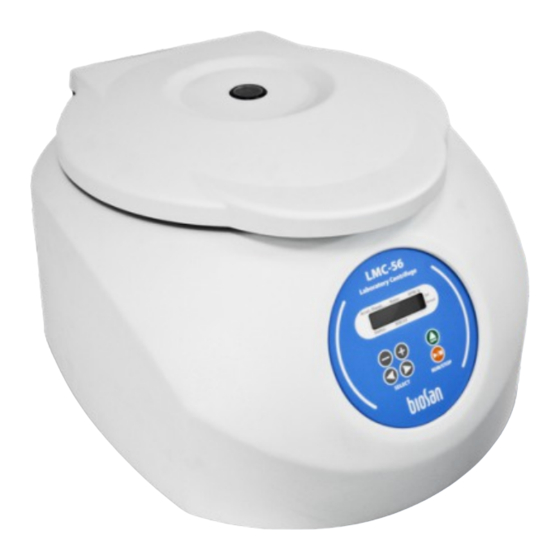

Centrifuge LMC-56
- Fuse
- Fuse
- Rotor type sensor assembly
- Switch
- Power socket with fuse Holder
- EMI Filter
- Motor
- Rubber shock absorbers for motor (large)
- Rubber shock absorbers for motor assembly (small)
- Fan
- Imbalance sensor
- Voltage Converter Board
- Power Board
- AC-DC Power Supply
- Button Board
- Optocouple Board / Lid lock sensor
- Solenoid
- Microswitch
- Microprocessor
- Control Board
- LCD Board
- Lid Hinge set
- Casing
Version - 1, May 2022
Spare part Marking Article
FSMO 2A - 230V BS-000000-S07
FSMO 4A - 115V BS-000000-S13
HALL_SEN_V1 BS-010221-S19
C1350 BS-010221-S20
PF0030/63 BS-010221-S13
6VV1 BS-010221-S14
FL86BLS58 BS-010221-S07
BS-010221-S11
BS-010221-S12
EF92252S1 BS-010221-S17
HALL_SEN_V2 BS-010221-S18
SDC01 BS-010221-S06
LMC_H2S BS-010221-S03
LRS-350-48 BS-010221-S05
BUTT8 BS-010221-S02
SSBR3 BS-010221-S10
TAU1040T BS-010221-S08
SM05S-09A BS-010221-S09
PIC16F1933-I/SP BS-010221-S04
ROT4H BS-010221-S01
BC1602AGPLCTb BS-000000-S01
BS-010221-S15
LMC-56 BS-010221-S16
Page 1
