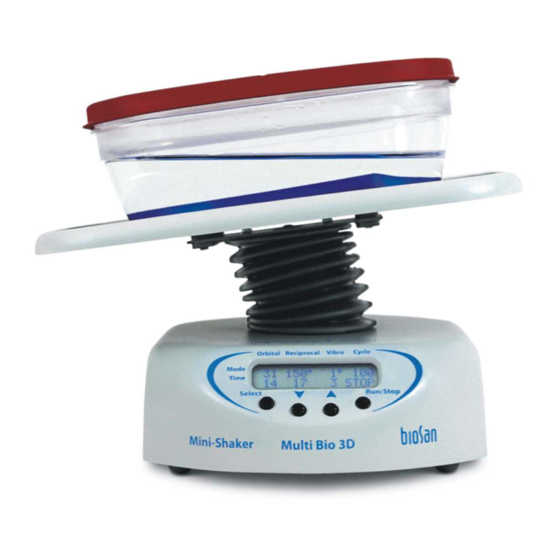

- Page 1 Medical–Biological Research & Technologies Multi Bio 3D Programmable Shaker Operating Manual for version V.2AW Certificate...
-
Page 2: Table Of Contents
Contents 1. Safety Precautions 2. General Information 3. Getting Started 4. Operation 5. Program setting 6. Specifications 7. Maintenance 8. Warranty and Claims 9. Declaration of Conformity Page 2... -
Page 3: Safety Precautions
1. Safety precautions The following symbol means: Caution! Make sure you have fully read and understood the present Manual before using the equipment. Please pay special attention to sections marked by this symbol. GENERAL SAFETY Use only as specified in the operating manual provided. ·... -
Page 4: General Information
· hazardous material is spilt on or penetrates penetrates into the equipment. 2. General Information Multi Bio 3D Programmable Shaker is designed for laboratory studies in the areas of biochemistry, immunochemistry, microbiology and genetic engineering. It can be used for: gel washing, blot-hybridization, electrophoretic analysis of proteins and ·... - Page 5 3D Reciprocating Shaking Combination of: • 3D shaking; • reciprocating shaking with adjustable turning angle from 0 to 360° (increment 30°): - with 7° pitch; - with adjustable speed from 1 to 100 rpm. 3D Vibro Shaking Intensive mixing. Combination of: •...
-
Page 6: Getting Started
Remove packing materials carefully and retain them for future shipment or storage of the unit. 3.2. Complete set. Package contents: Standard set Multi Bio 3D Programmable Shaker ........1 piece Bio PP-4S platform w ...............1 piece external power supply unit............1 piece Operating Manual;... -
Page 7: Operation
4. Operation 4.1. Connect the external power supply to electric circuit. 4.2. Place samples on the unit platform. 4.3. Set the required program and number of cycle repetitions (p.5 Program setting). 4.4. Press the Run/Stop key (Fig.2/11) to start the program. 4.5. -
Page 8: Program Setting
5. Program setting The program consists of cycles. Each cycle includes three different types of platform motion (3D orbital, 3D reciprocating and 3D vibro) set one after another with the duration from 0 to 250 seconds for 3D orbital and 3D reciprocal motion types and from 0 to 5 seconds for 3D vibro motion. - Page 9 Orbital Reciprocal V ibro Pause Pause Pause 5.7. Table shows different cycle variants. 5.8. Further examples illustrate program setting for four different cycle variants. 5.8.1. 3D orbital Most popular Sunflower kind of motion. Set the speed (A) (1 - 100 rpm) and time (B) (1 - 250 sec) of 3D orbital motion.
- Page 10 Orbital Reciprocal Vibro Cycle 100 180 Time, s Time (sec.) … Cycle 1 Cycle 2 Fig.6. Fig.5. Fig.6 shows 3D orbital, 3D reciprocal and 3D vibro motions run one after another in cycles. 5.8.3. 3D orbital + 3D reciprocal + pause Set the speed (A) (1 - 100 rpm) and time (B) (1 - 250 sec) of 3D orbital motion.
- Page 11 Orbital Reciprocal Vibro Cycle Time, s Time (sec.) Cycle 1 Cycle 2 … Fig.9. Fig.10. Fig.10 shows 3D vibro motion and pause run one after another in cycles. Page 11...
-
Page 12: Specifications
Replacement parts Description Catalogue number Bio PP-4S Flat platform with non-slip rubber mat BS-010125-AK Biosan is committed to a continuous programme of improvement and reserves the right to alter design and specifications of the equipment without additional notice. Page 12... -
Page 13: Maintenance
7. Maintenance 7.1. If the unit requires maintenance, disconnect the unit from electric circuit and contact Biosan or your local Biosan representative. 7.2. All maintenance and repair operations must be performed only by qualified and specially trained personnel. 7.3. Standard ethanol (75%) or other cleaning agents recommended for cleaning of laboratory equipment can be used for cleaning and decontamination of the unit. - Page 14 8.3. If any manufacturing defects are discovered by the Customer, an unsatisfactory equipment claim shall be compiled, certified and sent to the local distributor address. Please visit www.biosan.lv, Technical support section to obtain the claim form. 8.4. The following information will be required in the event that warranty or post-warranty service comes necessary.
-
Page 15: Declaration Of Conformity
9. Declaration of Conformity Version 2.02 - October 2012...
