Vision™PLC+HMI

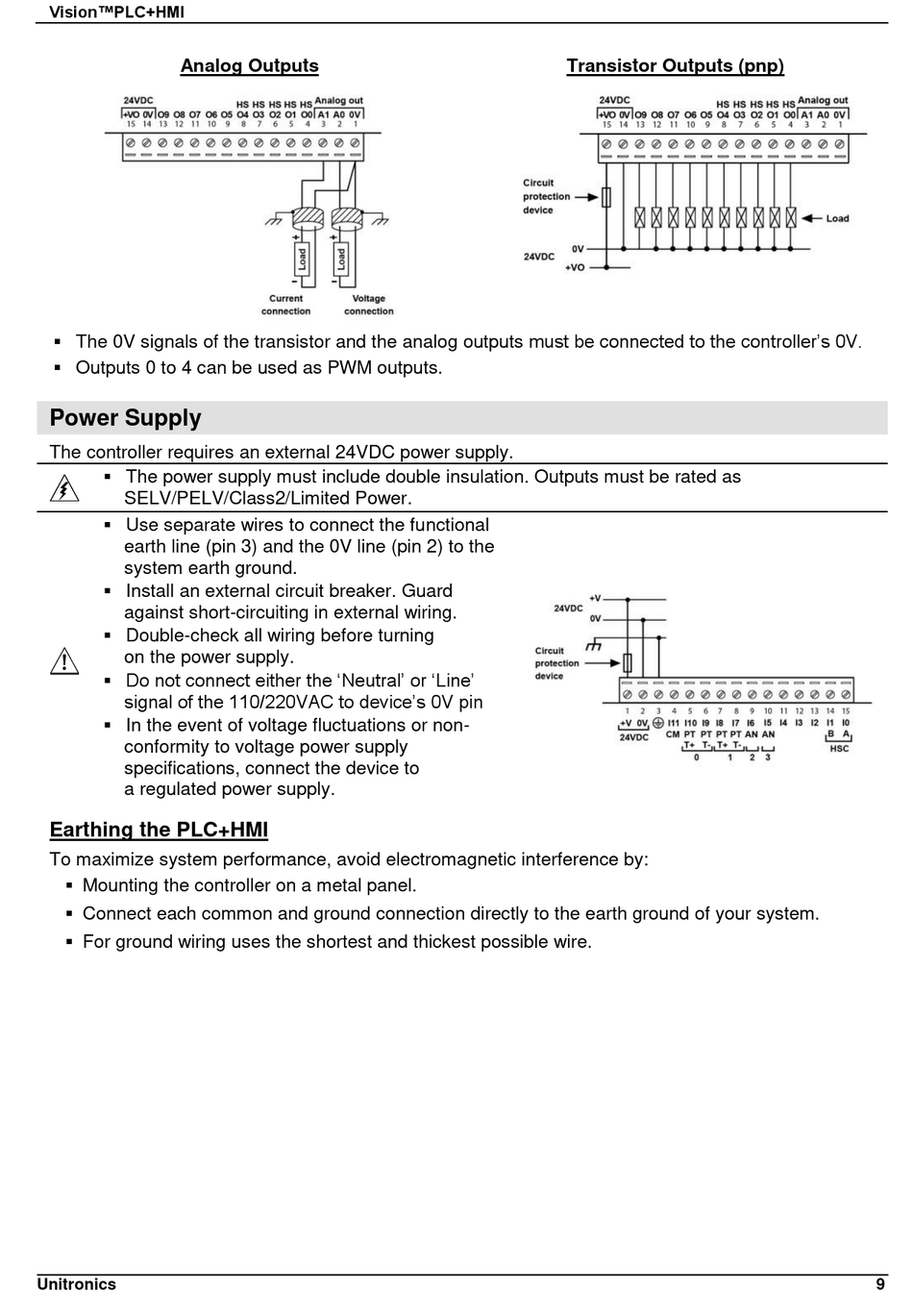

Analog Outputs
 The 0V signals of the transistor and the analog outputs must be connected to the controller's 0V.
 Outputs 0 to 4 can be used as PWM outputs.

Power Supply

The controller requires an external 24VDC power supply.
 The power supply must include double insulation. Outputs must be rated as
SELV/PELV/Class2/Limited Power.
 Use separate wires to connect the functional
earth line (pin 3) and the 0V line (pin 2) to the
system earth ground.
 Install an external circuit breaker. Guard
against short-circuiting in external wiring.
 Double-check all wiring before turning
on the power supply.
 Do not connect either the 'Neutral' or 'Line'
signal of the 110/220VAC to device's 0V pin
 In the event of voltage fluctuations or non-
conformity to voltage power supply
specifications, connect the device to
a regulated power supply.
Earthing the PLC+HMI
To maximize system performance, avoid electromagnetic interference by:
 Mounting the controller on a metal panel.
 Connect each common and ground connection directly to the earth ground of your system.
 For ground wiring uses the shortest and thickest possible wire.
Unitronics
Transistor Outputs (pnp)
