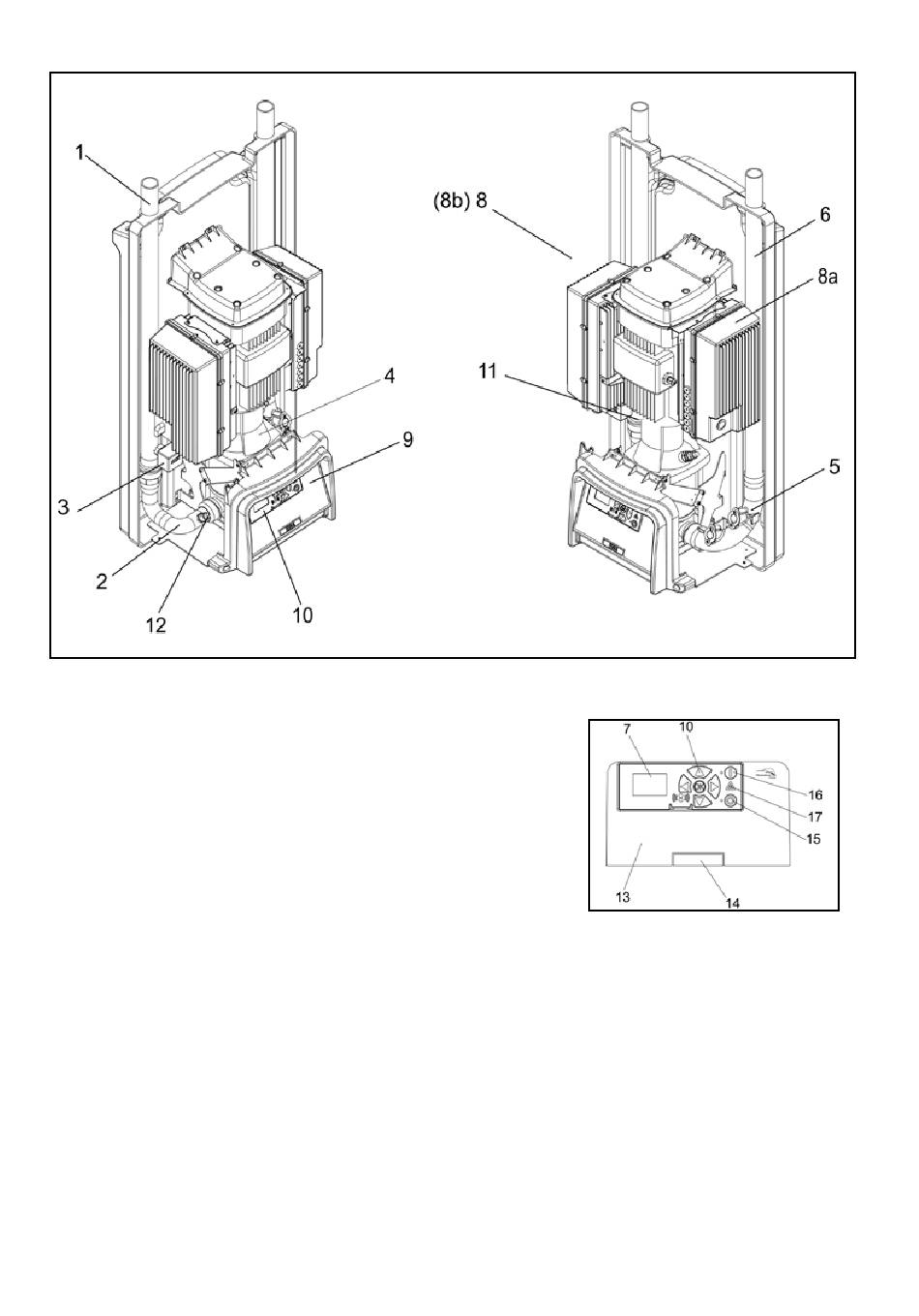

Fig. 5
1.3 Advanced Booster BW4 - BW7
(Fig. 5).
1. Water inlet
2. Manifold inlet
3. Trigger sensor, flow sensor
4. Pump
5. Manifold outlet
6. Outlet pipe
7. Display
8. El- box ( BW4)
8a. Inverter box
8b. Filter box (only used on BW7)
9. Operations panel
10. Navigation buttoms
11. Pressur sensor (Outlet)
12. Pressur sensor (Inlet)
13. Label
14. Name Label
15. • O Pushbutton.Stop
16. • I Pushbutton.Start
17. • Δ Lamp. Alight by error
6
Fig. 6
110001497
110001498
