1. Description

The Booster in the Chameleon
Plus range is a completely functio-
ning pumping station that supplies
pressurised water to connected
satellite hygiene stations. There-
fore the Booster must be supplied
with water in sufficient quantity and
power according to specifications.
The station is then ready for hygi-
ene duties.
Fig. 1
1
Fig. 2
The Booster is fitted with a fre-
quency controlled pump which en-
sures a constant working pressure
independent of usage pattern.
Important: Do not use the water
from the system for applications
other than cleaning.
110001493
2
2
110001494

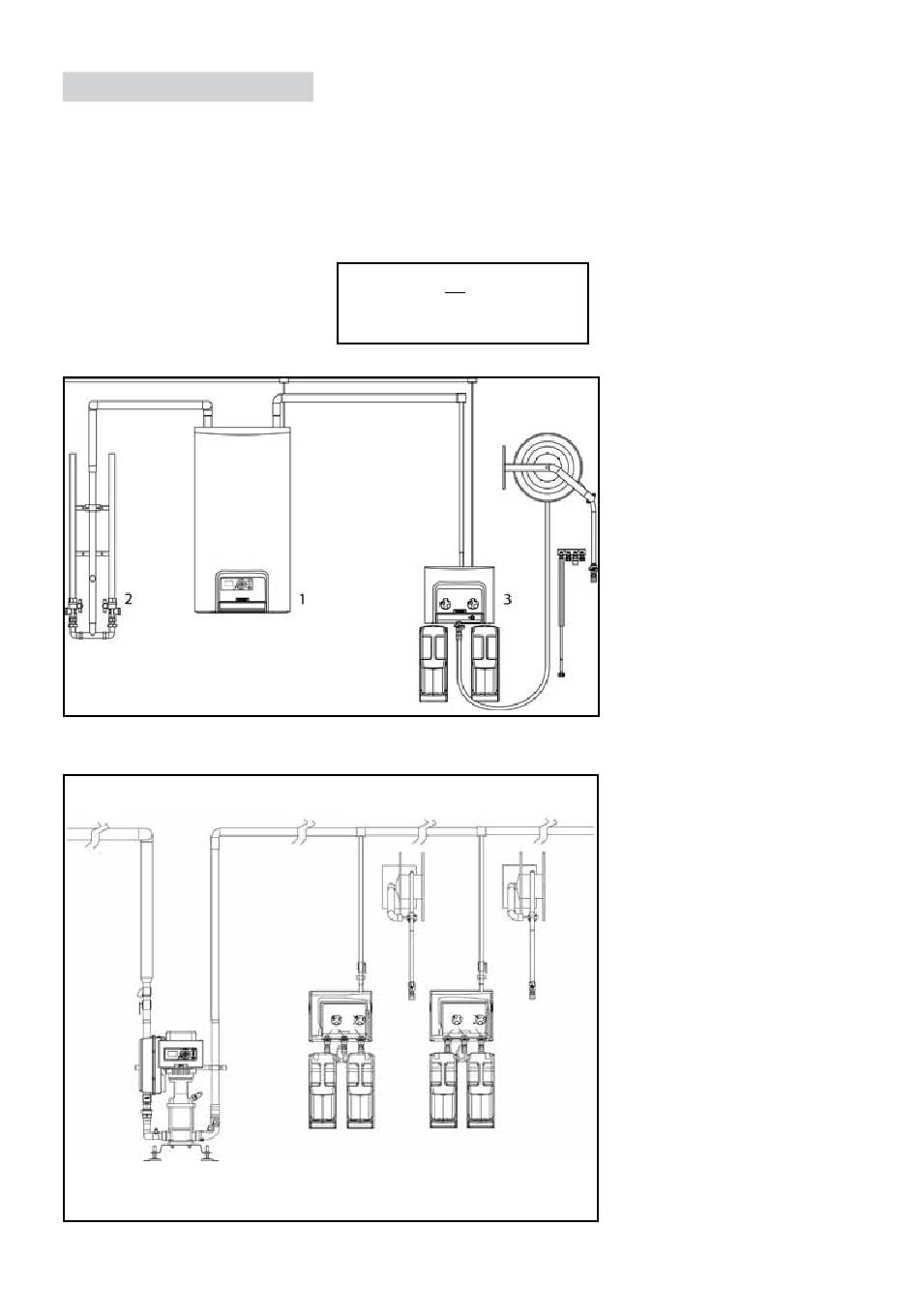

A typical Wall Booster installation
is shown in fig. 1
Booster (1)
· Mixing system (2)
· Satellite (3)
A typical Floor Booster installation
is shown in fig. 2
· Booster (1)
· Satellite (2)
