Fig. 3

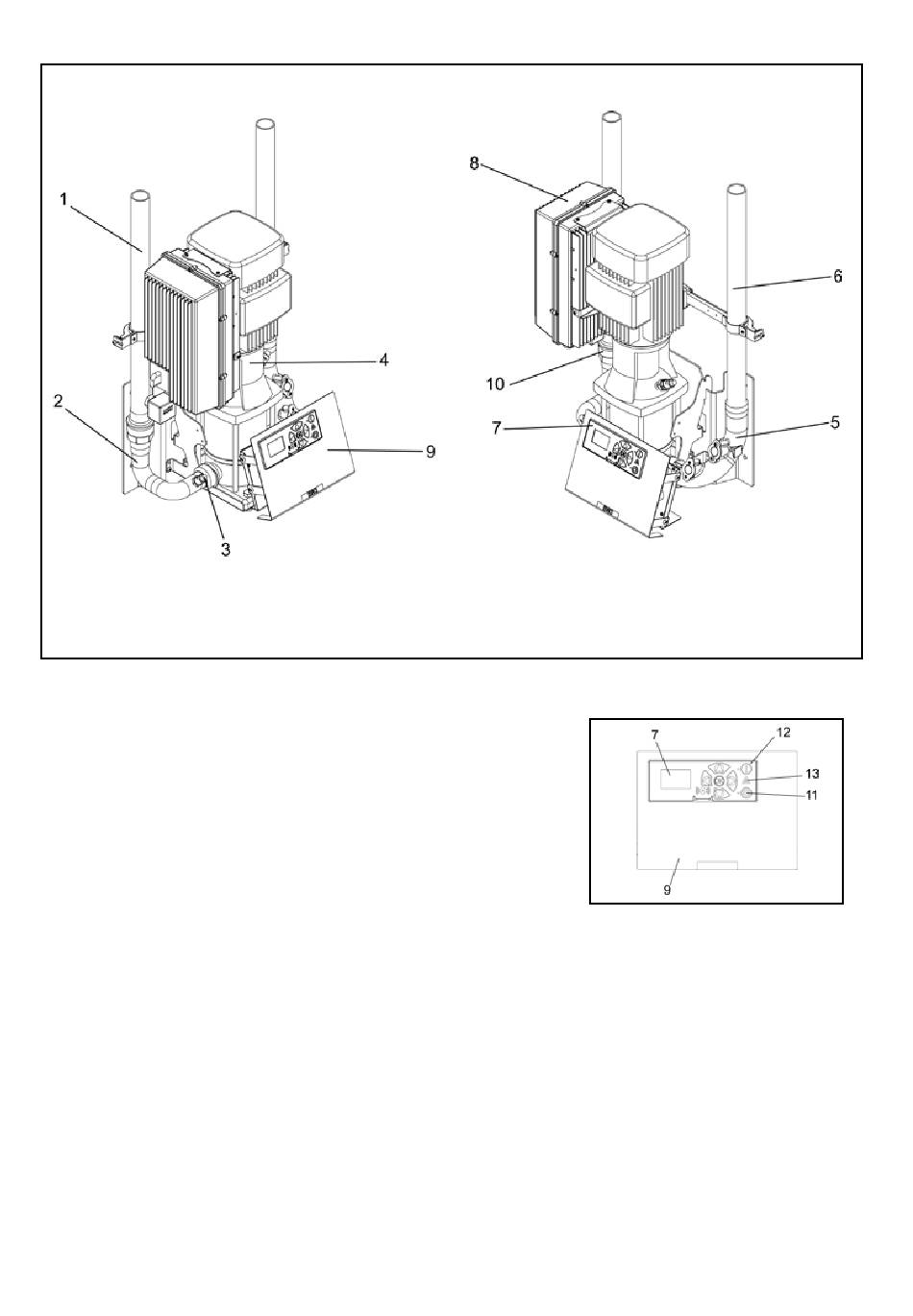

1.1 Booster BW3
(Fig. 4).
1. Water inlet
2. Manifold inlet
3. Trigger sensor, flow sensor
4. Pump
5. Manifold outlet
6. Outlet pipe
7. Display
8. El-box
9. Operation panel
10. Pressure sensor (Outlet)
11. • O Pushbutton.Stop
12. • I Pushbutton.Start
13. • Δ Lamp. Alight by error
4
Fig. 4
110001495
110001496
