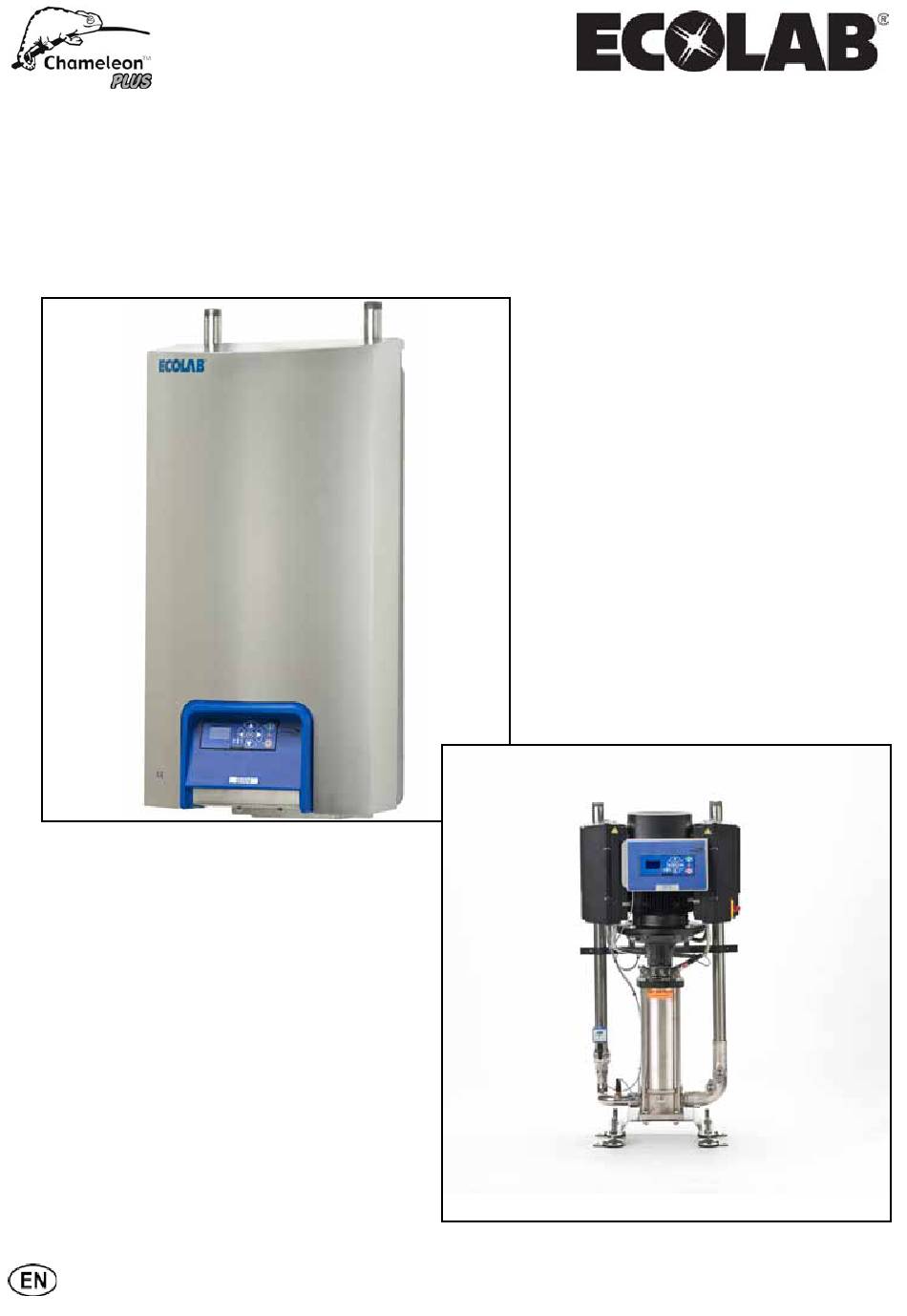

- Page 1 Booster Advanced / Professional BW3 - BW4 - BW7 BF3 - BF4 - BF8 Service Manual ............1 - 25...
-
Page 2: Table Of Contents
Content EN Description ......................3 1.1 Layout Professional Wall Booster BW3 ............4 1.2 Operation Diagrams Professional Wall Booster BW3 ........5 1.3 Layout Wall Booster BW4 - BW7 ..............6 1.4 Operation Diagrams Wall Booster BW4 - BW7 ..........7 1.5 Layout Floor Booster BF3 - BF4 - BF8 ............8 1.6 Operation Diagrams Floor Booster BF3 - BF4 - BF8 ........9 Maintenance .......................10 2.1 Filter ......................10... -
Page 3: Description
1. Description The Booster in the Chameleon The Booster is fitted with a fre- Plus range is a completely functio- quency controlled pump which en- ning pumping station that supplies sures a constant working pressure pressurised water to connected independent of usage pattern. satellite hygiene stations. -
Page 4: Layout Professional Wall Booster Bw3
Fig. 3 110001495 1.1 Booster BW3 (Fig. 4). 1. Water inlet 2. Manifold inlet 3. Trigger sensor, flow sensor 4. Pump 5. Manifold outlet 6. Outlet pipe Fig. 4 7. Display 110001496 8. El-box 9. Operation panel 10. Pressure sensor (Outlet) 11. -
Page 5: Operation Diagrams Professional Wall Booster Bw3
1.2 Operating Diagrams acc. ISO14617 BW3 Booster Ball valve. Filter. FST. Flowsensor and -trigger. Check valve. Pressure sensor. Temperature sensor. Centrifugal pump. Outlet. Water inlet. SN : Socket no. 0627268... -
Page 6: Layout Wall Booster Bw4 - Bw7
Fig. 5 110001497 1.3 Advanced Booster BW4 - BW7 (Fig. 5). 1. Water inlet 2. Manifold inlet 3. Trigger sensor, flow sensor 4. Pump 5. Manifold outlet 6. Outlet pipe 7. Display 8. El- box ( BW4) 8a. Inverter box Fig. -
Page 7: Operation Diagrams Wall Booster Bw4 - Bw7
1.4 Operating Diagrams acc. ISO14617 Advanced Booster BW4 - BW7 Ball valve. Filter. FST. Flowsensor and -trigger. Check valve. Pressure sensor. Temperature sensor. Centrifugal pump. Outlet. Water inlet. SN : Socket no. 0627269... -
Page 8: Layout Floor Booster Bf3 - Bf4 - Bf8
Fig. 7 110001499 1.5 Advanced Booster BF3 - BF4 - BF8 (Fig. 6). 1. Water inlet 2. Manifold inlet 3. Trigger sensor, flow sensor 4. Pump 5. Manifold outlet 6. Outlet pipe 7. Display 8. El- box ( BF3 - BF4) Fig. -
Page 9: Operation Diagrams Floor Booster Bf3 - Bf4 - Bf8
1.6 Operating Diagrams acc. ISO14617 Advanced Booster BF3 - BF4 - BF8 Ball valve. Filter. FST. Flowsensor and -trigger. Check valve. Pressure sensor. Temperature sensor. Centrifugal pump. Outlet. Water inlet. SN : Socket no. 0627269... -
Page 10: Maintenance
2.2 Before a longer 2. Maintenance production stop If long production stops are The Booster unit is maintenance planned (more than 6 months) and free. However, we recommend the pump is drained, it is recom- cleaning the booster unit in con- mended that the pump is secured nection with the occasional clean- as follows:... -
Page 11: Service
(holidays etc) it might be necessary 5.2 Recycling and scrap- to bleed the piping system and the ping booster unit again. Recycle the wrapping and scrap the machine according to recom- 5. Service mendations from the local authori- ties. Service may only be carried out by authorized and qualified personnel. -
Page 12: Troubleshooting
6. Troubleshooting 6.1 The unit does not start Is there voltage Reconnect voltage to the unit? Is the ’Δ’ lamp Go to section 6.2 flashing? Go to setup→settings menu → Startup method, and set it to pressure Set unit back to Does the unit start Flow start in setup menu... -
Page 13: The "Δ"- Lamp On The Control Panel Is On
6.2 The "Δ"- lamp on the control panel is on Check the display for error messages Press ”0" wait for a few seconds and then press ”I” on the control panel to restart the system. Does the error Go to come back softwaremanual Start using the unit... -
Page 14: Recommended Spare Parts
7. Recommended spare parts The recommended spare parts are marked with * in the spare part manual. 8. Specifications Technical Data Booster/Main station. Advanced* Proff.** Water Unit. 3 (4 kW) 3 (4 kW) 4 (5.5 kW) 7 (10 kW)** 8 (11 kW)* Max. -
Page 15: Electric Diagram
9. Electric diagram 9. Electric diagram 3/PE 400V/ 27A (Nom) - Page 16 3/PE 400V/ 27A (Nom)
-
Page 17: Pump Curve
10. Pump curve Pumpecurve CRN3‐9 (4.0 ‐ 5.5kW) BF/BW4 (5.5 kW) @ 4 bar supply BW3 (4.0 kW) @ 4 bar supply BF3 (4.0 kW) @ 4 bar supply Flow [l/min] Pumpecurve CRN5-9+ (10kW) BW7+ (10 kW) @ 2 bar supply Flow [l/min] 1100000455... - Page 18 Pumpcurve CRN5-14 (11kW) BF8 (11kW) @ 4 bar supply Flow [l/min] 1100000455...
-
Page 19: Declaration Of Conformity
11. Declaration of Conformity BF3, BF4, BF8, BW3, BW4, BW7 Declaration of Conformity Konformitätserklärung Déclaration de Conformité Dichiarazione di Conformità Declaración de Conformidad Declaração de Conformidade Δήλωση Συμμόρφωσης Overeenkomstigheidsverklaring Försäkran om överensstämmelse Vaatimustenmukaisuusvakuutus Overensstemmelseserklæring Deklaracja zgodności Декларация... - Page 20 Declaration of Conformity Konformitätserklärung We Nilfisk-ALTO, declare under our sole responsibility that the Nilfisk-ALTO, als alleinverantwortlich, erklären hiermit, dass: BF3+, products BF3+, BF4+, BF8+, BW3+, BW4+,BW7+, to which this BF4+, BF8+, BW3+, BW4+,BW7+, in Übereinstimmung mit den declaration relates, are in conformity with these Council directives Richtlinien zur Angleichung der Rechtsvorschriften der Mitgliedstaaten on the approximation of the laws of the EC menber states: ist:...
- Page 21 Δήλωση Συμμόρφωσης Overeenkomstigheidsverklaring Εμείς η Nilfisk-ALTO, δηλώνουμε υπό την αποκλειστική μας ευθύνη Wij, Nilfisk-ALTO, verklaren geheel onder eigen verantwoordelijkheid dat ότι τα προϊόντα BF3+, BF4+, BF8+, BW3+, BW4+, BW7+, Με τον de producten BF3+, BF4+, BF8+, BW3+, BW4+, BW7+, waarop deze οποίο...
- Page 22 Декларация о соответствии Megfelelőségi nyilatkozat Мы, Nilfisk-ALTO, принимая на себя всю ответственность, Mi, a Nilfisk-ALTO, kizárólagos felelősségünk tudatában kijelentjük, hogy заявляем, , что продукты Усовершенствованная BF3+, BF4+, a BF3+, BF4+, BF8+, BW3+, BW4+, BW7+, Amelyekre ez a nyilatkozat BF8+, BW3+, BW4+, BW7+, которых касается настоящая vonatkozik, megfelelnek az EU tagállamok törvényi rendelkezéseinek декларация, соответствуют...
- Page 23 Декларация за съответствие Prohlášení o shodě Ние, фирма Nilfisk-ALTO, заявяваме с пълна отговорност , че My firma Nilfisk-ALTO prohlašujeme na svou plnou odpovědnost, že продуктите BF3+, BF4+, BF8+, BW3+, BW4+, BW7+, за които се výrobky BF3+, BF4+, BF8+, BW3+, BW4+, BW7+, na něž se toto отнася...
- Page 24 Свідчення про відповідність вимогам Paziņojums par atbilstību prasībām Компанія Nilfisk-ALTO заявляє про свою виключну відповідальні сть Sabiedrība NILFISK-ALTO ar pilnu atbildību dara zinā mu, ka за те, що продукти BF3+, B F4+, BF8+, BW3+, BW4+, BW7+, на які rodukti BF3+, BF4+, BF8+, BW3+, BW4+, BW7+, uz kuriem attiecas šis paziņojums, atbilst šādām Padomes direktīvām par поширюється...
- Page 26 © 2005 All rights reserved Ecolab GmbH & Co. OHG P.O. Box 13 04 06 D-40554 Düsseldorf www.ecolab.com Tel.: +49 211 98 93 203 - Fax: +49 211 98 93 223 Printed in Denmark...
