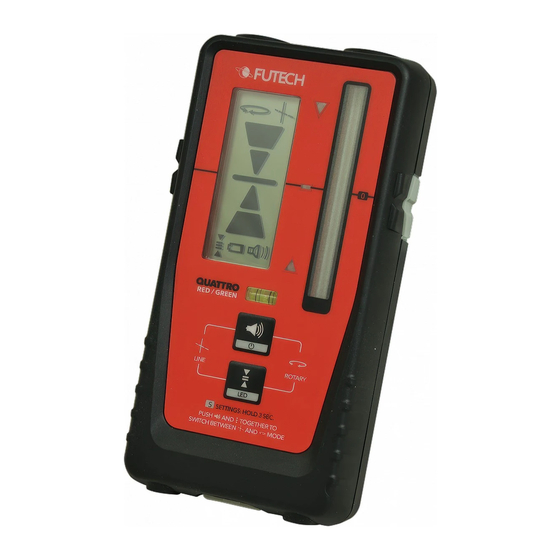

- Page 1 QUATTRO MANUAL 150.40.A...
- Page 2 Magnet LED indicator (orange) LED indicator (green) LED indicator (red) Laser-sensitive area Marking notch Clamp On/Off Volume / Operating mode 10. Accuracy / LED activation 11. Bubble vial 12. Display 13. Type plate with serial number 14. Fixing thread for the clamp 15.
- Page 3 ∙ Change tha battery if the batterysym- least 3 seconds. defect, have the appliance examined bol (22) is displayed. and repaired by Futech. ∙ Open the battery cover (16) Operating ∙ In all your queries and spare part or- ∙ Remove tha battery and insert a new ∙...
- Page 4 TECHNICAL SPECIFICATIONS suitable lasers red & green / rotating & cross-line maximum range cross-line: 60m rotating: 200m height of reception field 60mm front indicator lcd + led reat indicator distance to laser indicator (in mm) suitable laser frequencies 5-10khz (in receiver mode) accuracy 1-2-3 mm protection...
