PARA DS
MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the PARA DS and is the answer not in the manual?

Questions and answers

Related Manuals for Futech PARA DS

Summary of Contents for Futech PARA DS

  • Page 1 PARA DS MANUAL...

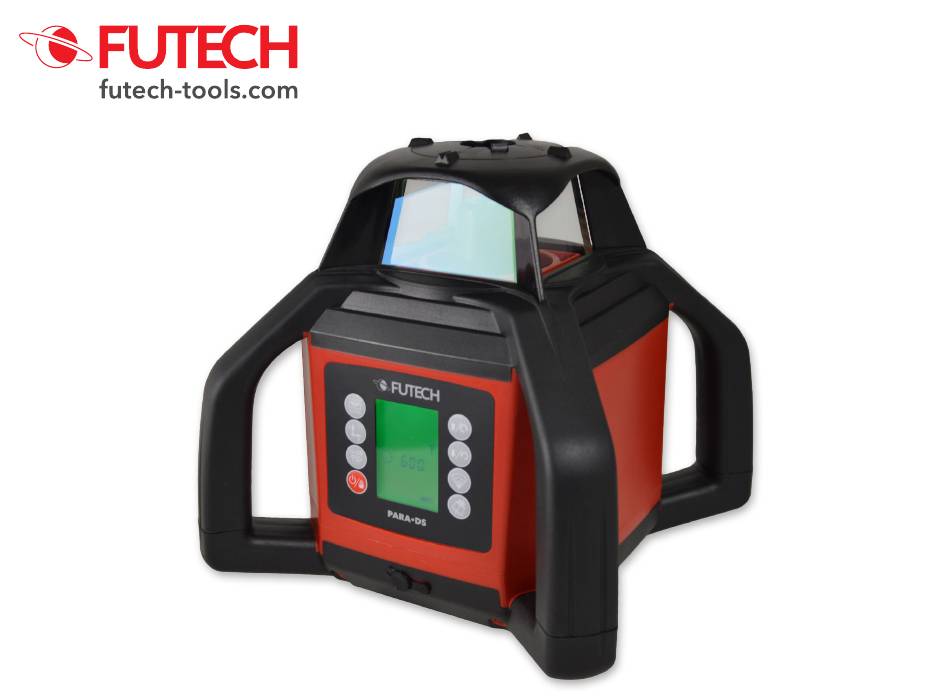

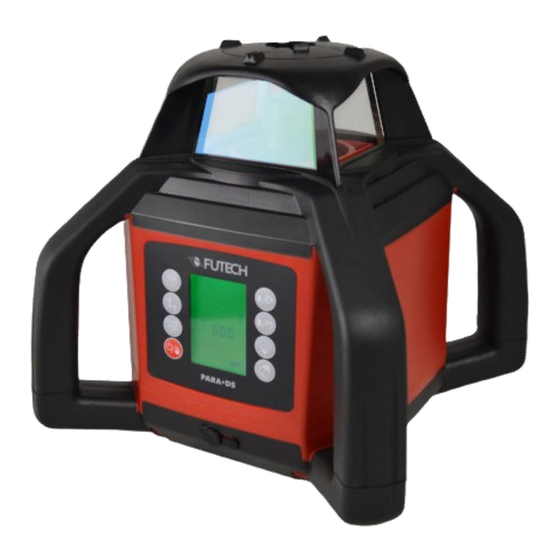

  • Page 2 Congratulations! On choosing this FUTECH instrument. FUTECH provides measuring instruments of precision and quality. Contributions from professional end users enable us to offer innovative, easy-to-use equipment. PARA DS Professional Rotation laser with ultra visible laser beams. Automatic levelling using electronic stabilizers . This system enables greater stability and faster levelling.
  • Page 3 PARA DS MANUAL Parts of the housing X and Y axis marking Laser exit Receiving points for remote control Control panel Power connection 5/8” threaded tripod adaptor fitting Plumb point LCD Display Buttons control Panel and laser remote control On/off button / Manual fucntion 10.
  • Page 4 First time usage Remove all protection foile Fully charge the device, only with the supplied charger. Turn the device on (8), pay attention that the device isn’t too tilted (maximum 5°). If the device is tilted more then 5°, the laser beam will keep blinking and the lamp of the manual mode will go on and off.
  • Page 5 PARA DS MANUAL Slope The instruments shows a 100% horizontal laser beam by default. When needed, it is also capable to project a beam with a slope. - Set a digital slope Install the device horizontally flat as explained under “Horizontal alignment”.
  • Page 6 Lead point Thanks to the lead point (7) on the top and at the bottom, this device can also be used to bring a plumb lead point of the floor to the ceiling, or the other way round. Mark the starting point, place the laser beam exactly on this and sign the opposite lead point accordingly.
  • Page 7 PARA DS MANUAL Tilt functie The hold function avoids measuring errors in case the instrument moved uninten- tionally after it was fully set up (e.g. a gurt of wind, unstable floor, an external manip- ulation…). In those cases, the hold function will automatically stop spinning after the instrument moved.

  • Page 8: Limits Of Use

    ∙ Use of products with obviously recog- in hazardous areas, or in close proximity ∙ To inform FUTECH immediately if the nizable damages or defects. to electrical installations or similar sit- product and the application becomes ∙...
  • Page 9 PARA DS MANUAL HAZARDS OF USE by lightning. international rules and regulations are WARNINGS ∙ Do not use the product in a thunder- observed. Before transportation or ∙ The person responsible for the product storm. shipping contact your local passenger must ensure that it is used in accord- ∙...

  • Page 10: Laser Classification

    ACCURACY CONTROL environmental contamination. ∙ special warning signs in the laser By disposing of the product irrespon- working area Monitor horizontal levelling sibly you may enable unauthorized if used and operated as defined in this user ∙ Choose a room ±10 m long persons to use it in contravention of manual due to the low eye hazard level.

  • Page 11: Technical Specifications

    PARA DS MANUAL TECHNICAL SPECIFICATIONS If your instrument does not reach the re- quired tolerance, it should be returned accuracy ± 1mm / 10m to your service centre or to your reseller levelling range ± 5° for service. Repairs carried out by unau-...
