- Page 1 QUATRO MANUAL 150.40.A...
-
Page 2: Important Safety Instructions

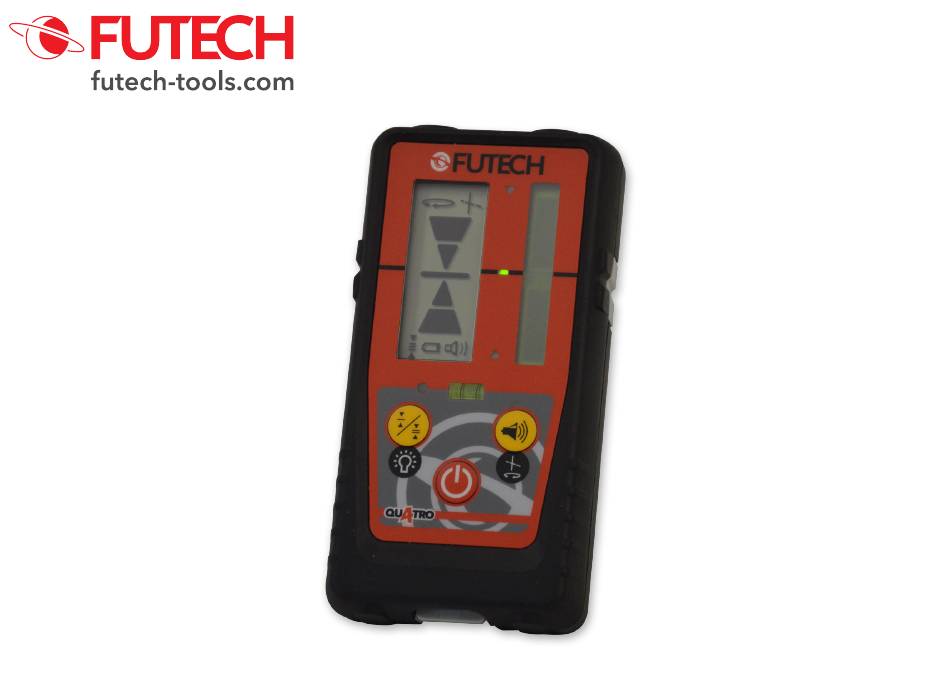

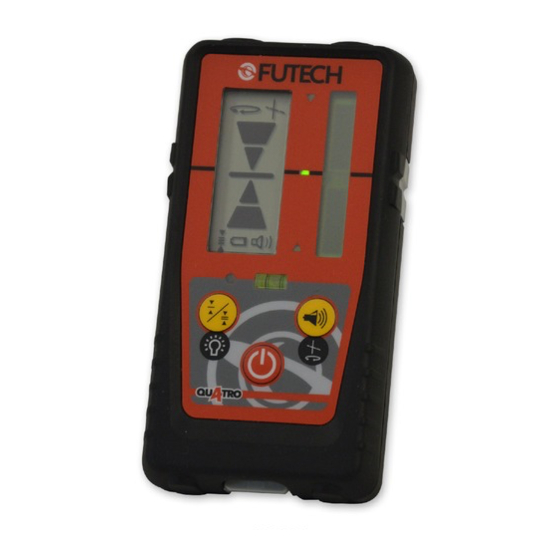

Congratulations! On choosing this FUTECH instrument. FUTECH provides measuring instruments of precision and quality. Contributions from professional end users enable us to offer innovative, easy-to-use equipment. QUATRO Laser receiver IMPORTANT - SAFETY INSTRUCTIONS ! Read the instructions for use carefully before using the instrument. Keep them in a safe place for consultation when necessary. - Page 3 QUATRO MANUAL Magnet LED indicator (orange) LED indicator (green) LED indicator (red) Laser-sensitive area Marking notch Clamp On/Off Volume / Operating mode 10. Accuracy / LED activation 11. Bubble vial 12. Display 13. Type plate with serial number 14. Fixing thread for the clamp 15.
- Page 4 Depending on the selected operating mode, the receiver detects either the laser be- ams (red and green) of rotating lasers or the (horizontal or vertical) laser lines of line lasers with hand-held receiver function. Any other use than the described above shall be deemed to be improper use.
- Page 5 In this case our warranty expires. ∙ In the unlikely event of a failure or defect, have the appliance examined and repai- red by Futech. ∙ In all your queries and spare part orders, always quote the serialnumber (see type...
-
Page 6: Limits Of Use
∙ Use of products with obviously recog- in hazardous areas, or in close proximity ∙ To inform FUTECH immediately if the nizable damages or defects. to electrical installations or similar sit- product and the application becomes ∙... - Page 7 QUATRO MANUAL HAZARDS OF USE by lightning. international rules and regulations are WARNINGS ∙ Do not use the product in a thunder- observed. Before transportation or ∙ The person responsible for the product storm. shipping contact your local passenger must ensure that it is used in accord- ∙...
-
Page 8: Declaration Of Conformity
environmental contamination. By disposing of the product irrespon- sibly you may enable unauthorized persons to use it in contravention of the regulations, exposing themselves and third parties to the risk of severe injury and rendering the environment liable to contamination. ∙... -
Page 9: Technical Specifications
QUATRO MANUAL TECHNICAL SPECIFICATIONS suitable lasers red & green / rotating & cross-line maximum range cross-line: 60m rotating: 200m height of reception field 60mm front indicator lcd + led reat indicator distance to laser indicator (in mm) suitable laser frequencies... - Page 10 Notes ................................... .
- Page 11 QUATRO MANUAL Notes ...................................
