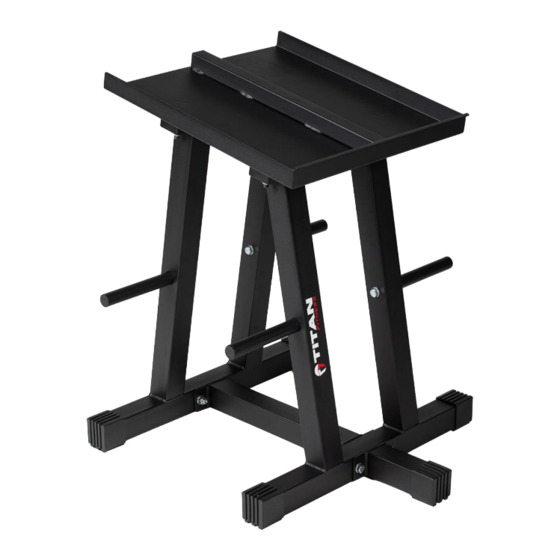

- Page 1 DUMBBELL STAND AND PLATE TREE DBSTNDv3 420044 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives of others depend on it!
- Page 2 PARTS DIAGRAM / EXPLODED VIEW DESCRIPTION DESCRIPTION REAR UPRIGHT FRAME END CAMP 25*1.5 FRONT UPRIGHT FRAME END CAP 32*32*1.5 CROSS FRAME (10) END CAP 50*50*1.5 TRAY (11) HEX BOLT M10*70 PLATE BAR HOLDER (12) HEX BOLT M10*20 REINFORCEMENT FRAME (13) M10 NUT END CAP 50*50 (14)
- Page 3 ASSEMBLY INSTRUCTIONS STEP 1 Assemble the FRAME (1, 2, 3, 6) using HEX BOLT M10*70 (11), NUT M10 (13), and FLAT WASHER 11*20*2 (14) as shown. STEP 2 Install TRAY (4) to the assembly of the UPRIGHT FRAME using NUNT M10 (13) and FLAT WASHER 11*20*2 (14) as shown.
- Page 4 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages,...
- Page 5 NEED HELP? CONTACT US FIRST. 1-888-410-1503 info@titan.fitness www.titan.fitness © 2021 Titan Brands...
