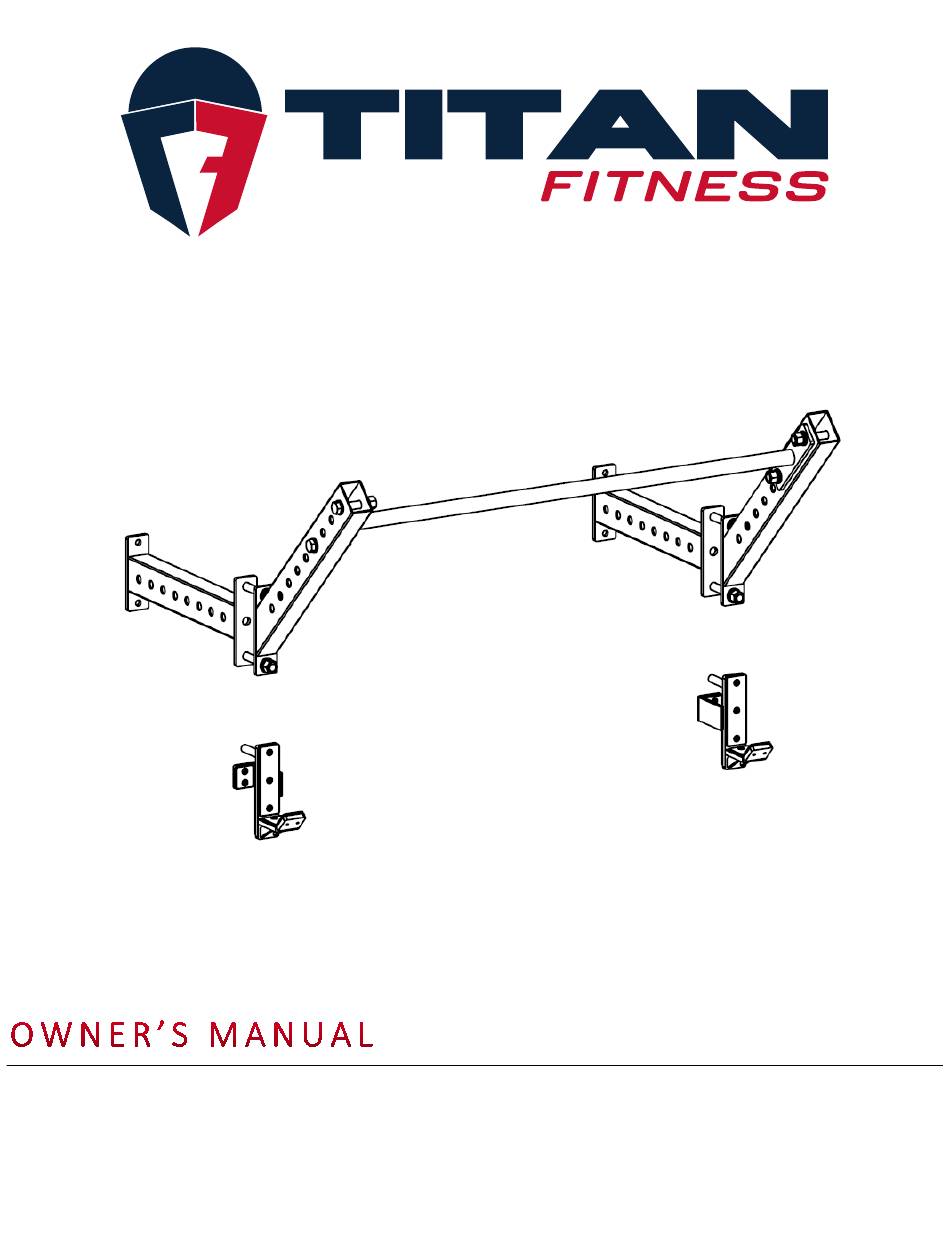

- Page 1 SPACE SAVINGS POWER RACK FOR 12”, 18”, AND 24” DEPTHS MPN(s): SSRT3SHUP-SSRT3...
- Page 2 KEY BOX DESCRIPTION DESCRIPTION Connecting Frame Front Plastic Plate Diagonal Brace Flat Washer Φ17*Φ30*3 Spring Washer Φ16 Pull Up Bar (10) Left J-Hook (11) Nut M16 Right J-Hook (12) Hex Bolt M16*85 Short Plastic Plate (13) Hex Bolt M16*120 Long Plastic Plate (14) Hex Bolt M6*10...
- Page 3 Step 1 the Connecting Frame (1) , Diagonal Brace (2) and Upright Frame (15) using Flat Washer Φ17*Φ30*3 Assemble (9) , Spring Washer Φ16 (10) Nut M16 (11) and Hex Bolt M16*120 (13).
- Page 4 Step 2 Connect Pull Up Bar (3) and Diagonal Brace (2),using Flat Washer Φ17*Φ30*3 (9) , Spring Washer Φ16 (10) Nut M16 (11) and Hex Bolt M16*85 (12). Please tighten all the bolts.
- Page 5 Step 3 Install J-HOOK (4&5) on the Upright Frame (15).
- Page 6 This concludes the _____ Owner’s Manual. If applicable to your product, make sure to tighten all nut-and-bolt combinations before use. Enjoy! DISCLAIMER This equipment must be used with care by capable and competent individuals under supervision, if necessary. The use of any fitness equipment, including this one, involves the potential risk of injury. You accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages, rights of action, or causes of action, present or future, whether the...
