• Parity:None
• Flow control:RTS/CTS

3.2. Connecting through USB port

Make sure the computer has special USB driver installed (available from www.javad.com) before
continuing. To configure, or maintain HPT901BT using USB port, you need to connect the modem and a
computer using special cable Access Data-Ser Cable, USB/DB15/SAE (1,8m) (p/n 14-578123-02).
1. Download the zip-archive with USB driver from www.javad.com;
2. Extract the archive to the new empty folder;
3. Connect the USB port of the computer to the data port of the modem at the switched off power
supply by using of a cable.
4. Turn on your computer.
5. Power HPT901BT.
6. Widows will detect USB driver automatically. Otherwise it will ask to specify driver location.
Select the folder with extracted file.
Default parameters for USB Bridge port are:
• Baud Rate:115200
• Data Bits:8
• Stop Bits:1
• Parity:None
• Flow control:RTS/CTS

3.3. Connecting through Bluetooth

Note:
Do not forget to attach the Bluetooth
modem.
The HPT901BT modem contains Bluetooth
the modem and any other external device that supports Bluetooth
IPAQ, or a computer with USB-to-Bluetooth
HPT901BT and external device connection procedure varies slightly depending on the type of external
device used. In general, the connection procedure is as follows:
www.javad.com

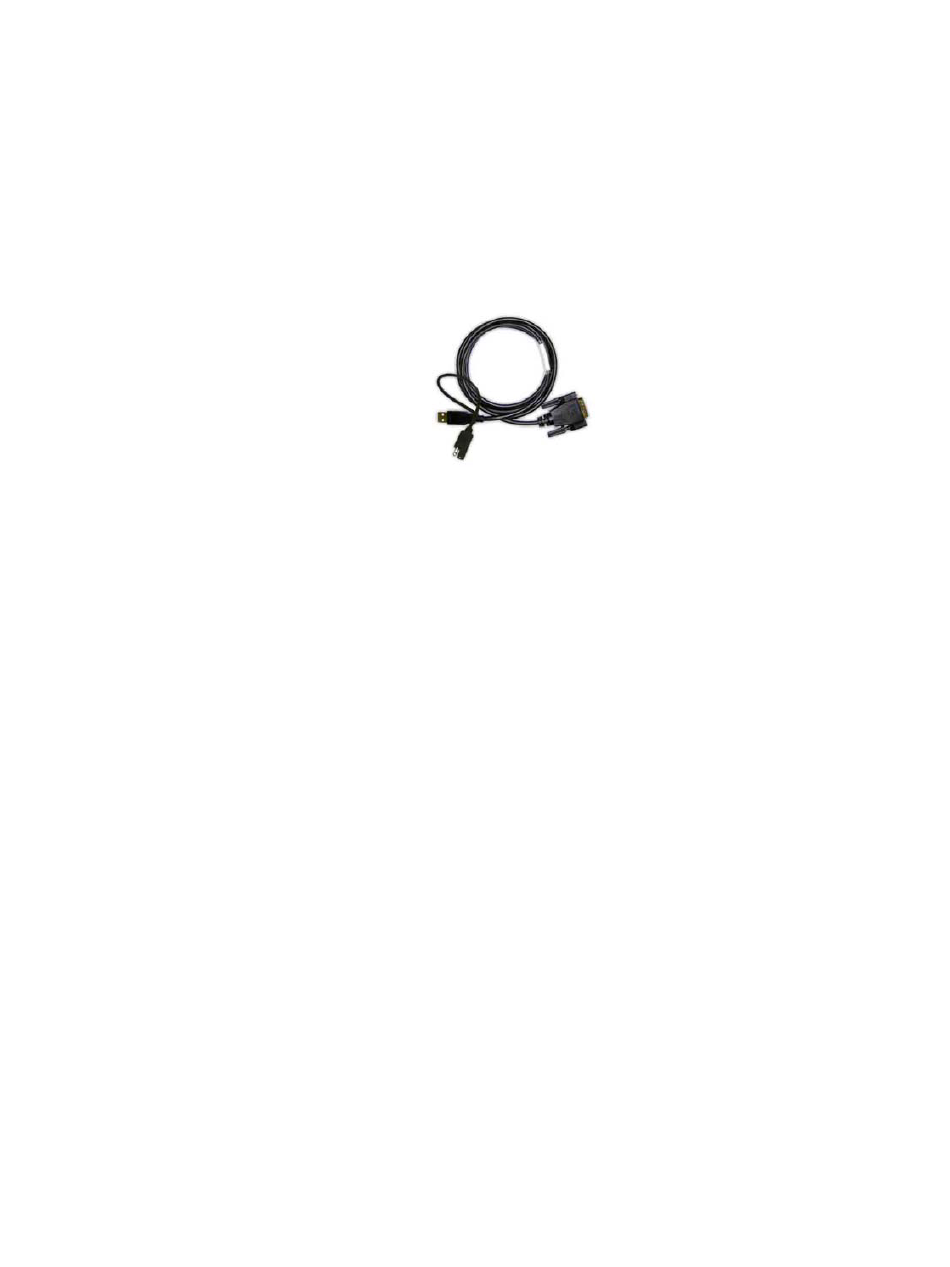

Figure 3. Cable p/n 14-578123-01
®
®
antenna to Bluetooth antenna connector on the back panel of the
®
wireless technology that allows synchronization between
®
adapter or PCMCA-to-Bluetooth
Connecting HPT901BT and Computer
®
wireless technology; for example, an
®
adapter installed, etc.
Configuration
