For every cables we recommend to bind the bunch, we recommend for this use:
– Length of the bunch (combination of power supply and data cables) can be maxi-
mum 1.5 m. If the length of data cables exceeds 1.5 m or in the event of, the cable
leads towards the switch – board. We recommend installing over – voltage protec-
tors (surge suppressors).
– With data cables they mustn't carry cables with reticular tension

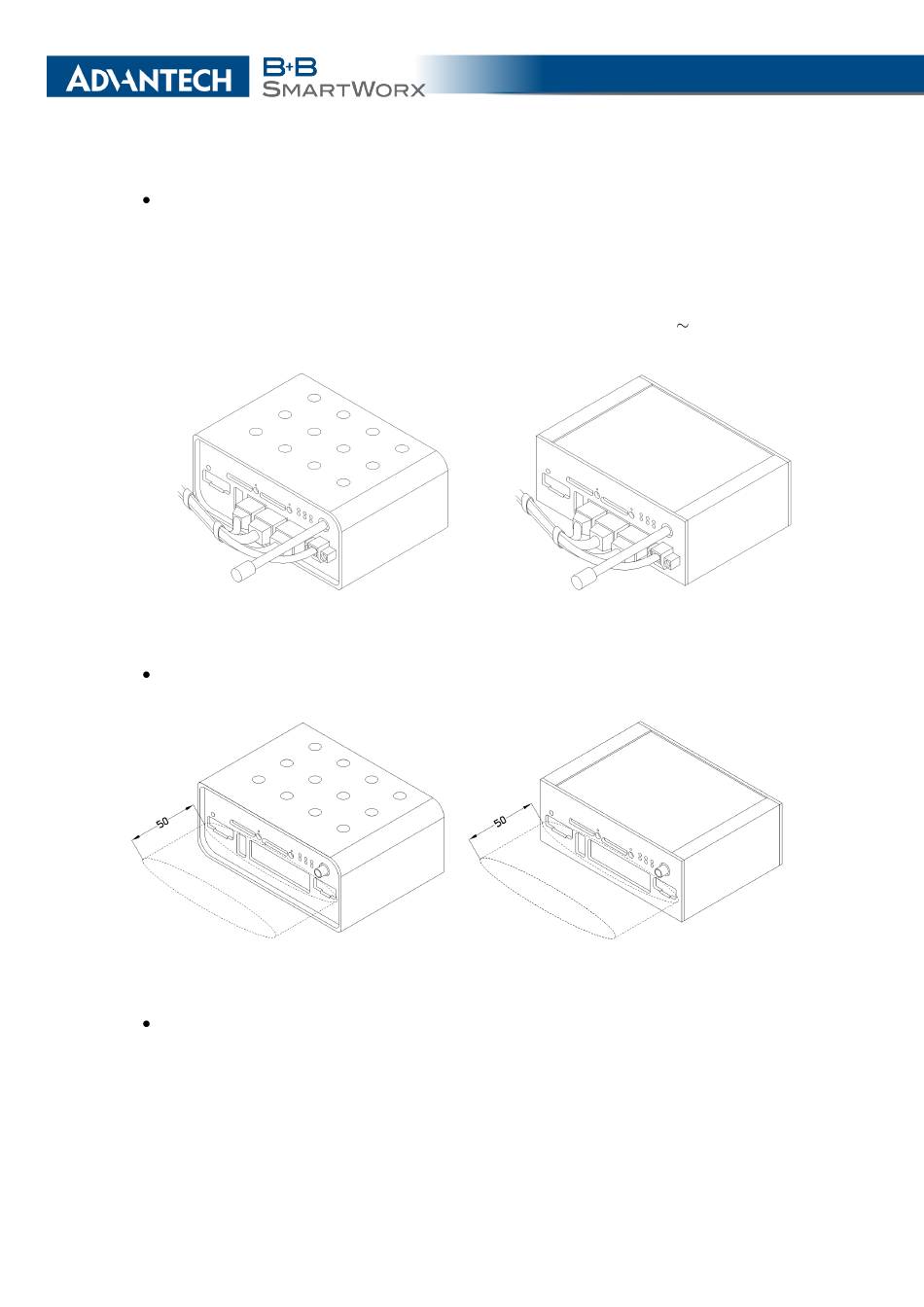

Figure 16: Cable routing (plastic)
Sufficient space must be left in front of individual connectors for handling of cables,
Figure 18: Space in front of connectors (plastic)
For correct function of the router we recommend to use in the switch-board earth-bonding
distribution frame for grounding of power supply of router, data cables and antenna.
5. ROUTER DESIGN
Figure 17: Cable routing (metal)
Figure 19: Space in front of connectors (metal)
11
230 V/50 Hz.
