MIB3 Entry - Composition with 8.25inch monitor
MIB3 Entry - with 8.25inch monitor
MIB3 Entry with 8.25inch monitor
Video-inserter for front- and rear-view camera
Product features
Video-inserter for factory-infotainment systems
1 CVBS Input for rear-view camera
1 CVBS Input for front camera
2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Automatic front camera switching after reverse gear for 10 seconds
Activatable parking guide lines for rear-view camera (not available for all vehicles)
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC and PAL compatible
Version 15.07.2022
Video-inserter
CI-RL4-MIB3-E
Compatible with
VW
vehicles with
Seat
vehicles with
Skoda
vehicles with
and two additional video sources
HW CAM(V100) / (V11.3)
CI-RL4-MIB3-E
Advertisement
Table of Contents
Related Manuals for v.link CI-RL4-MIB3-E
Summary of Contents for v.link CI-RL4-MIB3-E

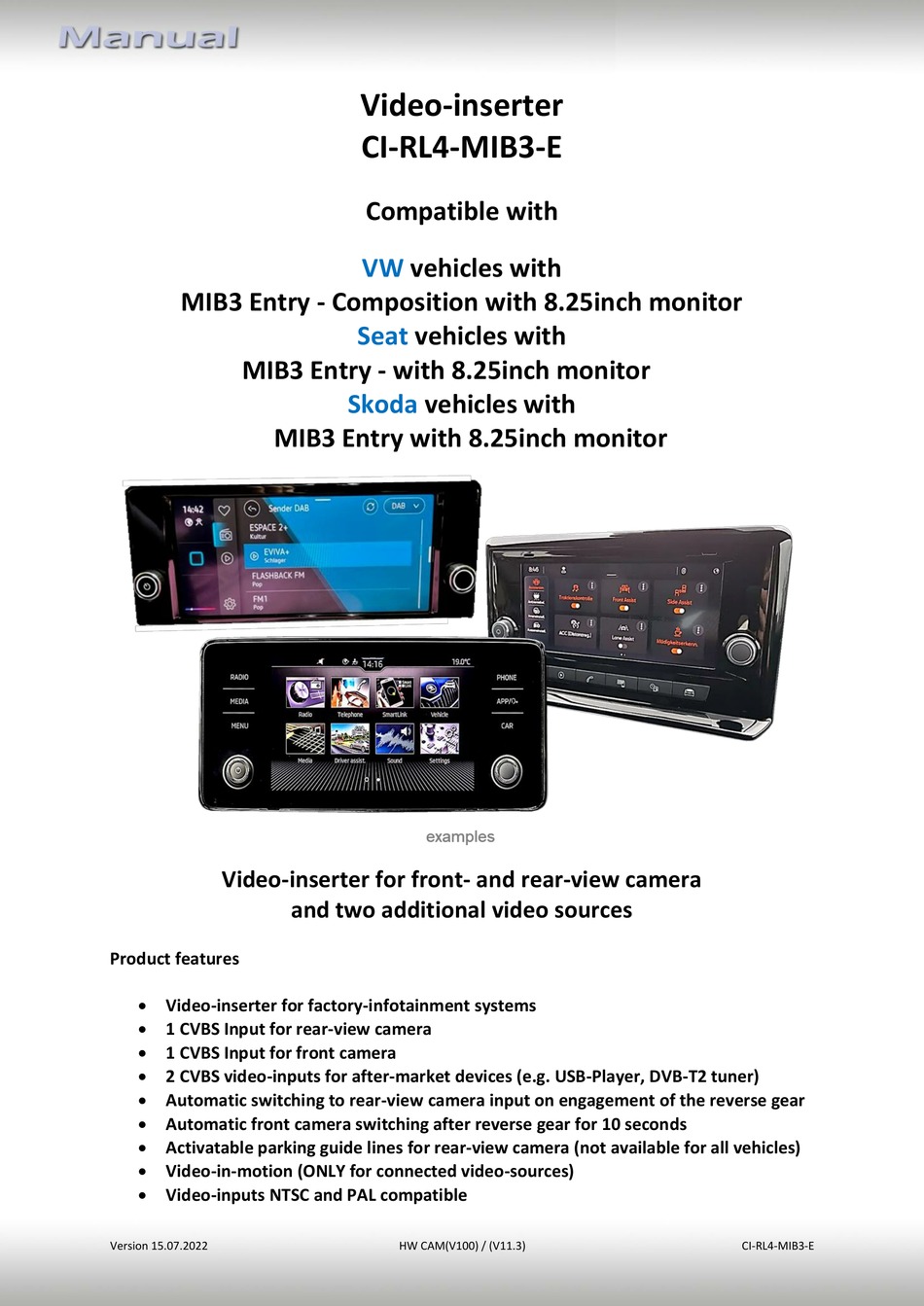

- Page 1 Video-inserter CI-RL4-MIB3-E Compatible with vehicles with MIB3 Entry - Composition with 8.25inch monitor Seat vehicles with MIB3 Entry - with 8.25inch monitor Skoda vehicles with MIB3 Entry with 8.25inch monitor Video-inserter for front- and rear-view camera and two additional video sources Product features ...
-
