v.LiNK Video-inserter
VL2-LR14-OPS
Compatible with
Land Rover vehicles
with touch-screen infotainment version 3
or
touch-screen infotainment 3.1 with 8inch 16:9 monitor
with touch-screen menu 3
Jaguar Fahrzeuge
with touch-screen infotainment version 3 and version 3.1
Video-inserter with 2 video inputs + rear-view camera input
Product features
Video-inserter for factory-infotainment systems
1 CVBS Rear-view camera video-input
2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
Built-in audio-switch (no audio-insertion)
Automatic switching to rear-view camera input on engagement of the reverse gear
Activatable parking guide lines for rear-view camera (not available for all vehicles)
Support of the factory optical park-system display (OPS)
Video-in-motion (ONLY for connected video-sources)
Video-inputs PAL and NTSC compatible
Version 17.10.2019
HW: LVDS(50)
VL2-LR14-OPS
Advertisement
Table of Contents
Related Manuals for v.link VL2-LR14-OPS
Summary of Contents for v.link VL2-LR14-OPS

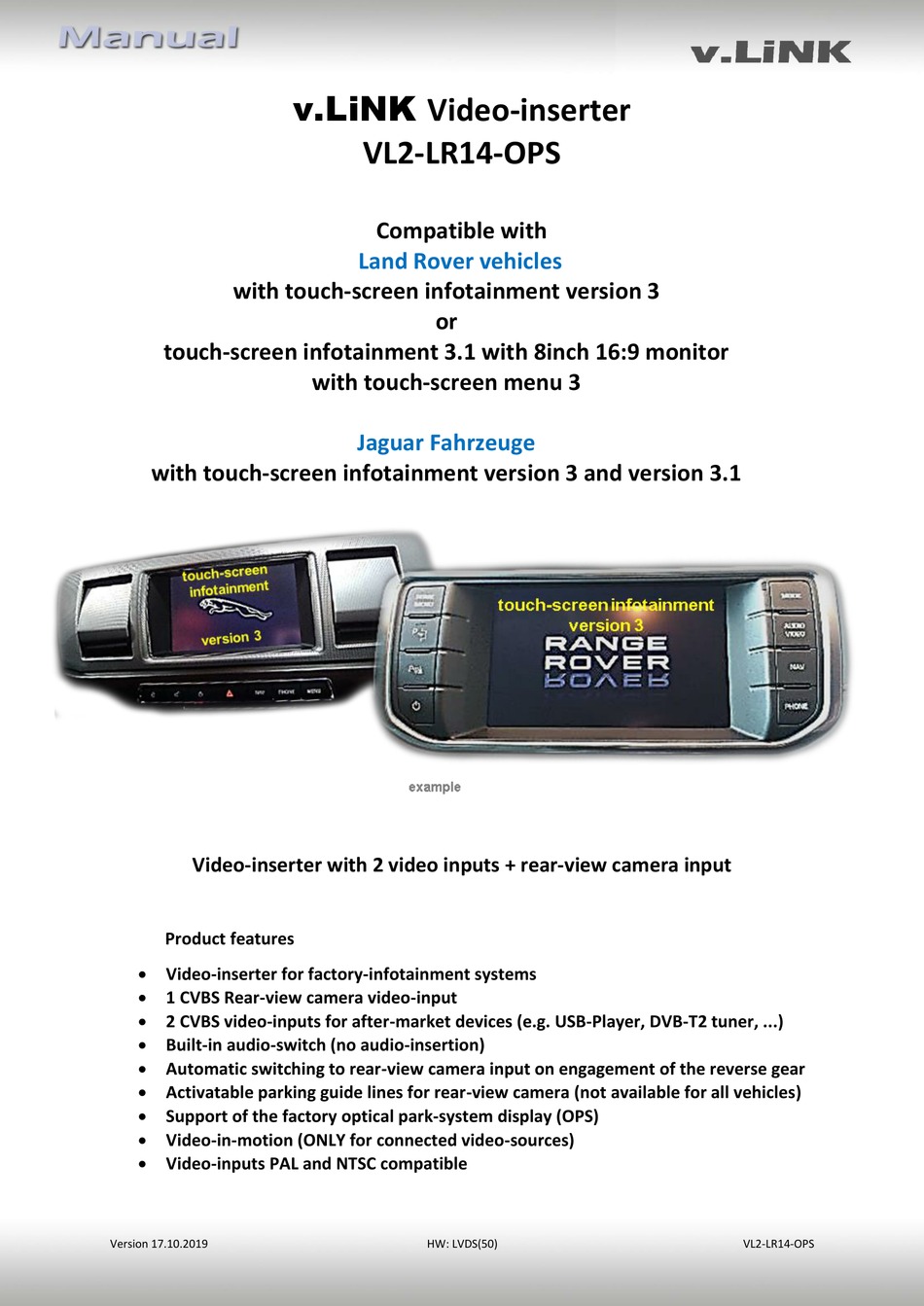

- Page 1 Video-inserter VL2-LR14-OPS Compatible with Land Rover vehicles with touch-screen infotainment version 3 touch-screen infotainment 3.1 with 8inch 16:9 monitor with touch-screen menu 3 Jaguar Fahrzeuge with touch-screen infotainment version 3 and version 3.1 Video-inserter with 2 video inputs + rear-view camera input Product features ...
-
Page 2: Table Of Contents
Picture settings and guide lines 3. Video interface operation 3.1. By infotainment button 3.2. By external keypad 3.3. By white wire of the 6pin cable 4. Specifications 5. FAQ – Trouble Shooting-Interface functions 6. Technical support Version 17.10.2019 HW: LVDS(50) VL2-LR14-OPS... -
Page 3: Prior To Installation
Read the manual prior to installation. Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 17.10.2019 HW: LVDS(50) VL2-LR14-OPS... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required. Guide lines Displayed guide lines are not available in all vehicles. Version 17.10.2019 HW: LVDS(50) VL2-LR14-OPS... -
Page 5: Boxes And Connectors
1.3.2. CAN-bus box The CAN box reads the vehicle’s digital signals out of the vehicle’s CAN-bus and converts them for the video interface. Version 17.10.2019 HW: LVDS(50) VL2-LR14-OPS... -
Page 6: Dip-Switch Settings - Interface (8Dip - Black)
If set to ON, the PDC car graphic will be shown on the display. If set to Off, the PDC car graphic will disappear. Note: Dip 1 und 4 are out of function and have to be set to OFF. Version 17.10.2019 HW: LVDS(50) VL2-LR14-OPS... -
Page 7: Installation
Place of installation – video interface and CAN-bus box The interface box and the CAN-bus box are prepared to be connected and installed behind the vehicle`s head unit. The daughter PCB is prepared to be connected and installed inside the head unit. Version 17.10.2019 HW: LVDS(50) VL2-LR14-OPS... -
Page 8: Connection Schema
2.2. Connection schema Version 17.10.2019 HW: LVDS(50) VL2-LR14-OPS... -
Page 9: Installation - Daughter Pcb
Turn around the head unit, carefully share the monitor part from the head unit housing, clip out and disconnect the original 50pin ribbon cable and lay the monitor part aside. Replace the mainboards original 3Torx screws against the 3 enclosed brass spacers (fix points for daughter PCB). Version 17.10.2019 HW: LVDS(50) VL2-LR14-OPS... -
Page 10: Connection - Daughter Pcb
With taking care of the previously supported save out-leading for the picture signal cable, stick together the monitor part and the head unit housing (cable tension recommended!). Finish by fixing the housing with the 4 original Torx screws. Version 17.10.2019 HW: LVDS(50) VL2-LR14-OPS... -
Page 11: Connection - Video-Interface To Power/Can
16pin Power / CAN cable’s male 16pin connector. Connect the 16pin Power / CAN cable’s opposite female 16pin connector to the head unit’s previously become free male 16pin connector. Version 17.10.2019 HW: LVDS(50) VL2-LR14-OPS... -
Page 12: Analogue Connection - Video-Interface
Note: The connection of the green wire (Reverse signal) will be described in chapter “After-market rear-view camera”. The white wire, can be used by +12V impulse to switch the enabled video sources, same as the keypad (see chapter “video interface-operation”). The grey wire remains unconnected. Version 17.10.2019 HW: LVDS(50) VL2-LR14-OPS... -
Page 13: Connection - Picture Signal Cable
2.7. Connection - picture signal cable Connect the female 20pin connector of the picture signal cable–coming from the head unit-to the male 20pin connector of the video interface. Version 17.10.2019 HW: LVDS(50) VL2-LR14-OPS... -
Page 14: Connection - Video Sources
Connect the rear-view camera’s male RCA to the video interface’s female RCA „Camera IN”. Connect the male RCAs of possibly existing video sources 1 and 2 to the video interface’s female RCAs „Video IN1“ and „Video IN2“. Version 17.10.2019 HW: LVDS(50) VL2-LR14-OPS... -
Page 15: Audio-Switch And Audio-Insertion
RCA “Audio OUT”. Connect the audio-RCA connectors of possibly existing AV-sources 1 and 2 to the female RCAs of the audio cable’s „Audio 1 IN“ und „Audio 2 IN“. Version 17.10.2019 HW: LVDS(50) VL2-LR14-OPS... -
Page 16: After-Market Rear-View Camera
„CAMERA IN“ while the reverse gear is engaged. Additionally, the +12V (max. 500mA) power supply for the rear-view camera can be taken from the green wire of the 6pin to 8pin cable. Version 17.10.2019 HW: LVDS(50) VL2-LR14-OPS... -
Page 17: Case 2: Can-Box Does Not Receive The Reverse Gear Signal
Note: If, due to a missing CAN communication, the 6pin to 8pin cable has been connected the analogue way instead of the Can box, the green wire’s connection has also to be done as shown in the picture above. Version 17.10.2019 HW: LVDS(50) VL2-LR14-OPS... -
Page 18: Connection - Video Interface To External Keypad
Connect the keypad’s female 4pin connector to the video-interface’s male 4pin connector. Note: Even if the switching through several video sources by the keypad mightn’t be required, the invisible connection and availability is strongly recommended. Version 17.10.2019 HW: LVDS(50) VL2-LR14-OPS... -
Page 19: Picture Settings And Guide Lines
Note: If there is no communication between interface and the vehicle`s CAN-bus (several vehicles aren’t compatible), the reverse gear guide-lines can`t be shown during the vehicle’s operation, even if they once appear after having switched the system to powerless! Version 17.10.2019 HW: LVDS(50) VL2-LR14-OPS... -
Page 20: Video Interface Operation
3.3. By white wire of the 6pin cable Alternatively or additionally to the factory infotainment buttons, the 6pin cable’s white wire can be used to switch the enabled inputs (with +5V or+12V impulse. Version 17.10.2019 HW: LVDS(50) VL2-LR14-OPS... -
Page 21: Specifications
0.7V with 75 Ohm impedance Temperature range -40°C to +85°C Dimensions video-box 157 x 21 x 100 mm (B x H x T) Dimensions CAN-box 72 x 22 x 43 mm (B x H x T) Version 17.10.2019 HW: LVDS(50) VL2-LR14-OPS... -
Page 22: Faq - Trouble Shooting-Interface Functions
Camera input picture fluorescent light which shines Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 17.10.2019 HW: LVDS(50) VL2-LR14-OPS... -
Page 23: Technical Support
Please note that direct technical support is only available for products purchased directly from NavLinkz GmbH. For products bought from other sources, contact your vendor for technical support. NavLinkz GmbH distribution/tech dealer-support Eurotec-Ring 39 D-47445 Moers +49 2841 949970 Email mail@navlinkz.de 10R-03 5384 Made in China Version 17.10.2019 HW: LVDS(50) VL2-LR14-OPS...
