Compatible with Opel vehicles with
Navi 900 intelliLink navigation system
with 8" touch monitor and Chevrolet vehicles
Video-inserter with 2 video + RGB + rear-view camera input and CAN control
Product features
Video-inserter for factory-navigation systems
2 video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, ...)
Built-in audio-switch (no audio-insertion)
Rear-view camera video-input
Automatic switching to rear-view camera input on engagement of the reverse gear
Activatable parking guide lines for rear-view camera (vehicle specific restrictions
possible)
RGB-input for after-market navigation
Video-in-motion (ONLY for connected video-sources)
Compatible with factory rear-view camera
Video-inputs PAL/NTSC compatible
Version 14.06.2017
v.LiNK Video-inserter
VL2-N902
with MyLink IO6 system
Advertisement
Table of Contents
Related Manuals for v.link VL2-N902
Summary of Contents for v.link VL2-N902

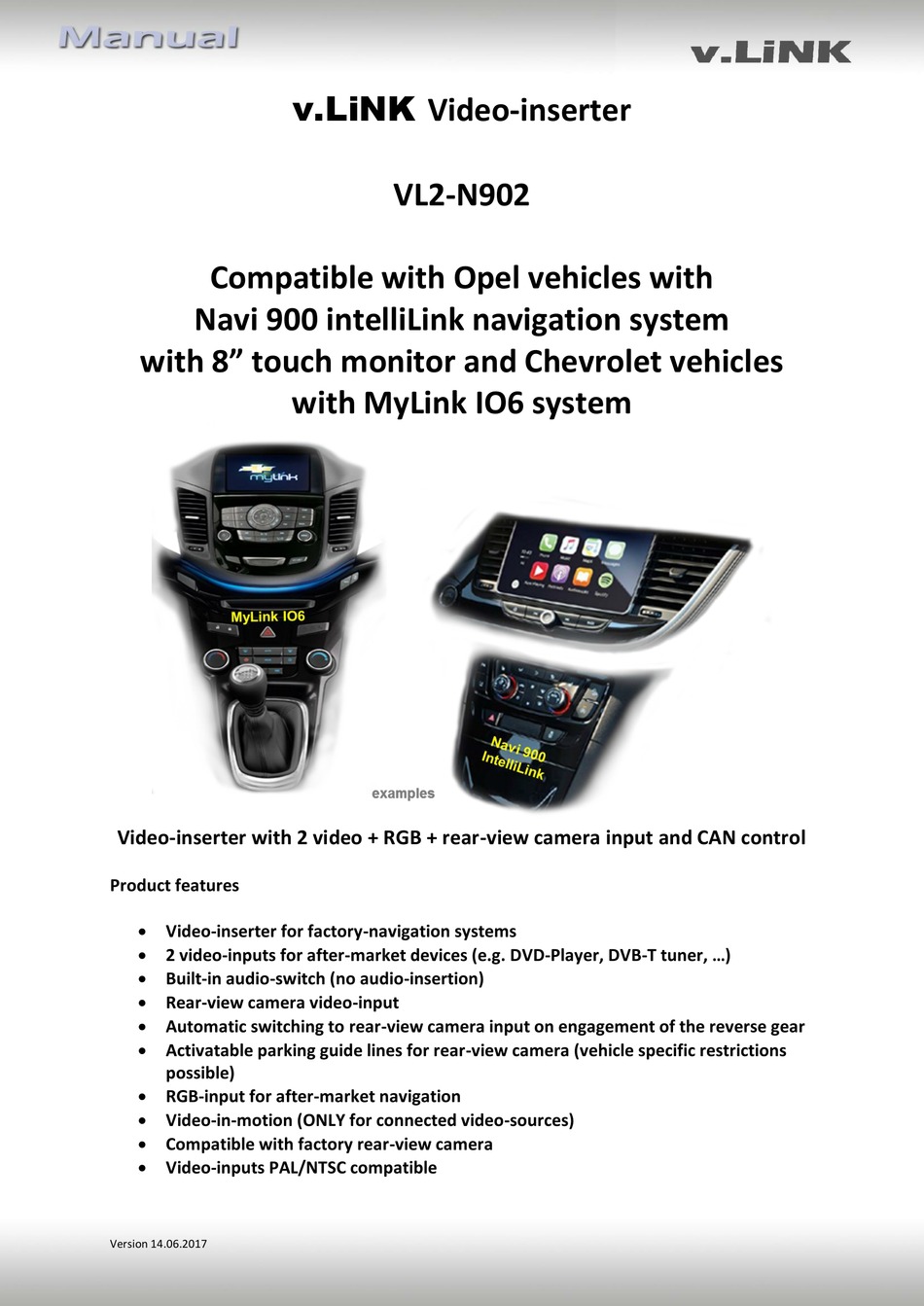

- Page 1 Video-inserter VL2-N902 Compatible with Opel vehicles with Navi 900 intelliLink navigation system with 8” touch monitor and Chevrolet vehicles with MyLink IO6 system Video-inserter with 2 video + RGB + rear-view camera input and CAN control Product features Video-inserter for factory-navigation systems ...
-
Page 2: Table Of Contents
Case 2: CAN-box does not receive the reverse gear signal 2.5.4.3. Connection Video signal 2.6. Connecting video-interface and keypad 2.7. Picture settings and guide lines 3. Interface operation 4. Specifications 5. FAQ – Trouble Shooting-Interface functions 6. Technical support Version 14.06.2017 VL2-N902... -
Page 3: Prior To Installation
Read the manual prior to installation. Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 14.06.2017 VL2-N902... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
To delay the switch-back an additional electronic part is required. 1.3. Boxes and connectors 1.3.1. Video Interface The video-interface converts the connected after-market sources video signals into a LVDS signal which is inserted in the factory monitor using separate trigger options. Version 14.06.2017 VL2-N902... -
Page 5: Can-Bus Box
Only the enabled video inputs can be accessed by switching through the interface’s video sources. It is recommended to enable only the required inputs. So the disabled inputs will be skipped while switching through the video interfaces inputs. Version 14.06.2017 VL2-N902... -
Page 6: Rgb-Video Input Signal Selection For After-Market Navigation (Dip 4)
Dip position down is ON and position up is OFF. Vehicle/Navigation Dip 1 Dip 2 Dip 3 Dip 4 Opel vehicles Cadillac vehicles After each Dip-switch-change a power-reset of the Can-box has to be performed! Version 14.06.2017 VL2-N902... -
Page 7: Installation
Other Built-in locations of the blackbox like in in the passenger’s foot well in front of the A- pillar or even behind or near the glove box are possible. Example: location of the Opel Astra K factory blackbox Version 14.06.2017 VL2-N902... -
Page 8: Connection Schema
2.2. Connection schema Version 14.06.2017 VL2-N902... -
Page 9: Connecting Video-Interface And Can-Box
Note: Check the LEDs on the video-interface after reconnecting the battery, one must be on. Note: No liability for vehicle wire colours and pin definition! Changes by the vehicle manufacturer are possible. The given information has to be verified by the installer. Version 14.06.2017 VL2-N902... -
Page 10: Connection To The Factory Navigation Blackbox
16pin connector of the PNP Power/CAM of the vehicle harness. Connect the female 16pin connector of the Power/CAN harness to the male 16in connector of the factory navigation blackbox Version 14.06.2017 VL2-N902... -
Page 11: Connecting Of Peripheral Devices
If the aftermarket navigation NAV-FN900E will be connected, the factory touch-screen can be used. Please add the following step: Connect the female 8pin connector of 6pin to 12pin cable to male 8pin connector (Ctrl) of the video-interface. Version 14.06.2017 VL2-N902... -
Page 12: Video-Sources To Av1 And Av2
Connect the video RCA of the AV-source 1 to the female RCA connector Video 1 of the video cable. Connect the video RCA of the AV-source 2 to the female RCA connector Video 2 of the video cable. Version 14.06.2017 VL2-N902... -
Page 13: Audio-Switch And Audio-Insertion
RCA port AV-Out of the audio cable. Connect the audio-RCA of the AV-source 1 to the female RCA port AV1 of the audio cable. Connect the audio-RCA of the AV-source 2 to the female RCA port AV2 of the audio cable. Version 14.06.2017 VL2-N902... -
Page 14: After-Market Rear-View Camera
CAM while the reverse gear is engaged. Additionally, the +12V (max. 500mA) power supply for the rear-view camera can be taken from the green wire of the 6pin to 12pin cable. Version 14.06.2017 VL2-N902... -
Page 15: Case 2: Can-Box Does Not Receive The Reverse Gear Signal
Connect the reverse gear light signal/power to coil (85) and ground to coil (86) of relay. Connect the rear-view camera power wire and the green wire (video interface side) of 6pin to 12pin cable both to output (87) of the relay. Connect permanent battery power to input (30) of relay. Version 14.06.2017 VL2-N902... -
Page 16: Connecting Video-Interface And Keypad
CAM. Note: The picture settings for CAM input have to be adjusted in AV2. 2.6. Connecting video-interface and keypad Connect the female 4pin connector of the keypad to the male 4pin connector of the video-interface. Version 14.06.2017 VL2-N902... -
Page 17: Picture Settings And Guide Lines
Note: If there is no communication between the CAN box and the vehicle`s CAN-bus (several vehicles aren’t compatible), the .reverse gear guide-lines can`t be shown during the vehicle’s operation, even if they once appear after having switched the system to powerless! Version 14.06.2017 VL2-N902... -
Page 18: Interface Operation
RGB-video amplitude 0.7V with 75 Ohm impedance Temperature range -40°C to +85°C Dimensions video-box 154 x 22 x 92 mm (W x H x D) Dimensions CAN-box 73 x 22 x 45 mm (W x H x D) Version 14.06.2017 VL2-N902... -
Page 19: Faq - Trouble Shooting-Interface Functions
Camera is being tested under Camera input picture fluorescent light which shines Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker. bluish. removed from camera lens. Version 14.06.2017 VL2-N902... -
Page 20: Technical Support
Please note that direct technical support is only available for products purchased directly from NavLinkz GmbH. For products bought from other sources, contact your vendor for technical support. NavLinkz GmbH distribution/tech dealer-support Eurotec-Ring 39 D-47445 Moers +49 2841 949970 Email mail@navlinkz.de 10R-03 5384 Made in China Version 14.06.2017 VL2-N902...
