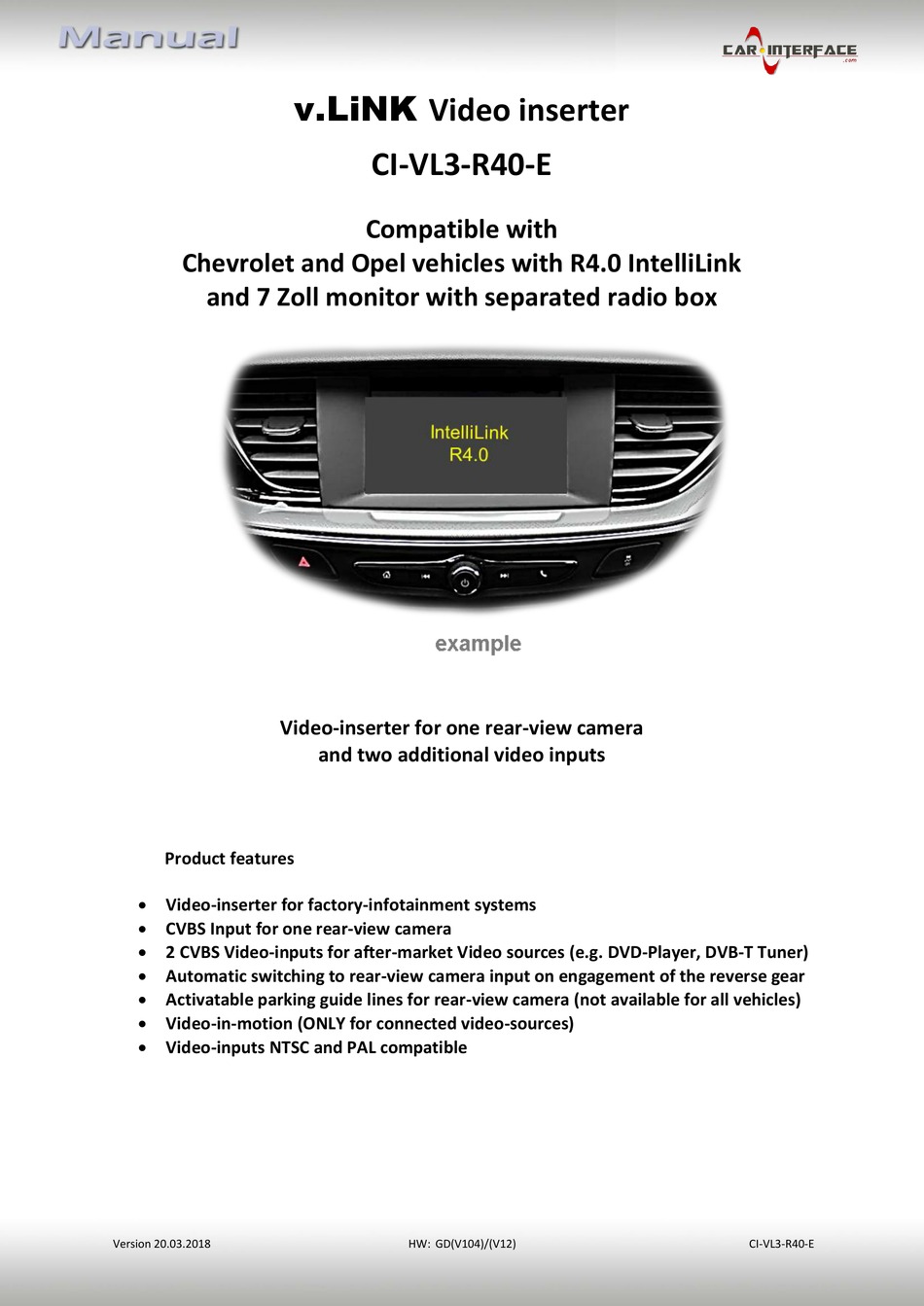

v.LiNK Video inserter
CI-VL3-R40-E
Compatible with
Chevrolet and Opel vehicles with R4.0 IntelliLink
and 7 Zoll monitor with separated radio box
Video-inserter for one rear-view camera
and two additional video inputs
Product features
Video-inserter for factory-infotainment systems
CVBS Input for one rear-view camera
2 CVBS Video-inputs for after-market Video sources (e.g. DVD-Player, DVB-T Tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Activatable parking guide lines for rear-view camera (not available for all vehicles)
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC and PAL compatible
Version 20.03.2018
HW: GD(V104)/(V12)
CI-VL3-R40-E
Advertisement
Table of Contents
Related Manuals for v.link CI-VL3-R40-E
Summary of Contents for v.link CI-VL3-R40-E
- Page 1 Video inserter CI-VL3-R40-E Compatible with Chevrolet and Opel vehicles with R4.0 IntelliLink and 7 Zoll monitor with separated radio box Video-inserter for one rear-view camera and two additional video inputs Product features Video-inserter for factory-infotainment systems CVBS Input for one rear-view camera ...
-
Page 2: Table Of Contents
Case 2Interface does not receive the reverse gear signal 2.6. Connecting video-interface and external keypad 2.7. Picture settings and guide lines 3. Interface operation 3.1. By factory infotainment button 3.2. By external keypad 4. Specifications 5. FAQ – Trouble Shooting-Interface functions Version 20.03.2018 HW: GD(V104)/(V12) CI-VL3-R40-E... -
Page 3: Prior To Installation
Due to changes in the production of the vehicle manufacturer there’s always a possibility of incompatibility. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 20.03.2018 HW: GD(V104)/(V12) CI-VL3-R40-E... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
Factory rear-view camera Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required. Version 20.03.2018 HW: GD(V104)/(V12) CI-VL3-R40-E... -
Page 5: Boxes And Connectors - Video Interface
No function set to OFF *The vertical picture mirror function has been added with software 25-180227/GD- 171204/2000HC-180227. See the following chapters for detailed information. After each Dip-switch-change a power-reset of the Can-box has to be performed! Version 20.03.2018 HW: GD(V104)/(V12) CI-VL3-R40-E... -
Page 6: Enabling The Interface's Video Inputs (Dip 2-3)
Due to changes in the production of the vehicle manufacturer there’s always a possibility of incompatibility. 2.1. Place of installation The interface is supposed to be installed at a suitable location behind the vehicle`s head- unit. Version 20.03.2018 HW: GD(V104)/(V12) CI-VL3-R40-E... -
Page 7: Connection Schema
2.2. Connection schema Version 20.03.2018 HW: GD(V104)/(V12) CI-VL3-R40-E... -
Page 8: Connection To Factory Head Unit And Monitor
HSD+2 connector of the video interface. Connect the female waterblue coloured HSD+2 connector of the picture signal cable to the waterblue coloured male HSD+2 connector of the video interface. Version 20.03.2018 HW: GD(V104)/(V12) CI-VL3-R40-E... -
Page 9: Connection - Power / Can
20pin connector of the Power / CAN cable. Connect the opposite female 20pin connector of the Power / CAN cable to the previously become free male 20pin connector at the rear-side of the head unit. Version 20.03.2018 HW: GD(V104)/(V12) CI-VL3-R40-E... -
Page 10: Analog Power Supply For The Video Interface
ACC-out (max 3A) and the purple coloured wire Manual ACC of the 12pin interface cable both have to be connected additionately to S-contact terminal 86s +12V (e.g. glove compartment illumination). Version 20.03.2018 HW: GD(V104)/(V12) CI-VL3-R40-E... -
Page 11: Connection Of Video-Sources
Connect the video RCA of the video source 1 and 2 to the female RCA connector “Video IN1” ”Video IN 2” of the 12pin interface cable. Connect the video RCA of the Rear-view camera to the female RCA connector “Camera IN” of the 12pin interface cable. Version 20.03.2018 HW: GD(V104)/(V12) CI-VL3-R40-E... -
Page 12: Audio Insertion
“Camera IN” while the reverse gear is engaged. Additionally, the +12V (max. 3A) power supply for the rear-view camera can be taken from the green wire of the 12pin interface cable. Version 20.03.2018 HW: GD(V104)/(V12) CI-VL3-R40-E... - Page 13 Connect the output connector (87) of the relay to the rear-view camera’s power- cable, like you did it to the green “Reverse-IN” cable before. Connect stabile and permanent +12V to the relay’s input connector (30). Version 20.03.2018 HW: GD(V104)/(V12) CI-VL3-R40-E...
-
Page 14: Connecting Video-Interface And External Keypad
Connect the female 4pin connector of the keypad to the male 4pin connector of the 12pin interface cable. Note: Even if switching through several video sources by the keypad mightn’t be required, the invisible connection and availability is strongly recommended. Version 20.03.2018 HW: GD(V104)/(V12) CI-VL3-R40-E... -
Page 15: Picture Settings And Guide Lines
If there is no communication between interface and the vehicle`s CAN-bus (several vehicles aren’t compatible), the reverse gear guide-lines can`t be shown during the vehicle’s operation, even if they once appear after having switched the system to powerless! Version 20.03.2018 HW: GD(V104)/(V12) CI-VL3-R40-E... -
Page 16: Interface Operation
Alternatively or additionally to the factory infotainment buttons, the interface’s external keypad can be used to switch the enabled inputs. Note: Even if not needed, the keypad should always remain connected to the video interface for support purposes. Version 20.03.2018 HW: GD(V104)/(V12) CI-VL3-R40-E... -
Page 17: Specifications
7V - 25V Stand-by power drain 25mA Power 180mA @12V Video input 0.7V - 1V Video input formats NTSC Temperature range -40°C to +85°C Dimensions video-box 160 x 23 x 112 mm (W x H x D) Version 20.03.2018 HW: GD(V104)/(V12) CI-VL3-R40-E... -
Page 18: Faq - Trouble Shooting-Interface Functions
Camera input picture fluorescent light which shines Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 20.03.2018 HW: GD(V104)/(V12) CI-VL3-R40-E... - Page 19 Cut the grey wire of 6pin to 8pin and isolate both Interface switches compatibility to vehicle is ends. If problem still occurs, additionally cut the white video-sources by itself. limited. wire of 6pin to 8pin cable and isolate both ends. 10R-03 5384 Made in China Version 20.03.2018 HW: GD(V104)/(V12) CI-VL3-R40-E...
