Compatible with Mercedes Benz
Comand APS NTG1 and NTG2 navigation systems
Video-inserter with 2 video- + RGB- + rear-view camera input
Product features
 RGB-input for after-market navigation
 2 video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, ...)
 Built-in audio-switch
 Rear-view camera input, automatically switching
 Factory rear-view camera compatible
 Switching of video through steering-wheel button and external switch
 Video inputs only NTSC compatible (only PAL compatible if factory TV is installed)
 Wrong-plugging circuit protection
Version 25.09.2019
v.LiNK Video-inserter
VL2-MBN2
HW: FV09(V41)
VL2-MBN2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VL2-MBN2 and is the answer not in the manual?

Questions and answers

Summary of Contents for v.link VL2-MBN2

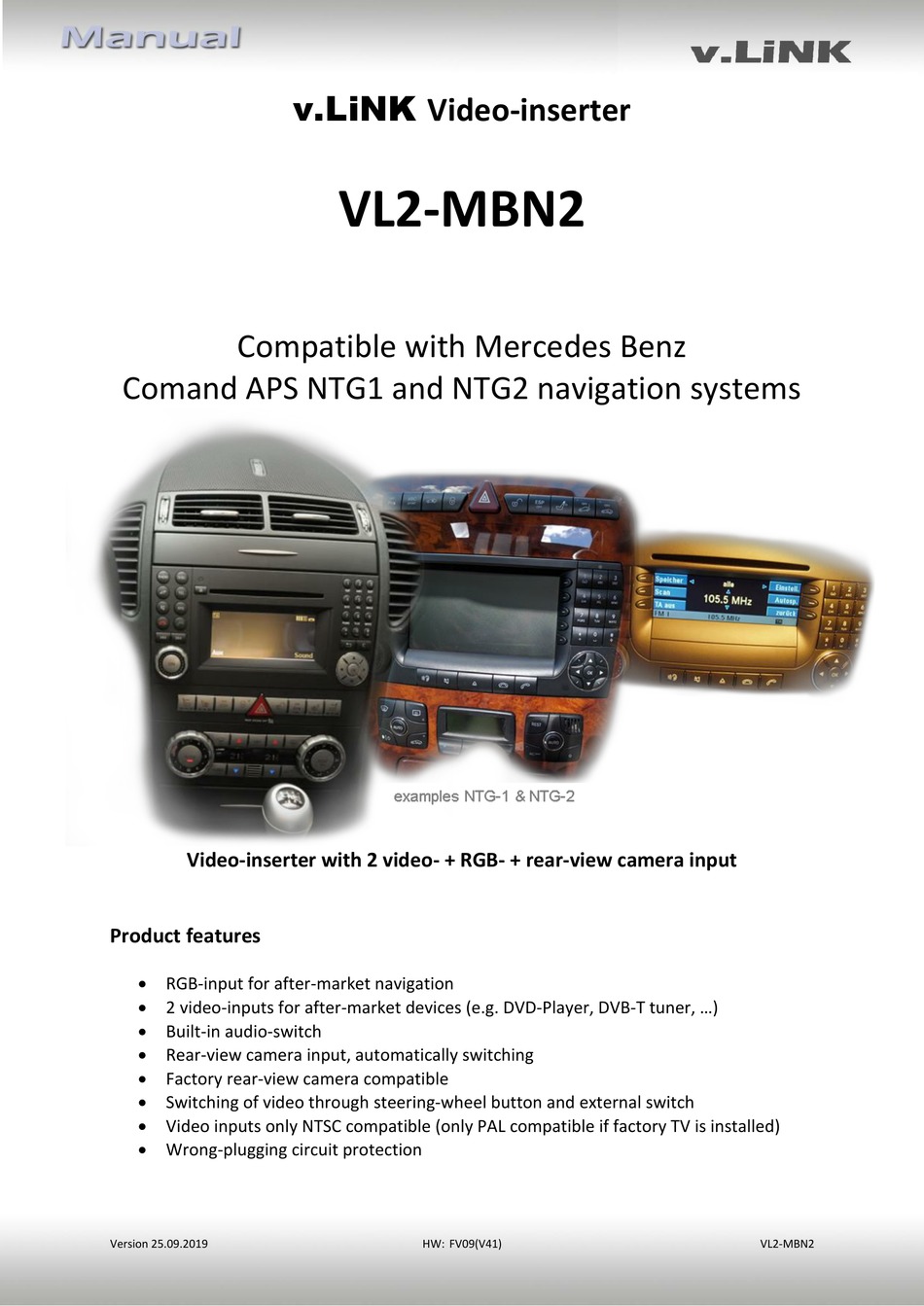

  • Page 1 Video-inserter VL2-MBN2 Compatible with Mercedes Benz Comand APS NTG1 and NTG2 navigation systems Video-inserter with 2 video- + RGB- + rear-view camera input Product features  RGB-input for after-market navigation  2 video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, …) ...
  • Page 2: Table Of Contents

    To receive a free update, the interface must be sent in at own cost. Labor cost for and other expenses involved with the software-updates will not be refunded. Version 25.09.2019 HW: FV09(V41) VL2-MBN2...
  • Page 3: Prior To Installation

    Read the manual prior to installation. Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 25.09.2019 HW: FV09(V41) VL2-MBN2...
  • Page 4: Checking The Compatibility Of Vehicle And Accessories

    Video-input ON (down) OFF (up) Dip 1 enabled disabled Dip 2 Video IN1 enabled disabled Dip 3 Video IN2 enabled disabled Version 25.09.2019 HW: FV09(V41) VL2-MBN2...
  • Page 5: Rear-View Camera Settings (Dip 5)

    Remove head-unit. Remove the upper cover including the DVD/ navigation device. The external daughter PCB is plugged in between the flex cable of the monitor panel and the mainboard of the head-unit. Version 25.09.2019 HW: FV09(V41) VL2-MBN2...
  • Page 6: Connecting The Flex Cables

    Note: Depending on the very navigation head-unit, the original flex cable needs to be changed into a flex cable of the package contents. In this case, with the original flex cable installed, the inserted picture will be scramble as if synchronization was missing. Version 25.09.2019 HW: FV09(V41) VL2-MBN2...
  • Page 7: Connections

    No liability for vehicle wire colors and pin definition! Quadlock-connector of the vehicle Possible changes by the vehicle manufacturer. The ●● Red/Blue +12Volt Permanent Pin 15 given information must be verified by the installer ● Brown Ground Pin 12 Version 25.09.2019 HW: FV09(V41) VL2-MBN2...
  • Page 8: Installation Procedure - Function Check

    If 2 audio sources shall be used, connect the audio wires and check the audio function ONLY after positive function check proceed with final installation of the video sources! After installation and connection of the real video source(s), adjust picture settings (see chapter 2.5.) Version 25.09.2019 HW: FV09(V41) VL2-MBN2...
  • Page 9: Picture Settings

    2.5. Picture settings The VL2-MBN2 does not have an OSD like other VL2-xxx interfaces. After installing the sources the picture settings can be changed using a pen on the 3 buttons of the video interface. The buttons are embedded in the housing to avoid accidental changes during or after installation.
  • Page 10: Interface Operation

    0.3A @12V Video input 0.7V - 1V Video input formats PAL/NTSC RGB-video amplitude 0.7V with 75 Ohm impedance Temperature range -40°C to +85°C Dimensions video-box 159 x 25 x 95 mm (W x H x D) Version 25.09.2019 HW: FV09(V41) VL2-MBN2...
  • Page 11 Camera input picture fluorescent light which shines Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 25.09.2019 HW: FV09(V41) VL2-MBN2...
  • Page 12: Technical Support

    Please note that direct technical support is only available for products purchased directly from NavLinkz GmbH. For products bought from other sources, contact your vendor for technical support. NavLinkz GmbH distribution/tech dealer-support Eurotec-Ring 39 D-47445 Moers +49 2841 949970 Email mail@navlinkz.de 10R-03 5384 Made in China Version 25.09.2019 HW: FV09(V41) VL2-MBN2...
