Compatible with Citroen and Peugeot vehicles
with SMEG or SMEG+ navigation
with 4pin HSD LVDS connector on the monitor
Video-inserter with 2 video and 1 rear-view camera input

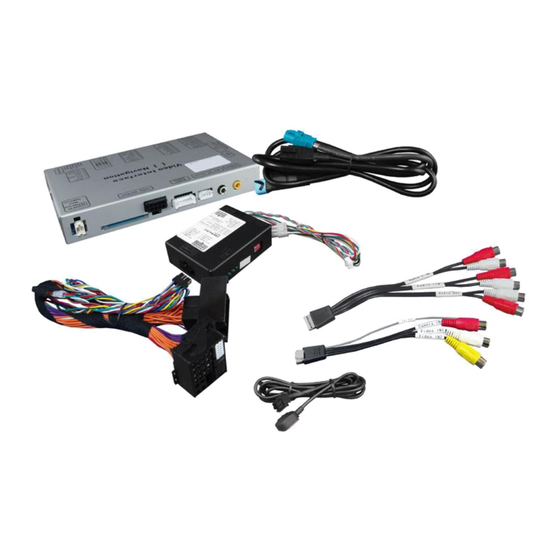

Product features
Video-inserter for factory-infotainment systems
2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, ...)
Built-in audio-switch (no audio-insertion)
Rear-view camera CVBS video-input
Automatic switching to rear-view camera input on engagement of reverse gear
Activatable parking guide lines for rear-view camera (not for all vehicles)
Video-in-motion (ONLY for connected video-sources)
Compatible with factory rear-view camera
AV-inputs PAL/NTSC compatible
Version 09.04.2018
v.LiNK Video-inserter
CI-VL2-PC-HSD
HW 25 (V92)
CI-VL2-PC-HSD
Advertisement
Table of Contents
Related Manuals for v.link CI-VL2-PC-HSD
Summary of Contents for v.link CI-VL2-PC-HSD
- Page 1 Video-inserter CI-VL2-PC-HSD Compatible with Citroen and Peugeot vehicles with SMEG or SMEG+ navigation with 4pin HSD LVDS connector on the monitor Video-inserter with 2 video and 1 rear-view camera input Product features Video-inserter for factory-infotainment systems 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, …) ...
-
Page 2: Table Of Contents
Case 2: CAN-box does not detect reverse gear 2.6.3.3. Video signal connection 2.7. Connecting video-interface and keypad 2.8. Picture settings and guide lines Interface operation 3.1. By LIST-key 3.2. By keypad Specifications video-interface Frequently asked questions Version 09.04.2018 HW 25 (V92) CI-VL2-PC-HSD... -
Page 3: Prior To Installation
Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 09.04.2018 HW 25 (V92) CI-VL2-PC-HSD... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
To extend the switch-back additional electronics is required. 1.3. Boxes and connectors 1.3.1. CAN-bus box The CAN-bus box reads digital signals from the CAN-bus and converts them for the video- interface. Version 09.04.2018 HW 25 (V92) CI-VL2-PC-HSD... -
Page 5: Video-Interface
OFF CVBS AV1-input enabled disabled CVBS AV2-input enabled disabled No function set OFF Rear-view cam type after-market factory or none No function set OFF No function Set OFF See following chapters for detailed information. Version 09.04.2018 HW 25 (V92) CI-VL2-PC-HSD... -
Page 6: Enabling The Interface's Video Inputs (Dip 1-3)
If power source is not taken directly from the battery, the connection has to be checked for being start-up proven and permanent. 2.1. Place of installation The interface is installed on the backside of the factory monitor and on the backside of the head-unit. Version 09.04.2018 HW 25 (V92) CI-VL2-PC-HSD... -
Page 7: Connection Schema
2.2. Connection scheme Version 09.04.2018 HW 25 (V92) CI-VL2-PC-HSD... -
Page 8: Connecting Video-Interface And Can-Box
CAN, it is possible to install without CAN- box. In this case see also note in chapter after-market rear-view camera if one is supposed to be connected. Version 09.04.2018 HW 25 (V92) CI-VL2-PC-HSD... -
Page 9: Connection To The Factory Monitor
4pin HSD LVDS connector of the 4pin HSD LVDS cable. Connect female 4pin connector of the 4pin HSD LVDS cable to the male 4pin HSD LVDS connector of the factory monitor. Version 09.04.2018 HW 25 (V92) CI-VL2-PC-HSD... -
Page 10: Connection To The Head-Unit
It is possible to connect 2 after-market AV-sources and 1 after-market rear-view camera to the video-interface. Before final installation of the peripheral devices, we recommend a test-run of the interface. Due to changes in the production of the vehicle manufacturer is always the possibility of incompatibility. Version 09.04.2018 HW 25 (V92) CI-VL2-PC-HSD... -
Page 11: Video-Sources To Av1 And Av2
Connect video RCA of the AV-source 1 to the female RCA connector Video 1 of the video cable. Connect video RCA of the AV-source 2 to the female RCA connector Video 2 of the video cable. Version 09.04.2018 HW 25 (V92) CI-VL2-PC-HSD... -
Page 12: Audio-Switch And Audio-Insertion
Connect the audio-RCA of the AV-source 1 to the female RCA port AV1 of the audio cable. Connect the audio-RCA of the AV-source 2 to the female RCA port AV2 of the audio cable. Version 09.04.2018 HW 25 (V92) CI-VL2-PC-HSD... -
Page 13: After-Market Rear-View Camera
CAM while reverse gear is engaged. Additionally, the +12V (max. 500mA) power supply for the rear-view camera can be taken from the green wire of the 6pin to 8pin cable. Version 09.04.2018 HW 25 (V92) CI-VL2-PC-HSD... -
Page 14: Case 2: Can-Box Does Not Detect Reverse Gear
Connect reverse gear light signal/power to coil (85) and ground to coil (86) of relais. Connect rear-view camera power and green wire (video interface side) of 6pin to 8pin cable to output (87) of relay. Connect permanent battery power to input (30) of relay. Version 09.04.2018 HW 25 (V92) CI-VL2-PC-HSD... -
Page 15: Video Signal Connection
CAM. Note: Picture settings for CAM input must be done in AV2. 2.7. Connecting video-interface and keypad Connect the female 4pin connector of the keypad to the male 4pin connector of the video-interface. Version 09.04.2018 HW 25 (V92) CI-VL2-PC-HSD... -
Page 16: Picture Settings And Guide Lines
The following settings are available: Contrast Brightness Saturation Position H (horizontal) Position V (vertical) Guide-CNTRL (guide lines ON/OFF) Note: If the CAN-box does not support the very vehicle, the guide-lines cannot be used. Version 09.04.2018 HW 25 (V92) CI-VL2-PC-HSD... -
Page 17: Interface Operation
Video input formats PAL/NTSC Temperature range -40°C to +85°C Dimensions video-box (W x H x D) 155 x 22 x 90 mm Dimensions CAN-box (W x H x D) 87 x 27 x 65 mm Version 09.04.2018 HW 25 (V92) CI-VL2-PC-HSD... - Page 18 Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 09.04.2018 HW 25 (V92) CI-VL2-PC-HSD...
- Page 19 Interface switches compatibility to vehicle is ends. If problem still occurs, additionally cut the white video-sources by itself. limited. wire of 6pin to 8pin cable and isolate both ends. 10R-03 5384 Made in China Version 09.04.2018 HW 25 (V92) CI-VL2-PC-HSD...
