v.LiNK Video-inserter and navigation
VL2-PC-HSD and NAL-PC-HSD
Compatible with Citroen and Peugeot vehicles
with SMEG or SMEG+ navigation
with 4pin HSD LVDS connector on the monitor
VL2-PC-HSD: Video-inserter with 2 video + RGB + rear-view camera input and
NAL-PC-HSD: Video-inserter with integrated navigation +2 video + rear-view
Product features
Video-inserter for factory-infotainment monitors
2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, ...)
Built-in audio-switch (no audio-insertion)
Rear-view camera CVBS video-input
Automatic switching to rear-view camera input on engagement of reverse gear
Activatable parking guide lines for rear-view camera (not for all vehicles)
RGB-input for after-market navigation (VL2 only)
Video-in-motion (ONLY for connected video-sources)
Compatible with factory rear-view camera
AV-inputs PAL/NTSC compatible
Version 24.04.2017
CAN control
camera input and CAN control
Advertisement
Table of Contents
Related Manuals for v.link VL2-PC-HSD
Summary of Contents for v.link VL2-PC-HSD

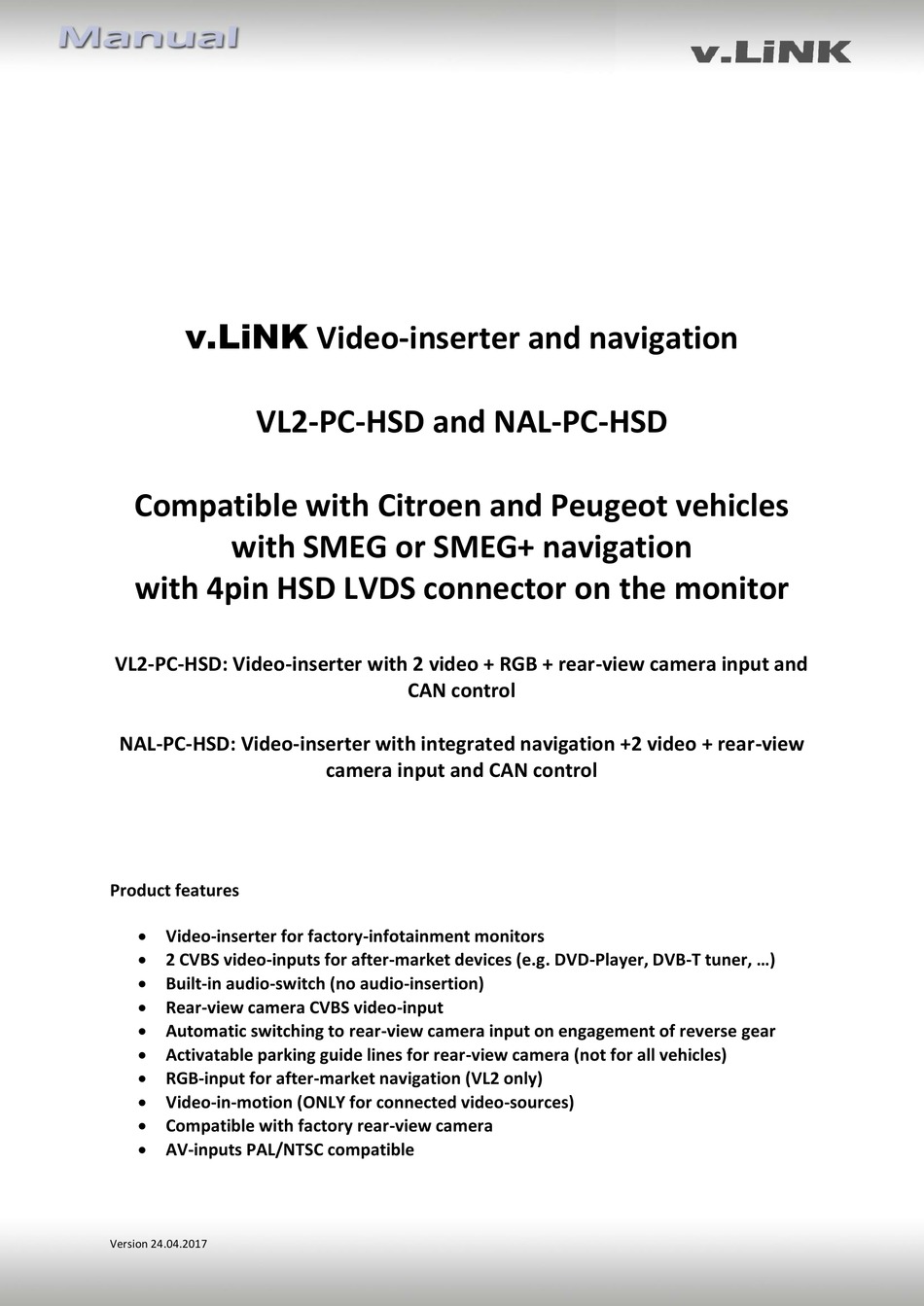

- Page 1 Compatible with Citroen and Peugeot vehicles with SMEG or SMEG+ navigation with 4pin HSD LVDS connector on the monitor VL2-PC-HSD: Video-inserter with 2 video + RGB + rear-view camera input and CAN control NAL-PC-HSD: Video-inserter with integrated navigation +2 video + rear-view...
-
Page 2: Table Of Contents
Connecting video-interface and keypad 2.8. Picture settings and guide lines 2.9. Connecting internal navigation (only NAL) Interface operation 3.1. By LIST-key 3.2. By keypad Specifications video-interface Frequently asked questions Technical support Appendix A – Internal Navigation (only NAL) Version 24.04.2017 VL2-PC-HSD / NAL-PC-HSD... -
Page 3: Prior To Installation
Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 24.04.2017 VL2-PC-HSD / NAL-PC-HSD... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
To extend the switch- back additional electronics is required. 1.3. Boxes and connectors 1.3.1. CAN-bus box The CAN-bus box reads digital signals from the CAN-bus and converts them for the video- interface. Version 24.04.2017 VL2-PC-HSD / NAL-PC-HSD... -
Page 5: Video-Interface
CVBS AV1-input enabled disabled CVBS AV2-input enabled disabled RGB-input resolution 800x480 400x240 or 480x240 Rear-view cam type after-market factory or none No function set OFF No function Set OFF See following chapters for detailed information. Version 24.04.2017 VL2-PC-HSD / NAL-PC-HSD... -
Page 6: Enabling The Interface's Video Inputs (Dip 1-3)
If power source is not taken directly from the battery, the connection has to be checked for being start-up proven and permanent. 2.1. Place of installation The interface is installed on the backside of the factory monitor and on the backside of the head-unit. Version 24.04.2017 VL2-PC-HSD / NAL-PC-HSD... -
Page 7: Connection Schema
2.2. Connection scheme Version 24.04.2017 VL2-PC-HSD / NAL-PC-HSD... -
Page 8: Connecting Video-Interface And Can-Box
CAN, it is possible to install without CAN- box. In this case see also note in chapter after-market rear-view camera if one is supposed to be connected. Version 24.04.2017 VL2-PC-HSD / NAL-PC-HSD... -
Page 9: Connection To The Factory Monitor
4pin HSD LVDS connector of the 4pin HSD LVDS cable. Connect female 4pin connector of the 4pin HSD LVDS cable to the male 4pin HSD LVDS connector of the factory monitor. Version 24.04.2017 VL2-PC-HSD / NAL-PC-HSD... -
Page 10: Connection To The Head-Unit
VL2), 2 after-market AV-sources and an after-market rear-view camera to the video- interface. Before final installation of the peripheral devices, we recommend a test-run of the interface. Due to changes in the production of the vehicle manufacturer is always the possibility of incompatibility. Version 24.04.2017 VL2-PC-HSD / NAL-PC-HSD... - Page 11 Connect female 8pin connector of the RGB cable to the male 8pin connector of the video-interface. The loose grey wires have no function and have to be isolated. Connect male 6pin connector of the RGB cable to the after-Market navigation. Version 24.04.2017 VL2-PC-HSD / NAL-PC-HSD...
-
Page 12: Video-Sources To Av1 And Av2
Connect video RCA of the AV-source 1 to the female RCA connector Video 1 of the video cable. Connect video RCA of the AV-source 2 to the female RCA connector Video 2 of the video cable. Version 24.04.2017 VL2-PC-HSD / NAL-PC-HSD... -
Page 13: Audio-Switch And Audio-Insertion
RCA port AV-Out of the audio cable. Connect the audio-RCA of the AV-source 1 to the female RCA port AV1 of the audio cable. Connect the audio-RCA of the AV-source 2 to the female RCA port AV2 of the audio cable. Version 24.04.2017 VL2-PC-HSD / NAL-PC-HSD... -
Page 14: After-Market Rear-View Camera
CAM while reverse gear is engaged. Additionally, the +12V (max. 500mA) power supply for the rear-view camera can be taken from the green wire of the 6pin to 8pin cable. Version 24.04.2017 VL2-PC-HSD / NAL-PC-HSD... -
Page 15: Case 2: Can-Box Does Not Detect Reverse Gear
Connect reverse gear light signal/power to coil (85) and ground to coil (86) of relais. Connect rear-view camera power and green wire (video interface side) of 6pin to 8pin cable to output (87) of relay. Connect permanent battery power to input (30) of relay. Version 24.04.2017 VL2-PC-HSD / NAL-PC-HSD... -
Page 16: Video Signal Connection
CAM. Note: Picture settings for CAM input must be done in AV2. 2.7. Connecting video-interface and keypad Connect the female 4pin connector of the keypad to the male 4pin connector of the video-interface. Version 24.04.2017 VL2-PC-HSD / NAL-PC-HSD... -
Page 17: Picture Settings And Guide Lines
The following settings are available: Contrast Brightness Saturation Position H (horizontal) Position V (vertical) Guide-CNTRL (guide lines ON/OFF) Note: If the CAN-box does not support the very vehicle, the guide-lines cannot be used. Version 24.04.2017 VL2-PC-HSD / NAL-PC-HSD... -
Page 18: Connecting Internal Navigation (Only Nal)
Connect red-green drilled cable of 6+2pin of 8pin cable to the male 4pin connector of the video-interface. Connect the USB-cable to the male 5pin connector of the video-interface. Insert SD-card (map) into the SD-card slot of the video-interface. Version 24.04.2017 VL2-PC-HSD / NAL-PC-HSD... -
Page 19: Interface Operation
87 x 27 x 65 mm SiRF atlasVI 800 MHz DDR3 256MB Operating system WinCE 6.0 GPS-antenna type External active antenna Antenna gain 27 dB Antenna operating voltage 3.3V ± 5% Antenna power consumption 15mA Version 24.04.2017 VL2-PC-HSD / NAL-PC-HSD... - Page 20 Camera input picture fluorescent light which shines Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker. bluish. removed from camera lens. Version 24.04.2017 VL2-PC-HSD / NAL-PC-HSD...
-
Page 21: Technical Support
