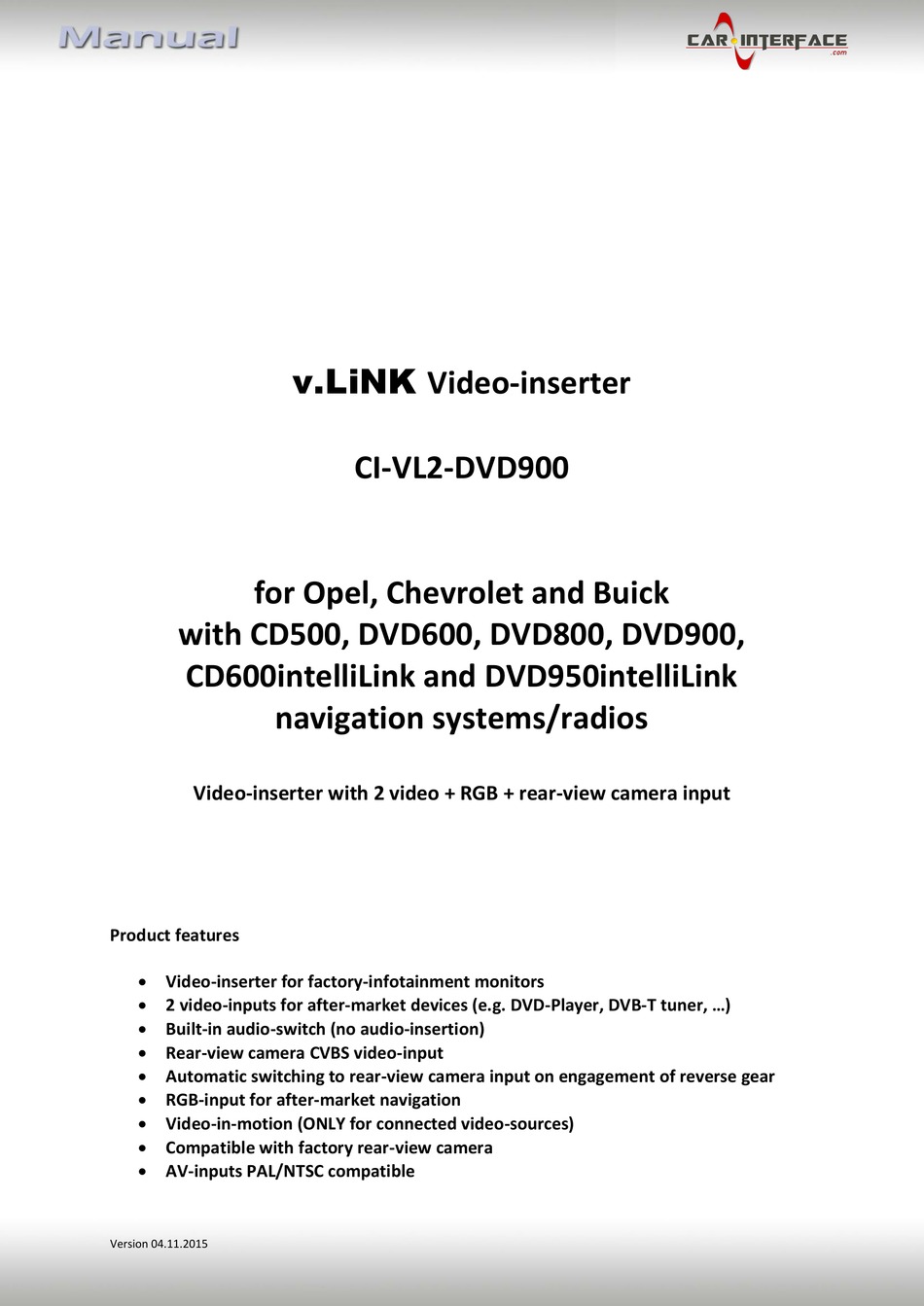

for Opel, Chevrolet and Buick
with CD500, DVD600, DVD800, DVD900,
CD600intelliLink and DVD950intelliLink
navigation systems/radios
Video-inserter with 2 video + RGB + rear-view camera input
Product features
Video-inserter for factory-infotainment monitors
2 video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, ...)
Built-in audio-switch (no audio-insertion)
Rear-view camera CVBS video-input
Automatic switching to rear-view camera input on engagement of reverse gear
RGB-input for after-market navigation
Video-in-motion (ONLY for connected video-sources)
Compatible with factory rear-view camera
AV-inputs PAL/NTSC compatible
Version 04.11.2015
v.LiNK Video-inserter
CI-VL2-DVD900
Advertisement
Table of Contents
Related Manuals for v.link CI-VL2-DVD900
Summary of Contents for v.link CI-VL2-DVD900
- Page 1 Video-inserter CI-VL2-DVD900 for Opel, Chevrolet and Buick with CD500, DVD600, DVD800, DVD900, CD600intelliLink and DVD950intelliLink navigation systems/radios Video-inserter with 2 video + RGB + rear-view camera input Product features Video-inserter for factory-infotainment monitors 2 video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, …) ...
-
Page 2: Table Of Contents
Case 2: GM-LAN box does not detect reverse gear 2.5.4.3. Video signal connection 2.6. Connecting video-interface and keypad 2.7. Picture settings 3. Interface operation 3.1. By “hang up”-key 3.2. By keypad 4. Specifications 5. Frequently asked questions Version 04.11.2015 CI-VL2-DVD900... -
Page 3: Prior To Installation

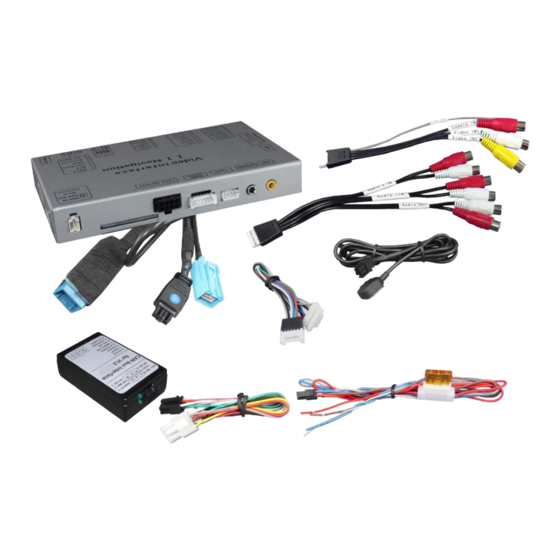

Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 04.11.2015 CI-VL2-DVD900... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
1.3. Boxes and connectors 1.3.1. Video-interface The video-interface converts the connected after-market sources video signals to a GVIF signal which is the inserted into the factory monitor on certain trigger options. Version 04.11.2015 CI-VL2-DVD900... -
Page 5: Gm-Lan Box
1.4.2. RGB-video input signal selection for after-market navigation (Dip 4) If an after-market RGB navigation or other RGB video source is connected, the source’s RGB output signal must match the interface’s RGB video input setting. Version 04.11.2015 CI-VL2-DVD900... -
Page 6: Rear-View Camera Setting (Dip 5)
If power source is not taken directly from the battery, the connection has to be checked for being start-up proven and permanent. 2.1. Place of installation The interface is installed on the backside of the factory monitor. Version 04.11.2015 CI-VL2-DVD900... -
Page 7: Connection Schema
2.2. Connection schema Version 04.11.2015 CI-VL2-DVD900... -
Page 8: Connecting Video-Interface And Gm-Lan Box
6pin Molex connector of the video-interface. Connect black female 8pin Micro-Fit connector of the 6pin to 8pin cable to male 8pin Micro-Fit connector of the GM-LAN-box. Note: Check LEDs on video-interface after reconnecting the battery, one must be on. Version 04.11.2015 CI-VL2-DVD900... -
Page 9: Connection To The Factory Monitor
(or another RGB source) to the video-interface. Before final installation of the peripheral devices, we recommend a test-run to detect incompatibility of vehicle and interface. Due to changes in the production of the vehicle manufacturer is always the possibility of incompatibility. Version 04.11.2015 CI-VL2-DVD900... -
Page 10: After-Market Rgb Navigation
Connect female 8pin connector of the RGB cable to the male 8pin connector of the video-interface. The loose grey wires have no function and have to be isolated. Connect male 6pin connector of the RGB cable to the after-Market navigation. Version 04.11.2015 CI-VL2-DVD900... -
Page 11: Video-Sources To Av1 And Av2
Connect video RCA of the AV-source 1 to the female RCA connector Video IN 1 of the video cable. Connect video RCA of the AV-source 2 to the female RCA connector Video IN 2 of the video cable. Version 04.11.2015 CI-VL2-DVD900... -
Page 12: Audio-Switch And Audio-Insertion
RCA port AV-Out of the audio cable. Connect the audio-RCA of the AV-source 1 to the female RCA port AV1 of the audio cable. Connect the audio-RCA of the AV-source 2 to the female RCA port AV2 of the audio cable. Version 04.11.2015 CI-VL2-DVD900... -
Page 13: After-Market Rear-View Camera
CAM while reverse gear is engaged. Additionally, the +12V (max. 500mA) power supply for the rear-view camera can be taken from the green wire of the 6pin to 8pin cable. Version 04.11.2015 CI-VL2-DVD900... -
Page 14: Case 2: Gm-Lan Box Does Not Detect Reverse Gear
Connect reverse gear light signal/power to coil (85) and ground to coil (86) of relais. Connect rear-view camera power and green wire (video interface side) of 6pin to 8pin cable to output (87) of relay. Connect permanent battery power to input (30) of relay. Version 04.11.2015 CI-VL2-DVD900... -
Page 15: Video Signal Connection
CAM. Note: Picture settings for CAM input must be done in AV2. 2.6. Connecting video-interface and keypad Connect the female 4pin connector of the keypad to the male 4pin connector of the video-interface. Version 04.11.2015 CI-VL2-DVD900... -
Page 16: Picture Settings
CAM share the same settings which must be adjusted in AV2. Note: The OSD menu is only shown when a working video source is connected to the selected video-input of the interface. The following settings are available: Contrast Brightness Saturation Position H (horizontal) Position V (vertical) Version 04.11.2015 CI-VL2-DVD900... -
Page 17: Interface Operation
Power consumption 2.4W Video input 0.7V~1V Video input formats PAL/NTSC RGB-video amplitude 0.7V with 75 Ohm impedance Temperature range -40°C to +85°C Weight 351g Dimensions (box only) B x H x T 152 x 21 x 9 mm Version 04.11.2015 CI-VL2-DVD900... -
Page 18: Frequently Asked Questions
Camera is being tested under Camera input picture fluorescent light which shines Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker. bluish. removed from camera lens. Version 04.11.2015 CI-VL2-DVD900... - Page 19 Cut the grey wire of 6pin to 8pin and isolate both Interface switches compatibility to vehicle is ends. If problem still occurs, additionally cut the white video-sources by itself. limited. wire of 6pin to 8pin cable and isolate both ends. 10R-03 5384 Made in China Version 04.11.2015 CI-VL2-DVD900...
