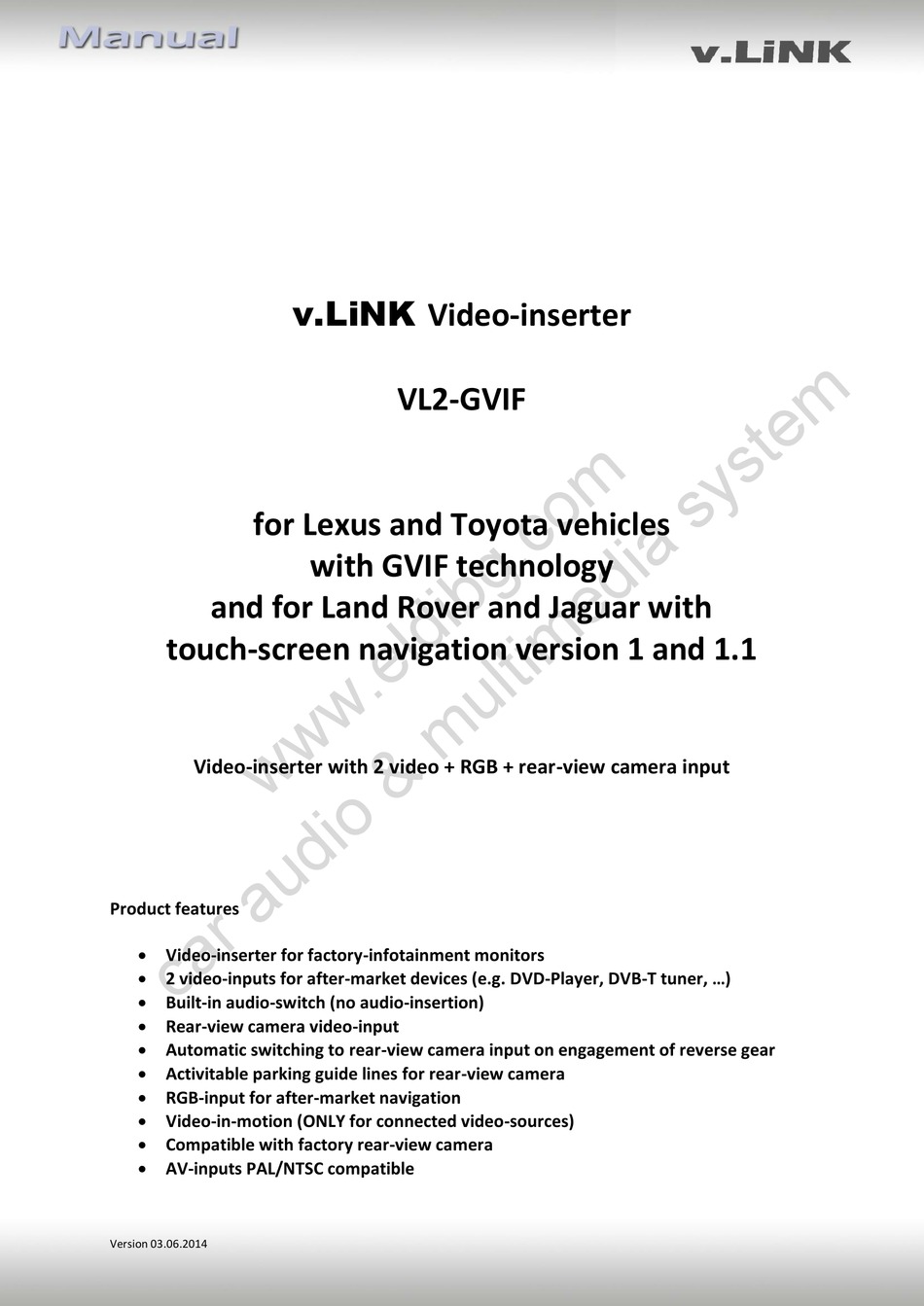

for Lexus and Toyota vehicles
and for Land Rover and Jaguar with
touch-screen navigation version 1 and 1.1
Video-inserter with 2 video + RGB + rear-view camera input
Product features
Video-inserter for factory-infotainment monitors
2 video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, ...)
Built-in audio-switch (no audio-insertion)
Rear-view camera video-input
Automatic switching to rear-view camera input on engagement of reverse gear
Activitable parking guide lines for rear-view camera
RGB-input for after-market navigation
Video-in-motion (ONLY for connected video-sources)
Compatible with factory rear-view camera
AV-inputs PAL/NTSC compatible
Version 03.06.2014

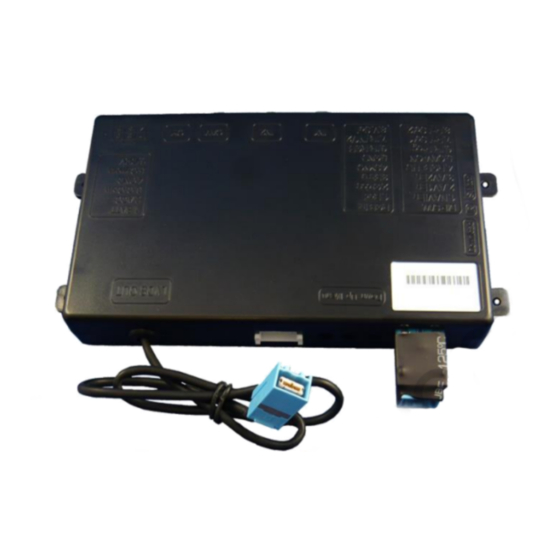

v.LiNK Video-inserter
VL2-GVIF
with GVIF technology
Advertisement
Table of Contents
Related Manuals for v.link VL2-GVIF
Summary of Contents for v.link VL2-GVIF
- Page 1 Video-inserter VL2-GVIF for Lexus and Toyota vehicles with GVIF technology and for Land Rover and Jaguar with touch-screen navigation version 1 and 1.1 Video-inserter with 2 video + RGB + rear-view camera input Product features Video-inserter for factory-infotainment monitors ...
-
Page 2: Table Of Contents
To receive a free update, the interface must be sent in at own cost. Labor cost for and other expenses involved with the software-updates will not be refunded. Version 03.06.2014 VL2-GVIF... -
Page 3: Prior To Installation
Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 03.06.2014 VL2-GVIF... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
The inserted video can only be seen in map mode of the factory navigation (the automatically switching to an after-market rear- view camera, too). Jaguar/LR with Touch-screen Blue GVIF connectors of vehicle and interface must be cut and version 1 soldered (exchanged for each other). Version 03.06.2014 VL2-GVIF... -
Page 5: Dip-Switch Settings
1.3.2. Video signal selection after-market navigation(Dip 4) To the video interface’s RGB-input it is possible to connect a RGB- or a VGA-video source. Set dip 4 according to table. After-Market Navigation Dip 4 VGA (RGB-Input Pin 4 H-Sync, Pin 8 V-Sync) RGB NTSC Version 03.06.2014 VL2-GVIF... -
Page 6: Enabling The Interface's Video Inputs (Dip 1-3)
If power source is not taken directly from the battery, the connection has to be checked for being start-up proven and permanent. 2.1. Place of installation The interface is installed on the backside of the factory monitor. Version 03.06.2014 VL2-GVIF... -
Page 7: Connection Schema
2.2. Connection schema Version 03.06.2014 VL2-GVIF... -
Page 8: Connecting Video-Interface And 6Pin Cable
Remove female GVIF connector from the rear of the factory monitor and connect it to the GVIF connector of the video-interface. Connect female GVIF connector of the GVIF cable to the male GVIF connector of the factory monitor. Version 03.06.2014 VL2-GVIF... -
Page 9: Special Case Jaguar And Land Rover With Touch-Screen Version
Before final installation of the peripheral devices, we recommend a test-run to detect incompatibility of vehicle and interface. Due to changes in the production of the vehicle manufacturer is always the possibility of incompatibility. Version 03.06.2014 VL2-GVIF... -
Page 10: Video-Sources To In1 And In2
It is possible to switch the audio signals from the to IN1 and IN2 connected AV-sources parallel to the video-signal of the respective AV-source by video-interface’s built-in audio- switch. Version 03.06.2014 VL2-GVIF... - Page 11 Audio input signal R/L of source IN1 Audio output signal R/L of factory audio AUX or FM-modulator Ground No function Note: When switching the video interface from video-IN1 to video-IN2, the audio will also automatically be switched. Version 03.06.2014 VL2-GVIF...
-
Page 12: After-Market Rear-View Camera
(relay AC-RW1230 and AC-RS5 optional available). Note: Set Dip 5 to ON. On Jaguar and Land Rover the automatically switching to an after-market rear-view camera is only possible in navigation mode. Version 03.06.2014 VL2-GVIF... -
Page 13: After-Market Navigation
Connect the female 4pin connector of the keypad to the male 4pin connector of the video-interface. Note: We suggest to install the external push button, even if it is not going to be used by the user. Even if installed hidden, it is helpful for fault diagnosis. Version 03.06.2014 VL2-GVIF... -
Page 14: Picture Settings
OSD. Press the MENU button to open settings menu on the OSD and to switch to the next setting. Choose menu item “Guide Line” and activate (ON) or deactivate (OFF) parking guide lines by UP and DOWN buttons. Version 03.06.2014 VL2-GVIF... -
Page 15: Interface Operation
Power consumption 2.4W Video input 0.7V~1V Video input formats PAL/NTSC RGB-video amplitude 0.7V with 75 Ohm impedance Temperature range -40°C to +85°C Weight 195g Dimensions (box only) B x H x T 182 x 24 x 100 mm Version 03.06.2014 VL2-GVIF... -
Page 16: Connections (Video-Interface)
5. Connections (video-interface) Version 03.06.2014 VL2-GVIF...
