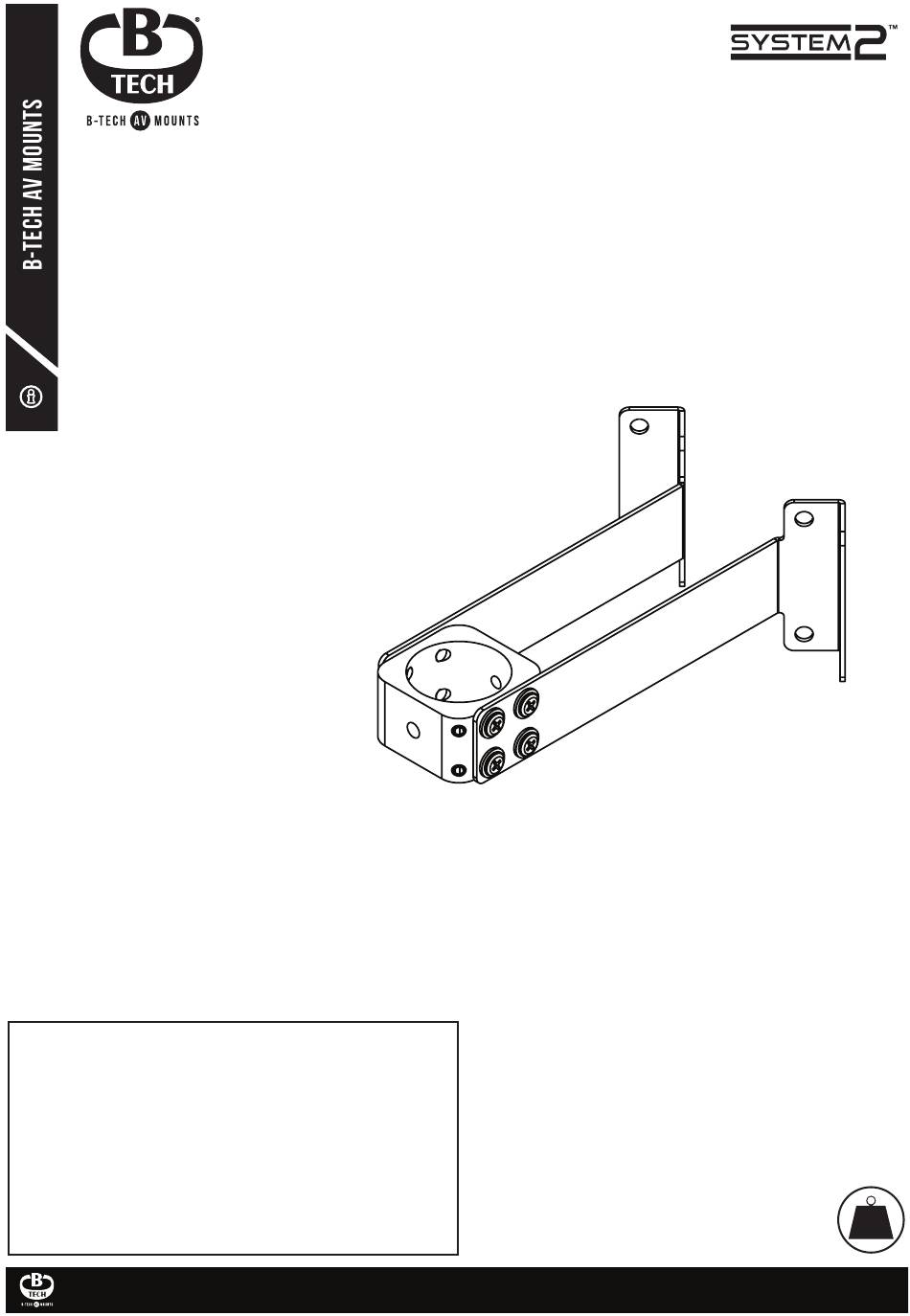

BT7833

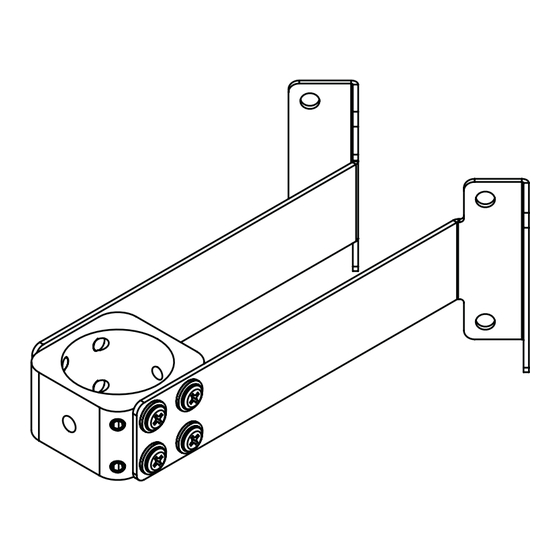

CORNER WALL MOUNTING BRACKET
FOR ∅50MM POLES
INSTALLATION GUIDE
SPECIFICATIONS
• Designed to be used with any length Ø50mm pole
• Max load: 3kg (6.6lbs)
• The product can also be used on both internal
and external corner mounting
• Distance from wall: 213mm to centre of pole
• All mounting hardware included
www.btechavmounts.com
3kg
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for B-Tech SYSTEM2 BT7833
Summary of Contents for B-Tech SYSTEM2 BT7833
- Page 1 BT7833 CORNER WALL MOUNTING BRACKET FOR ∅50MM POLES INSTALLATION GUIDE SPECIFICATIONS • Designed to be used with any length Ø50mm pole • Max load: 3kg (6.6lbs) • The product can also be used on both internal and external corner mounting •...
- Page 2 Please check carefully to make sure there are no missing or defective parts - defective parts must never be used. B-Tech AV Mounts, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.
- Page 4 BT7833 PARTS LIST PLEASE KEEP THIS FOR FUTURE REFERENCE ITEM PART NAME INSTALLATION TOOLS REQUIRED WALL MOUNTING BRACKET M8 x 65 SAFETY BOLT M8 SPRING WASHER Drill Pencil Spanner 4AF HEX KEY 10mm (13/32") Masonry Bit 5AF HEX KEY or 6mm (1/4") Wood Bit M8 x 50mm SCREW No.10 WALL PLUG Suitable for loads up to 3kg (6.6lbs)
- Page 5 INSTALLATION INSTRUCTIONS A. INSIDE CORNER WALL INSTALLATION Attach item 1 to the wall using items 6 & 7. WALL B. OUTSIDE CORNER WALL INSTALLATION Attach item 1 to the wall using items 6 & 7. WALL...
- Page 6 ATTACH POLE TO WALL MOUNT i. Insert the Ø50mm pole (sold separately) into the collar on item 1. COLLAR BT7850 50mm POLE (sold separately) ii. Fix the pole in place using items 2 & 3. iii. Secure pole by tightening the grub screws on item 1 with item 4.
- Page 7 PLEASE KEEP THIS FOR FUTURE REFERENCE TOP VIEW REAR VIEW 252.4mm [9.94in] 245.4mm [9.66in] 213.4mm [8.4in] 90deg 2x 9mm [0.35in] SIDE VIEW THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.
- Page 8 ©2022 B-Tech International Design and Manufacturing Ltd. All rights reserved. B-Tech AV Mounts is a division of B-Tech International Design and Manufacturing Ltd. B-Tech AV Mounts and the B-Tech logo are registered trade marks. All other brands and product names are trademarks of their respective owners.
