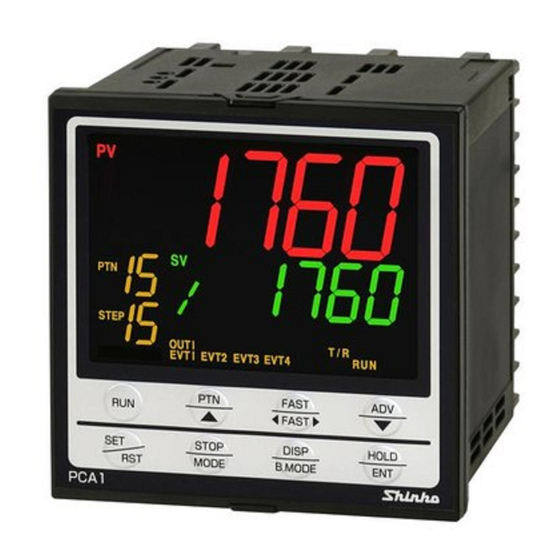

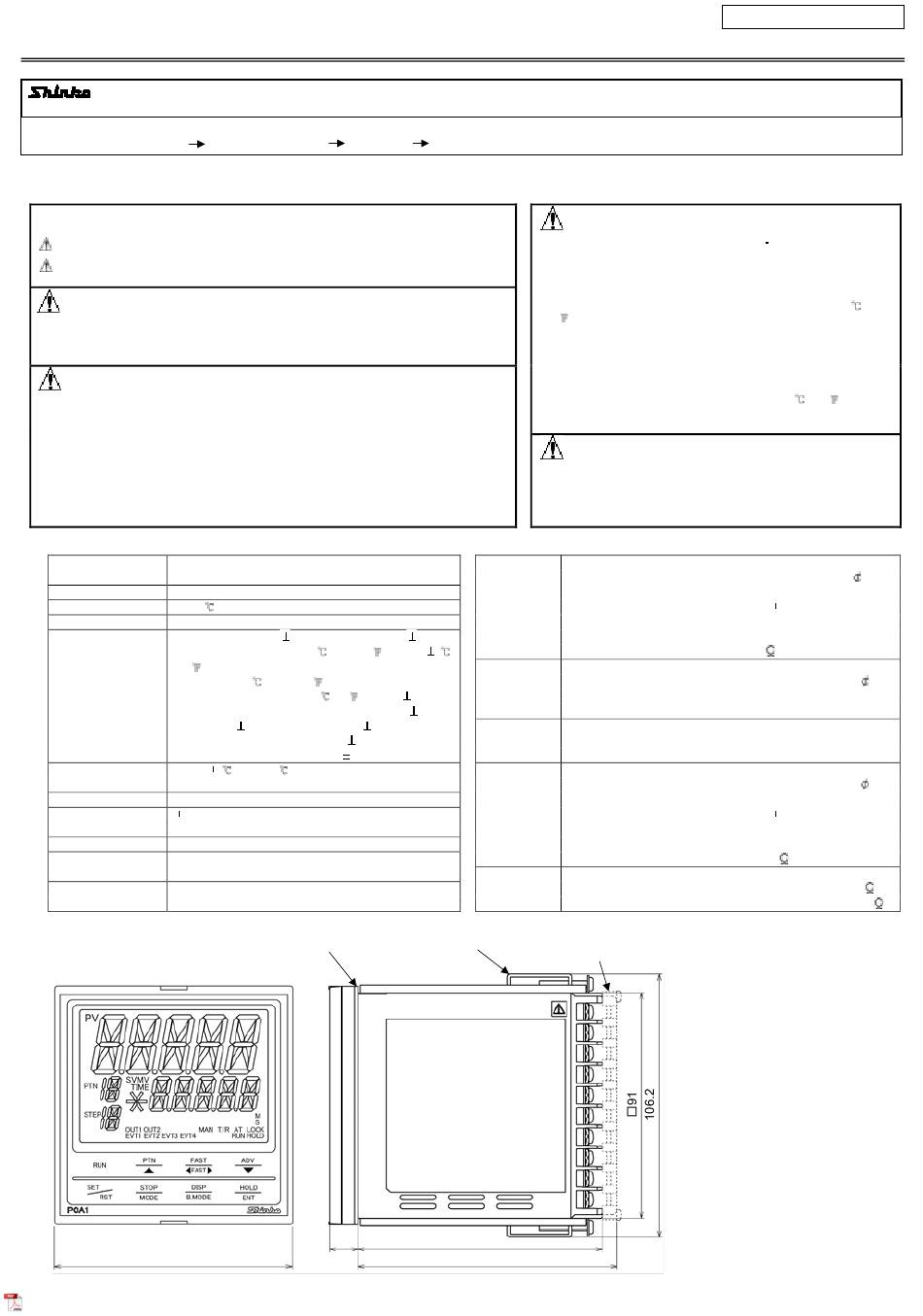

Shinko PCA11JE4 Instruction Manual

INSTRUCTION MANUAL
SHINKO TECHNOS CO., LTD.
For detailed usage, refer to the Instruction Manual for the PCA1. Please download the full Instruction Manual from the Shinko Technos website.
https://shinko-technos.co.jp/e/
Thank you for purchasing our PCA1, Programmable Controller. This manual contains instructions for the mounting, functions, operations and notes when operating the
PCA1. To ensure safe and correct use, thoroughly read and understand this manual before using this instrument. To prevent accidents arising from the misuse of this
instrument, please ensure the operator receives this manual.
Safety Precautions
The safety precautions are classified into 2 categories: "Warning" and "Caution".
Warning: Procedures which may lead to dangerous conditions and cause death or serious injury, if
not carried out properly.
Caution: Procedures which may lead to dangerous conditions and cause superficial to medium injury
or physical damage or may degrade or damage the product, if not carried out properly.
Warning
• To prevent an electrical shock or fire, only Shinko or other qualified service personnel may handle the
inner assembly.
• To prevent an electrical shock, fire or damage to the instrument, parts replacement may only be
undertaken by Shinko or other qualified service personnel.
SAFETY PRECAUTIONS
• To ensure safe and correct use, thoroughly read and understand this manual before using this
instrument.
• This instrument is intended to be used for industrial machinery, machine tools and measuring
equipment. Verify correct usage after purpose-of-use consultation with our agency or main office.
(Never use this instrument for medical purposes with which human lives are involved.)
• External protection devices such as protective equipment against excessive temperature rise, etc.
must be installed, as malfunction of this product could result in serious damage to the system or injury
to personnel. Proper periodic maintenance is also required.
• This instrument must be used under the conditions and environment described in this manual. Shinko
Technos Co., Ltd. does not accept liability for any injury, loss of life or damage occurring due to the
instrument being used under conditions not otherwise stated in this manual.
Specifications
Power supply voltage 100 to 240 V AC 50/60 Hz Allowable fluctuation:85 to 264 V AC
24 V AC/DC 50/60 Hz Allowable fluctuation:20 to 28 V AC/DC
Power consumption Approx. 16 VA
Ambient temperature 0 to 50
Ambient humidity 35 to 85 %RH (Non-condensing)
Base accuracy Thermocouple: Within
However, R, S inputs, 0 to 200 (32 to 392 ): Within
(12 )
B input, 0 to 300
K, J, E, T, N inputs, Less than 0
RTD: Within
Direct current, voltage inputs: Within
Cold junction Within
compensation accuracy
Input sampling period 125 ms
Time indication 0.1% of setting time
accuracy
Weight Approx. 460 g
Accessories Mounting brackets: 1 set
Instruction manual excerpt: 1 copy
Event input Input points: Max. 4 points (When C or C5 option is ordered:
2 points) Circuit current when closed: Approx. 16 mA
External Dimensions
□96
Head office: 2-5-1, Senbahigashi, Minoo, Osaka, 562-0035, Japan
TEL: +81-72-727-6100 FAX: +81-72-727-7006
Support & Downloads Downloads
(Be sure to read these precautions before using our products.)
(No icing, non-condensing)
0.2% of each input span
(32 to 572 ): Accuracy is not guaranteed.
(32 ): Within
input span
0.1% of each input span 1 digit
0.2% of each input
span 1 digit
1 at 0 to 50
(Scale: mm)
Gasket Screw type mounting bracket
11.5
104.5 (when terminal cover is used)
URL: https://shinko-technos.co.jp/e/
Manuals
Caution for Mounting
This instrument is intended to be used under the following environmental
conditions (IEC61010-1)]: Overvoltage category
Ensure the mounting location corresponds to the following conditions:
• A minimum of dust, and an absence of corrosive gases
• No flammable, explosive gases
• No mechanical vibrations or shocks
• No exposure to direct sunlight, an ambient temperature of 0 to 50
122 ) (No icing)
• An ambient non-condensing humidity of 35 to 85 %RH (Non-condensing)
• No large capacity electromagnetic switches or cables through which large
current is flowing
• No water, oil or chemicals or the vapors of these substances can come into
direct contact with the unit
• Take note that the ambient temperature of this unit – not the ambient
temperature of the control panel – must not exceed 50
through the face of a control panel, otherwise the life of electronic components
(especially electrolytic capacitors) may be shortened.
Caution with Respect to Export Trade Control Ordinance
To avoid this instrument from being used as a component in, or as being utilized
in the manufacture of weapons of mass destruction (i.e. military applications,
military equipment, etc.), please investigate the end users and the final use of
this instrument. In the case of resale, ensure that this instrument is not illegally
exported.
Control output Relay contact 1a 1b: Control capacity: 3 A 250 V AC (resistive load)
OUT1
Non-contact voltage (For SSR drive): 12 V DC 15%
1 digit Direct current: 4 to 20 mA DC (Resolution: 12000)
6
Event output Relay contact 1a: Control capacity 3 A 250 V AC (resistive load)
(EV1 to EV4)
0.4% of
1 digit
Time signal Number of circuits: 8
output Open collector: Capacity 24 V DC
(TS option)
Control output Relay contact 1a: Control capacity: 3 A 250 V AC (resistive load)
OUT2 (DR option)
(DR, DS or DA
option) Non-contact voltage (For SSR drive): 12 V DC 15%
(DS option)
Direct current: 4 to 20 mA DC (Resolution: 12000)
(DA option)
Transmission Resolution: 12000
output Output (TA option): 4 to 20 mA DC (Load resistance: Max. 500
(TA, TV option)
Terminal cover
(sold separately)
98.5
