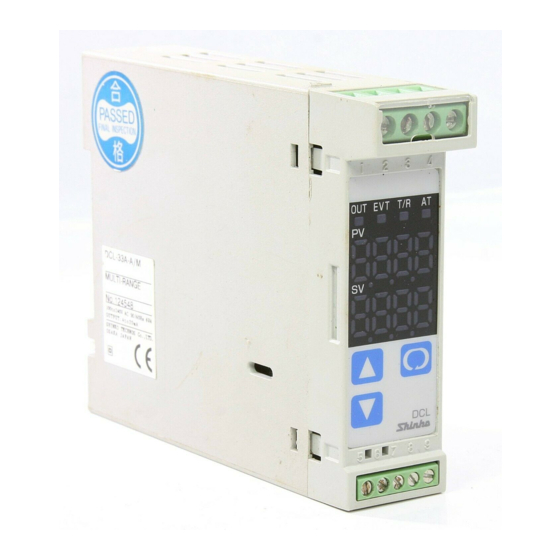

Din rail mounted indicating controller
Hide thumbs Also See for DCL-33A:

Advertisement

Quick Links

Download this manual See also: Instruction Manual
Regulatory temperatury na szynę DIN z serii DCL-33A
COMMUNICATION INSTRUCTION MANUAL
This manual contains instructions for the communication functions, operations and notes when operating the
DCL-33A.
To prevent accidents arising from the misuse of this controller, please ensure the operator receives this
manual.
Warning
Turn the power supply to the instrument off before wiring or checking. Working on or touching the
terminal with the power switched on may result in severe injury or death due to electrical shock.
1. System Configuration

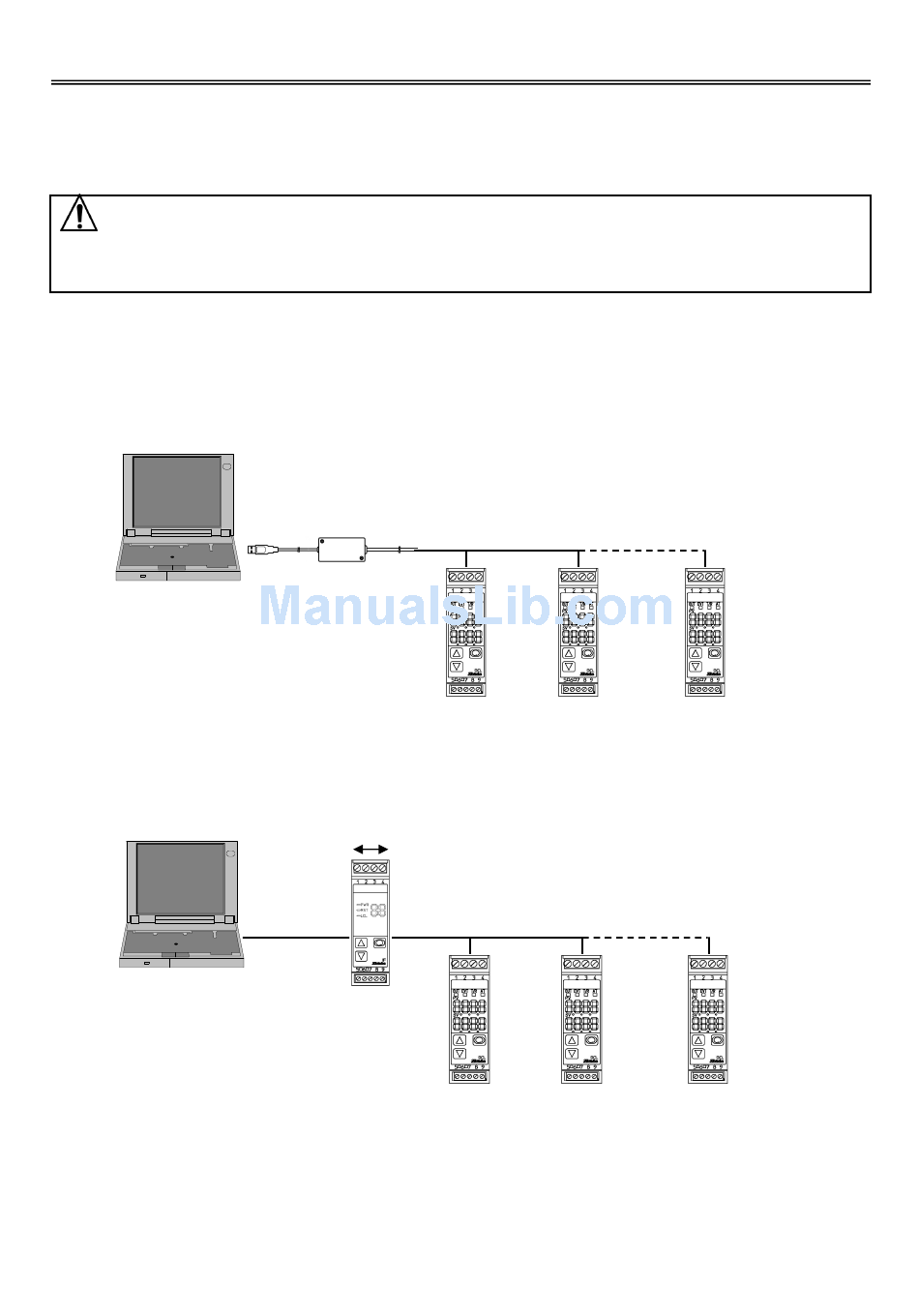

1.1 When Using USB Communication Cable CMC-001-3 (Sold Separately)
Host computer
1.2 When U
sing Communication Converter
Host computer
USB communication
cable CMC-001-3
(sold separately)
DCL-33A
(Fig. 1.1-1)
IF-400 (Sold Separately)
Communication converter
IF-400 (sold separately)
RS-232C
RS-485
(Fig. 1.2-1)
DCL-33A (C5)
DCL-33A
No. 0
No. 1
DCL-33A
DCL-33A
No. 0
No. 1
1
http://acse.pl
No.DCL32CE1 2016.06
DCL-33A
No. 30
DCL-33A
No.-30
