Summary of Contents for Fluke 3563

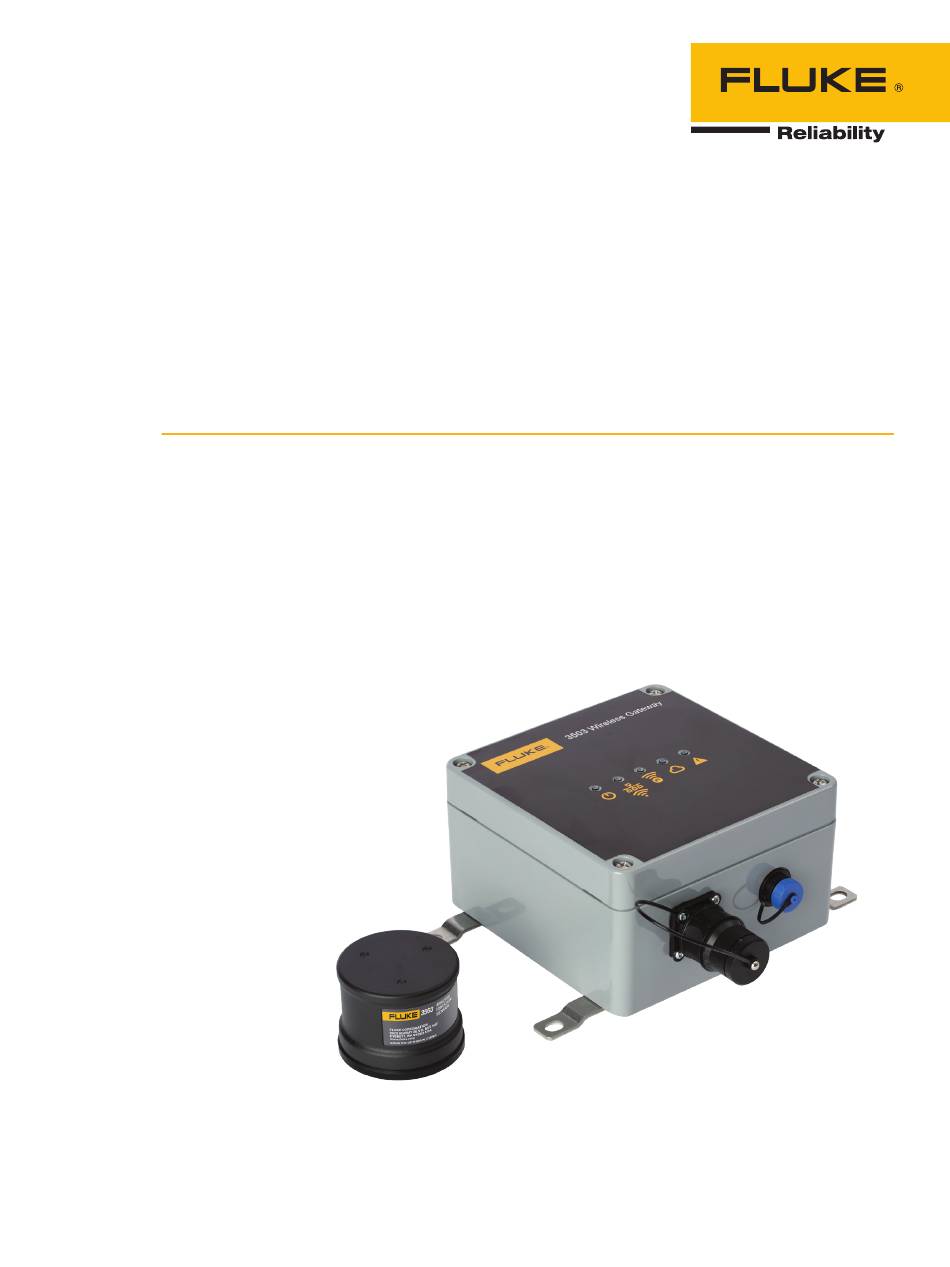

- Page 1 Quick Guide and Checklist Fluke 3563 Sensor/Gateway Installation...
-
Page 2: Steps To Follow
Step 6: Evaluate readings Step-1 Step-2 Step-3 Step-4 Step-5 Step-6 Unpack the Create an account Set up groups, Commission Position/install Evaluate readings product assets, and test gateways, then sensors and points sensors gateways 2 Fluke Corporation Fluke 3563 Sensor/ Gateway - Installation... -
Page 3: Step 1 Unpack The Product
Important: For a successful setup, follow the sequence in these instructions. STOP Do not permanently install sensors/gateways until the very end of Step 5. Watch the setup video to see the system setup and installation: http://www.fluke.com/quickstart 3 Fluke Corporation Fluke 3563 Sensor/ Gateway - Installation... - Page 4 Click the Edit tab to create an Asset hierarchy. The configuration icon is the module where assets are set up. Detailed information about configuration is in LIVE-Asset™ Portal online help. 4 Fluke Corporation Fluke 3563 Sensor/ Gateway - Installation...
- Page 5 7. Use the Device Settings editor to set the interval of the mea- surement cycles (Overall Measurement interval) and data transfer cycles (Overall Reporting interval). For detailed infor- mation, refer to the LIVE-Asset™ Portal online help. 5 Fluke Corporation Fluke 3563 Sensor/ Gateway - Installation...
-
Page 6: Add Gateway
Step 4 Commissioning gateways. Then sensors The Fluke Connect app supports the commissioning process. The app may be downloaded from the App Store (for iOS) or Google Play (for Android). Note: Do the commissioning process at a location with a verified internet connection. - Page 7 Update To Gateway to send information to the gateway. y Add a network: Enter the necessary network details such as SSID (network name), type of security required, and the pass- word. Check the relevant box to save the network to the Fluke account. Commissioning sensors With at least one gateway commissioned, the user may now commission sensors.
- Page 8 Select an inactive gateway, tap Connect to be guided through the process of connecting the gateway to the cloud- based Data Platform. y Tap Skip to bypass the gateway installation and proceed directly with sensor installation. 8 Fluke Corporation Fluke 3563 Sensor/ Gateway - Installation...
- Page 9 1. AFTER connectivity with all sensors has been achieved, tap Continue and mount the sensors permanently at the selected asset test points, as described in the mounting instructions. 2. AFTER mounting the sensors permanently, return to the Fluke Connect App to finalize the permanent installation process.
- Page 10 Mounting instructions. 2. AFTER mounting the gateway(s) permanently, return to the Fluke Connect app to finalize the permanent installation process. Check the Installed box, then tap Done. Check the number of gateways and sensors installed.
