High Voltage Differential Probe
Introduction
The Fluke U1500s High Voltage Differential Probe (the Probe or
Product) is a portable voltage sensor with a 1500 V dc/1000 V ac range
and 0.1 % accuracy.
How to Contact Fluke
To contact Fluke, call one of the following telephone numbers:
•
Technical Support USA: 1-800-44-FLUKE (1-800-443-5853)
•
Calibration/Repair USA: 1-888-99-FLUKE (1-888-993-5853)
•
Canada: 1-800-36-FLUKE (1-800-363-5853)
•
Europe: +31 402-675-200
•
Japan: +81-3-6714-3114
•
Singapore: +65-6799-5566
•
Anywhere in the world: +1-425-446-5500
•
Customer Service Center (Fluke China): + 400-810-3435
•
Maintenance Service Center (Fluke China): +400-921-0835
To view, print, or download the latest manual supplement, visit
http://us.fluke.com/usen/support/manuals.
Go to
www.fluke.com
Safety
A Warning identifies conditions and procedures that are dangerous to
the user.
To prevent personal injury and for safe operation of the
Product:
•
Read all safety information before you use the Product.
•
Use the Product only as specified, or the protection
supplied by the Product can be compromised.
•
Comply with local and national safety codes. Use
personal protective equipment (approved rubber gloves,
face protection, and flame-resistant clothes) to prevent
shock and arc blast injury where hazardous live
conductors are exposed.
PN 5161539 June 2019
©2019 Fluke Corporation.
All rights reserved. Specifications are subject to change without notification.
All product names are trademarks of their respective companies.
to register your product and find more information.
XW Warning
U1500s
Advertisement
Table of Contents
Related Manuals for Fluke U1500s
Summary of Contents for Fluke U1500s

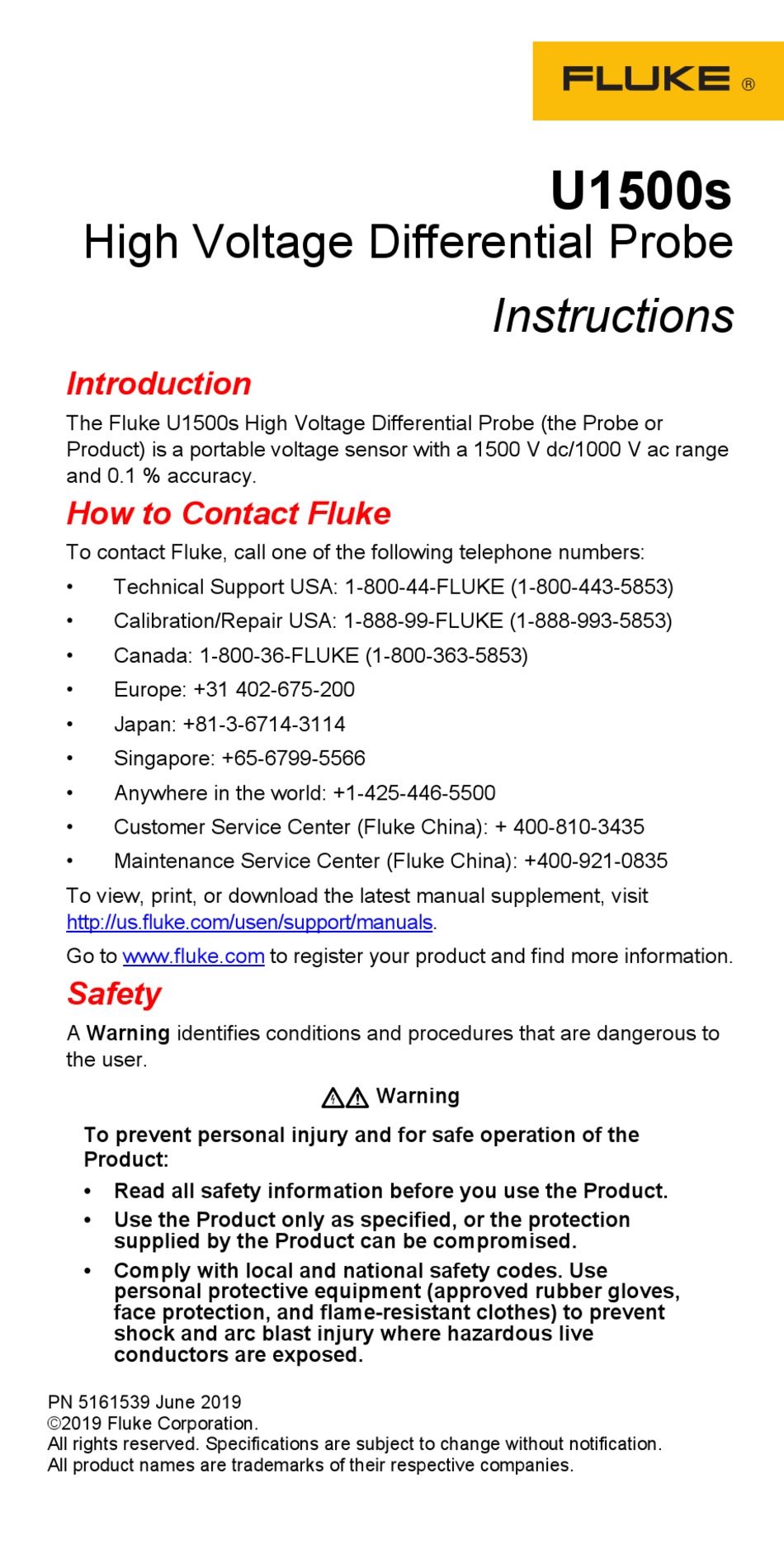

- Page 1 U1500s High Voltage Differential Probe Instructions Introduction The Fluke U1500s High Voltage Differential Probe (the Probe or Product) is a portable voltage sensor with a 1500 V dc/1000 V ac range and 0.1 % accuracy. How to Contact Fluke To contact Fluke, call one of the following telephone numbers: •...
- Page 2 • Examine the case before you use the Product. Look for cracks or missing plastic. Carefully look at the insulation around the terminals. • Do not use the Product around explosive gas, vapor, or in damp or wet environments. • Use Product-approved measurement category (CAT), voltage, and amperage rated accessories (probes, test leads, and adapters) for all measurements.
- Page 3 Table 1. Symbols (continued) Symbol Definition Conforms to relevant Australian Safety and EMC standards. Conforms to relevant South Korean EMC Standards. Measurement Category III is applicable to test and measuring circuits connected to the distribution part of the building’s low- voltage MAINS installation.

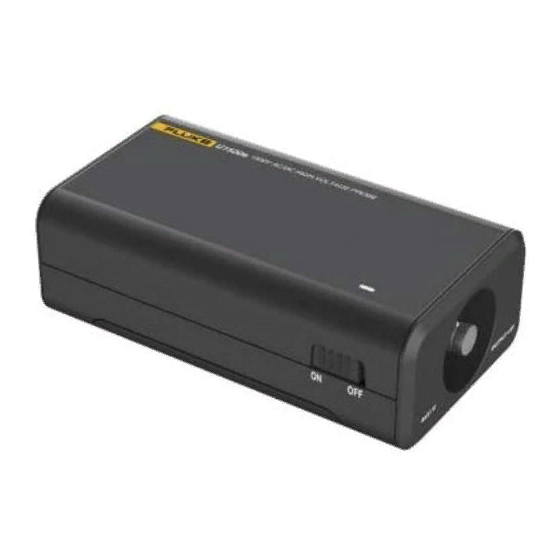

- Page 4 Table 2. The Product Item Description Battery indicator (red flash = low battery, green flash = battery ok) Power switch Output terminal Battery door fastener Input terminals Output Test lead Battery XW Warning To prevent possible electrical shock, fire, or personal injury: •...
- Page 5 Figure 1. Battery Installation Maintenance If the Product fails inspection, tape it shut to prevent unintended operation. XWWarning To prevent electric shock, fire or personal injury: • Before each use, examine the Product. Do not use the Product if it is damaged. •...
- Page 6 General Specifications Maximum between any Terminal and Earth Ground......1000 V ac rms, continuous, 1500 V dc (Single-range) Input Impedance ......10 MΩ / <10 pF Dimensions ......... 138 mm x 75 mm x 45 mm Input terminal ......4 mm banana jacks Output terminal......
- Page 7 Korea (KCC......Class A Equipment (Industrial Broadcasting and Communication Equipment Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes. USA (FCC ........
- Page 8 LIMITED WARRANTY AND LIMITATION OF LIABILITY This Fluke product will be free from defects in material and workmanship for one year from the date of purchase. This warranty does not cover fuses, disposable batteries, or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling.
