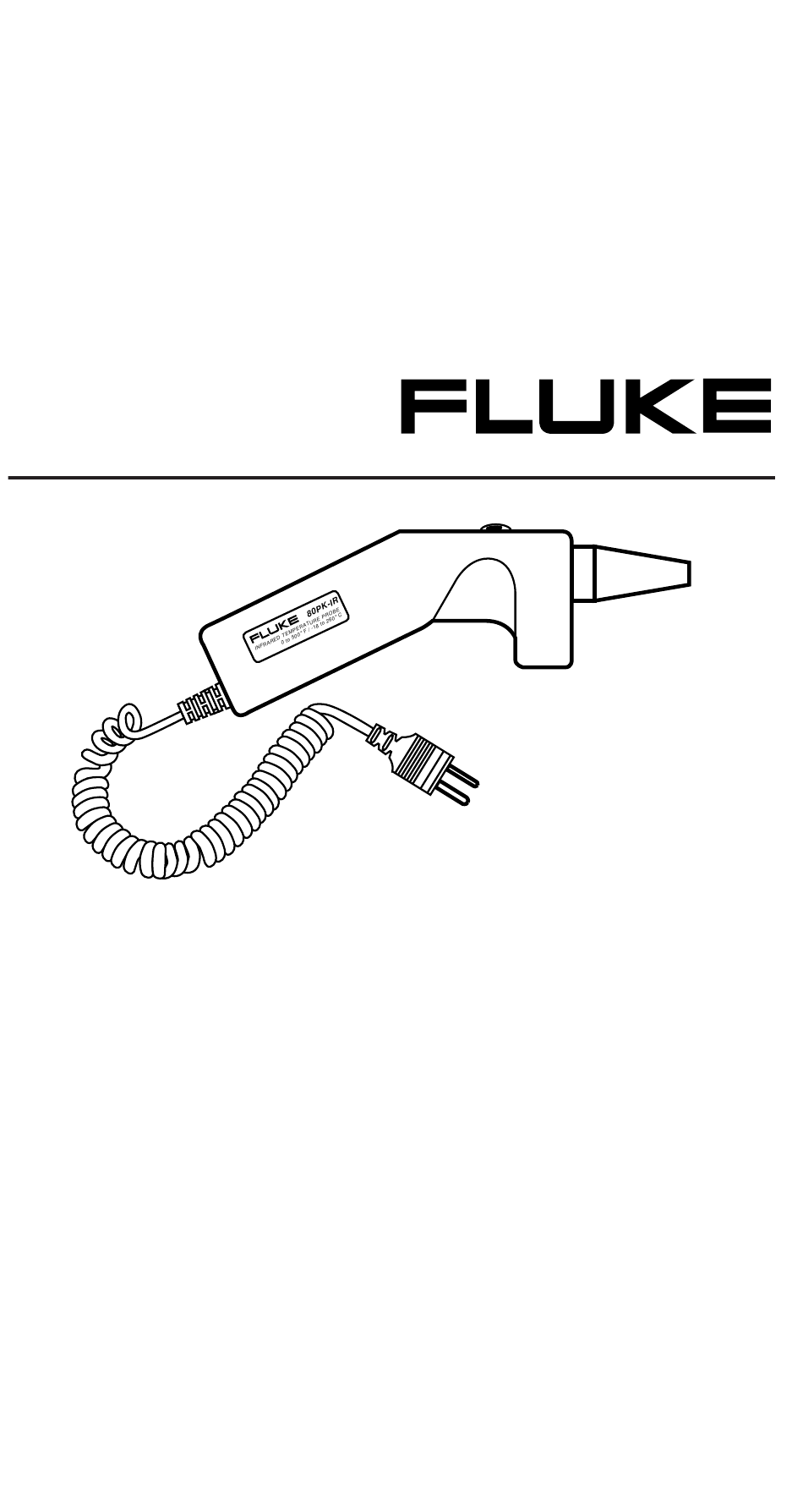

80PK-IR
Infrared Thermocouple Probe
Instruction Sheet
®
INTRODUCTION

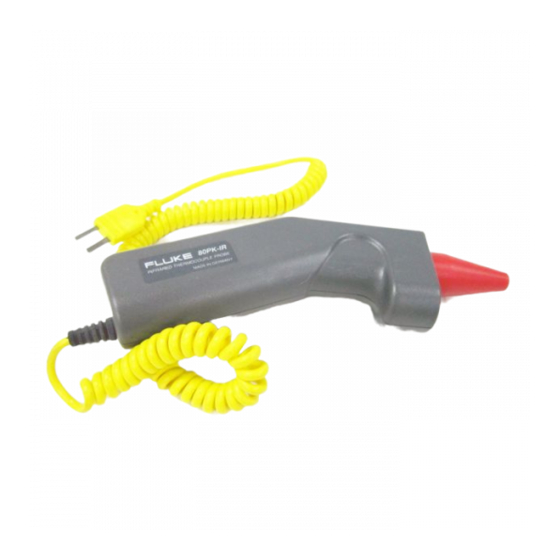

The Fluke 80PK-IR Infrared Thermocouple Probe (the
probe) is a noncontact temperature measurement acces-
sory for use with a digital Type K thermometer. The probe
has a temperature range of -18°C to 260°C (0°F to 500°F),
with a basic accuracy of 3% of reading, and a Type K
miniature thermocouple connector.
Temperature is measured by pointing the probe at the
surface to be measured and reading the temperature on
the thermometer display.
Box Contents
Thermocouple Probe, Battery, Instruction Sheet, Quick
Reference Card and Warranty Card.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 80PK-IR and is the answer not in the manual?

Questions and answers

Related Manuals for Fluke 80PK-IR

Summary of Contents for Fluke 80PK-IR

  • Page 1 Instruction Sheet ® INTRODUCTION The Fluke 80PK-IR Infrared Thermocouple Probe (the probe) is a noncontact temperature measurement acces- sory for use with a digital Type K thermometer. The probe has a temperature range of -18°C to 260°C (0°F to 500°F), with a basic accuracy of 3% of reading, and a Type K miniature thermocouple connector.

  • Page 2: Safety Information

    SAFETY INFORMATION The 80PK-IR complies with IEC Publication 1010-1-1990 including Amendment 1, CSA C22.2 No. 231, ANSI/ISA- S82.01 and .03 Safety Standards. WARNING IF TARGET EMISSIVITY IS LESS THAN 0.95, THE PROBE CAN INDICATE A TEMPERATURE LOWER THAN THE ACTUAL TARGET TEMPERATURE.

  • Page 3: Operation

    COMPATIBILITY The probe is compatible with all digital thermometers that accept standard miniature Type K polarized thermocouple plugs with flat, in-line blades spaced 7.9 mm (0.312 in.) center-to-center. OPERATION To take a measurement, perform the following steps: 1. Plug the yellow connector into the miniature Type K jack on the thermometer.
  • Page 4 Avoid touching or holding cone MAX HOLD REC T1-T2 ON/OFF switch ON/OFF Battery HOLD T1-T2 clip RECORD VIEW MIN/MAX Battery 9V DC OFFSET OFFSET Coiled cable Battery door Figure 1. • If target emissivity is less than 0.95, wait until the target is at a safe temperature, then apply a high emissivity coating to the surface (such as flat black paint or masking tape.)
  • Page 5 Table 1. Display Codes* Condition Action Target temperature is over 270°C (518°F) Select target within or under range. probe’s specified -30°C (-22°F) temperature range. 280°C (536°F) The temperature of the Ensure that the probe probe is near either the is within the specified high or low ambient op- -45°C (-49°F) ambient operating...
  • Page 6 Figure 2.

  • Page 7: Specifications

    Distance to Spot Size Ratio Distance to Spot Size Ratio (or Field of View) refers to the diameter of the spot that the probe is sensing at a given distance. The closer you are to the object (or target), the smaller the area (or spot) the probe is sensing.

  • Page 8: Maintenance

    Optical Resolution: 4 to 1 distance to spot size ratio Spectral Response: 8 to 14 microns nominal Target Emissivity: Probe calibrated for 0.95 Output: Type K thermocouple volt- age characteristics Relative Humidity: 95% or less @ 30°C (86°F) noncondensing, Temp. Coef.

  • Page 9: Limited Warranty And Limitation Of Liability

    LIMITED WARRANTY & LIMITATION OF LIABILITY Each Fluke product is warranted to be free from defects in material and workmanship under normal use and service. The warranty period is 1 year and begins on the date of shipment. Parts, product repairs and services are warranted for 90 days.
  • Page 10 1-800-825-9810. Outside the U.S.A., contact the nearest Fluke Service Center. Calibration Fluke recommends that the user return the probe annually to a Fluke Service Center for calibration, starting one year after purchase. Replacement Part Battery (Alkaline) - PN 614487 For application or operation assistance or information on Fluke products, call: 800-443-5853 (800-44-FLUKE) in the U.S.A.
