Quick
Start
Guide

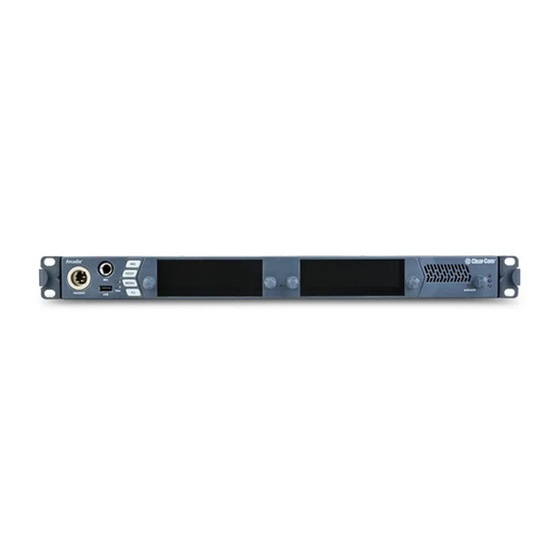

Arcadia® Central Station is a scalable IP intercom platform integrating FreeSpeak® wireless and HelixNet® wired
intercom user stations with Dante, 2-Wire, 4-Wire and GPIO interfaces. Arcadia features licensed capacity and an
easy-to-use CCM browser interface for setup, configuration and system monitoring in a compact 1RU device.
FreeSpeak Wireless Intercom with up to 40 beltpacks* via up to 16 IP and/or 10 E1 transceivers on 2 splitters
HelixNet Wired Intercom with up to 64 user stations using up to 24 HelixNet Enabled Channels*
Dante Audio Network Interface ports with up to 64 ports*
2-Wire Powered Partyline, 4-Wire Audio Line-Level and GPIO Control Interfacing

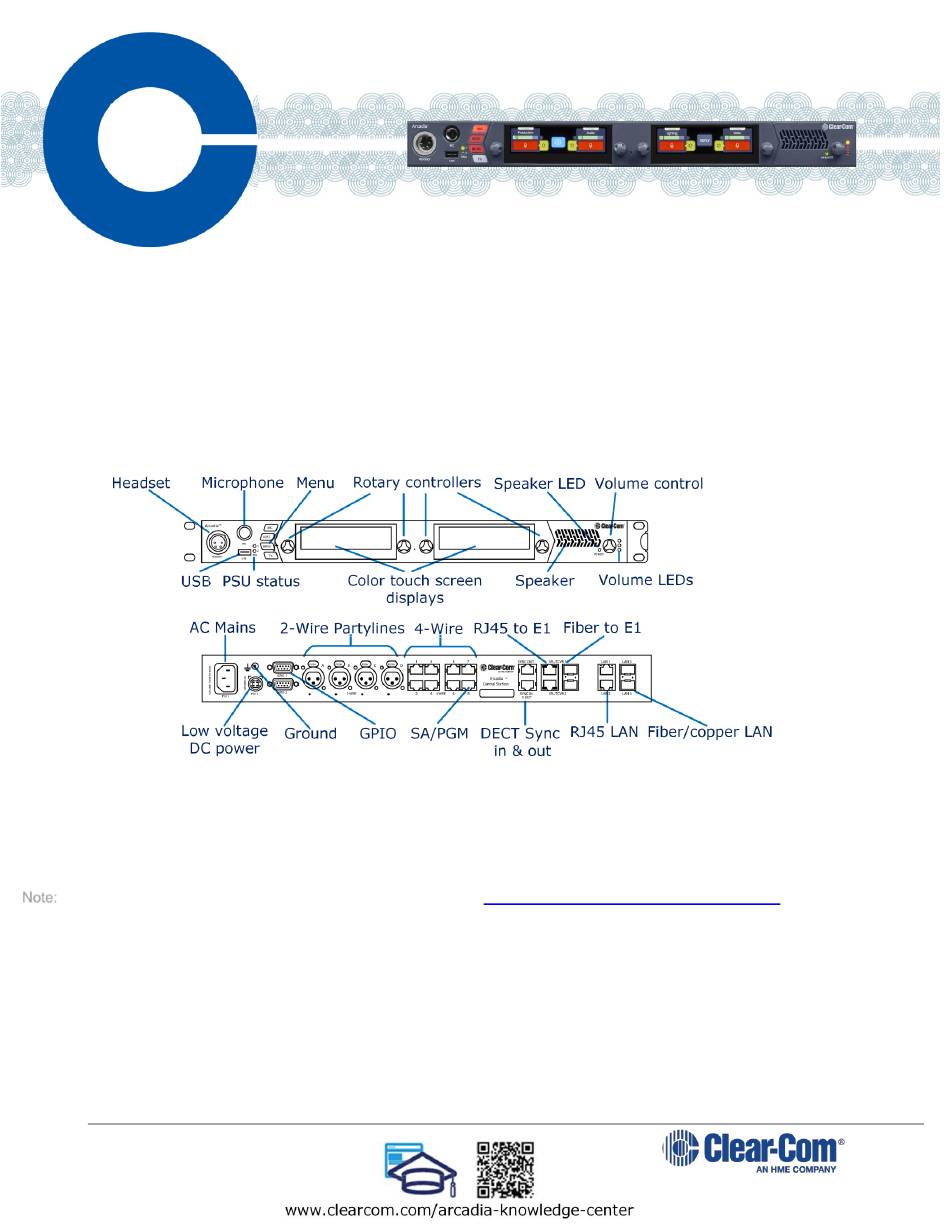

Arcadia Connectors, Controls and Indicators

Arcadia Host Name and Network Settings

Arcadia ships with a default Host Name that is visible when pairing FreeSpeak beltpacks and HelixNet user stations.
The name can be found and edited in the Front Panel Menu: Host Settings>Host Name and CCM Hardware>Host.
Arcadia allows flexible assignments of system functions to its 4 LAN ports configured from CCM
Hardware>Host>Network. By default, LAN1 is configured for Management/HelixNet and AES67 for FreeSpeak IP
Transceivers in DHCP and defaulting to 169.254.... Link-Local IP addresses if a DHCP is not present.
Note:
Information on AES67 networks: AoIP Network Guide at
Clear-Com recommends use of DHCP addressing for FreeSpeak IP Transceivers and HelixNet User Stations.
Ensure that two different LAN ports are not on the same subnet or virtual LAN.
Accessing the Arcadia CCM for System Setup, Configuration and Status Monitoring
Arcadia's CCM, Core Configuration Manager, allows easy setup, configuration and status monitoring of your system.
1. Connect Arcadia Central Station's Management port (Default: LAN 1) to a network along with your computer.
2. Front Panel: Use rotary controllers to navigate to: Networking>Management>IP Address.
3. Web browser: Enter the IP address from step 2.
4. Front Panel Menu: Use rotary controllers to navigate to: Administration>CCM Access>Default Password.
5. Web browser: Log In using the username ("admin") and the factory default password from step 4.
07 September 2022
PN: PUB-00018 Rev D
Arcadia Central Station
Arcadia Central Station Knowledge Center
* Requires sufficient number of Licensed Ports
(QR code).
