Wiring Thermostat to Communicating Systems

Maximum wire distance between the Daikin One+ and the
»
indoor unit should not exceed 125 feet using 18-gauge wire.
For installing the Daikin Fit outdoor system, it is strongly
»
recommended (for best results) to use 18-gauge wire.
Check for proper voltage before and after wiring
»
is installed.
0.6 VDC between Data 1 and 2
–
24 VAC between common and power
–
Wiring communicating indoor unit to communicating
»
outdoor units.

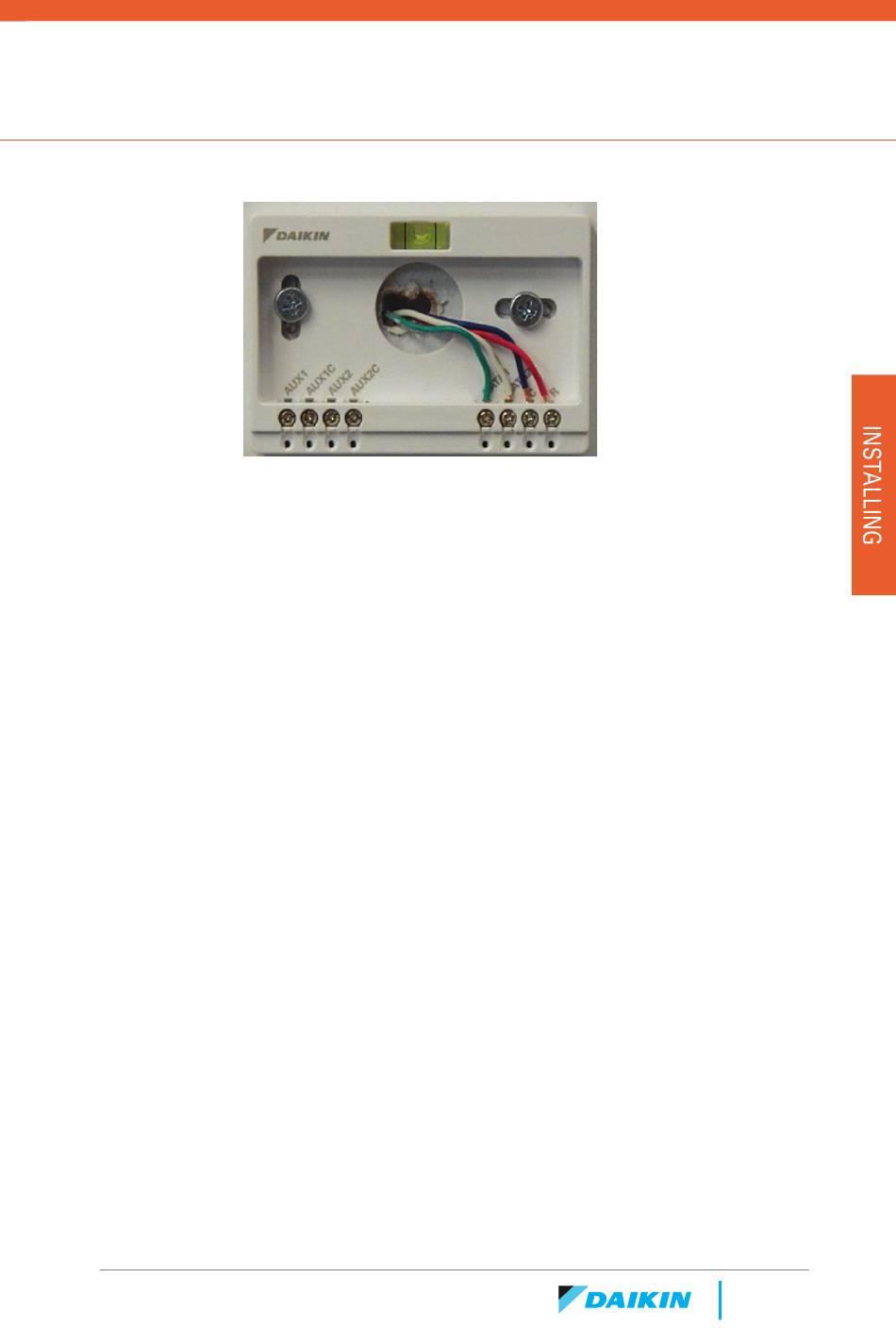

Connect 1, 2, C and R from the Daikin One+, to 1, 2, C
–
and R at the indoor unit.
Connect wires 1 and 2 from the indoor unit to 1 and 2
–
at the outdoor unit.
Wiring communicating indoor furnace unit to non-communicating
»
outdoor units.
Connect 1, 2, C and R from the Daikin One+, to 1, 2, C and R
–
at the indoor furnace unit.
Connect wire Y1 from the indoor furnace unit to Y1 at
–
the outdoor unit
Under Equipment Setup add '24 VAC Condenser'.
–
Under '24 VAC Condenser' select the matching kBTU
–
from 'cool CFM' settings
