Wiring Troubleshooting - Daikin One+ Reference Manual

Wiring Troubleshooting

The following steps require no power to be applied.
Check for any loose, disconnected, broken, or shorted wires
–
between all connected components BEFORE applying power
No short between Data 1 or Data 2 wires and R (24 VAC) or
–
C (24 VAC common)
Check for Data 1 and Data 2 wires reversed at the indoor unit,
–
thermostat, or outdoor unit
After fixing all the wiring issues apply power
Check for 24 VAC across R (24 VAC) and C
–
(24 VAC common) terminals

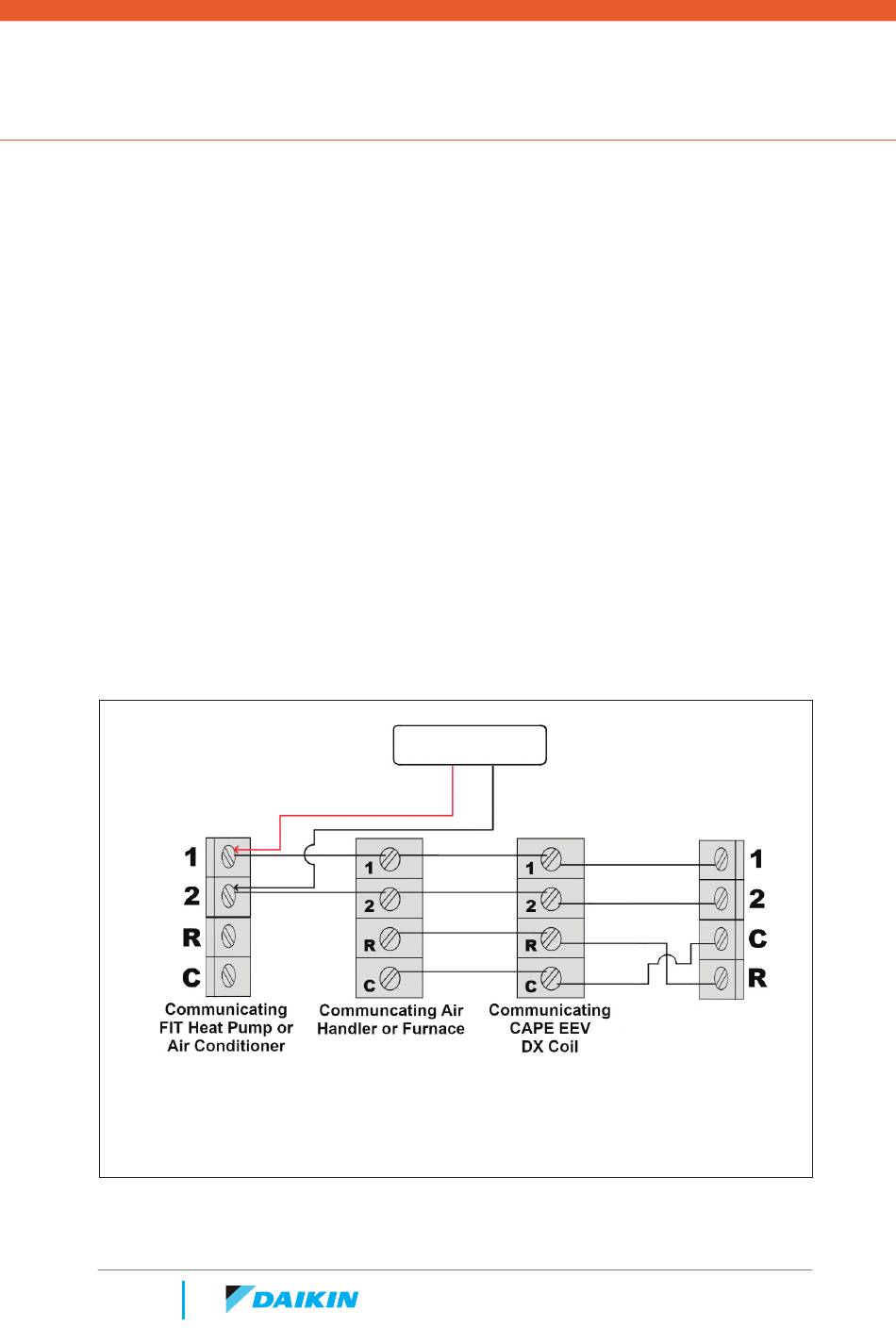

If there are still problems discovering the indoor or outdoor
–
equipment then check for bias reading of 0.6 VDC. Bias reading
of 0.6 VDC indicates a robust network that can handle high data
volume without lock-up.
NOTES: If Bias reading is below 0.6 VDC, check the TERM Dip-Switch (DS1) setting
on the outdoor unit. Move the TERM Dip-Switch (DS1) to OFF Position. This
should improve the Bias reading to 0.6 VDC
20
0.6 VDC
Daikin One+
Smart Thermostat
