How to Configure Heat Kit

Heater kit configuration varies based on the type of the Indoor units.
DVPEC/DVFEC
Some details have advanced settings.
DVPVC, DVPTC, MBVC
36
Navigate to heater kit size sub-menu
»
under the Air Handler
Insxtaller Wizard > equipment
setup > air handler > heater kit >
size (kW) > Select the heater kit
size by scrolling available 'size(kW)'
options.
If required, adjust 'electric heat
»
airflow trim'
Installer Wizard > equipment setup
> air handler > heater kit > electric
heat airflow trim
Use dip switches on the board to
»
configure the heater kit size. Please
refer to the installation manual
of these boards to locate the dip
switches.
Heater kit size configured with
»
dip switches will appear under
Installer Wizard > equipment setup
> air handler > heater kit > size (kW)
Enable 'heater kit installed' checkbox.
Installer Wizard > equipment setup
> air handler > heater kit installed

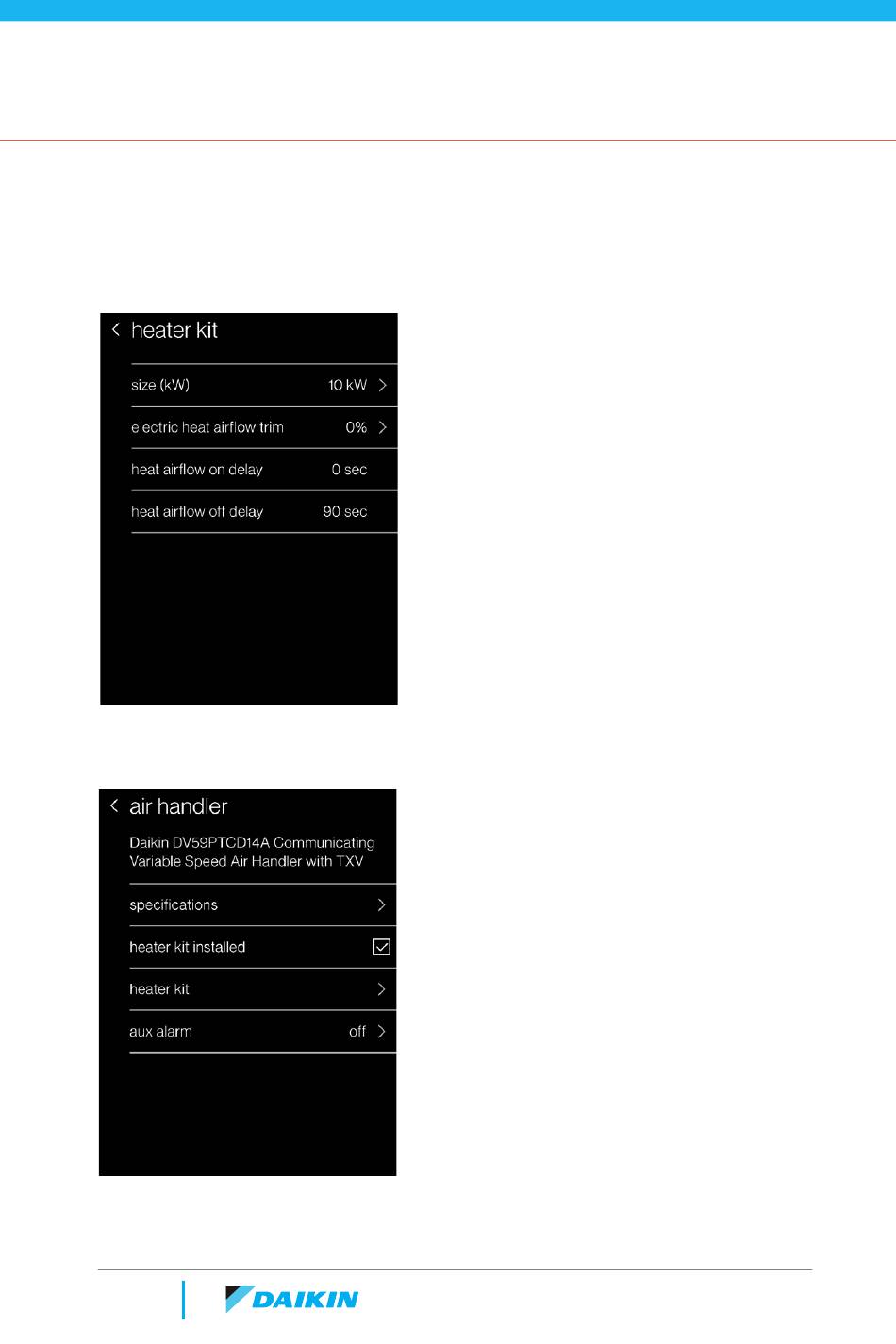

'heater kit' sub-menu
»
appears on enabling 'heater
kit installed' checkbox
Inside 'heater kit' sub-menu 'heat
»
airflow trim' value can be adjusted
