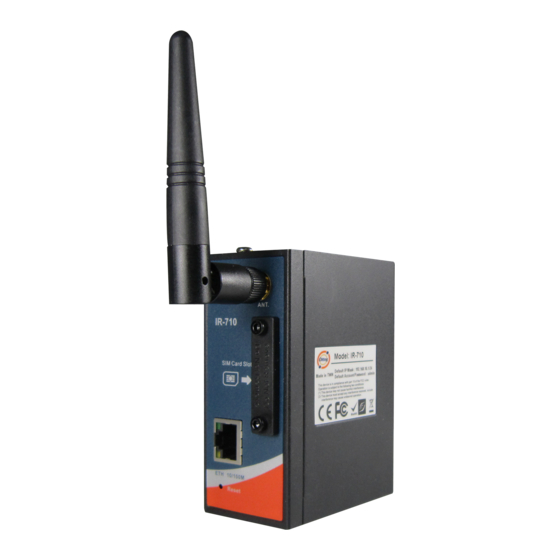

Summary of Contents for ORiNG IR-710

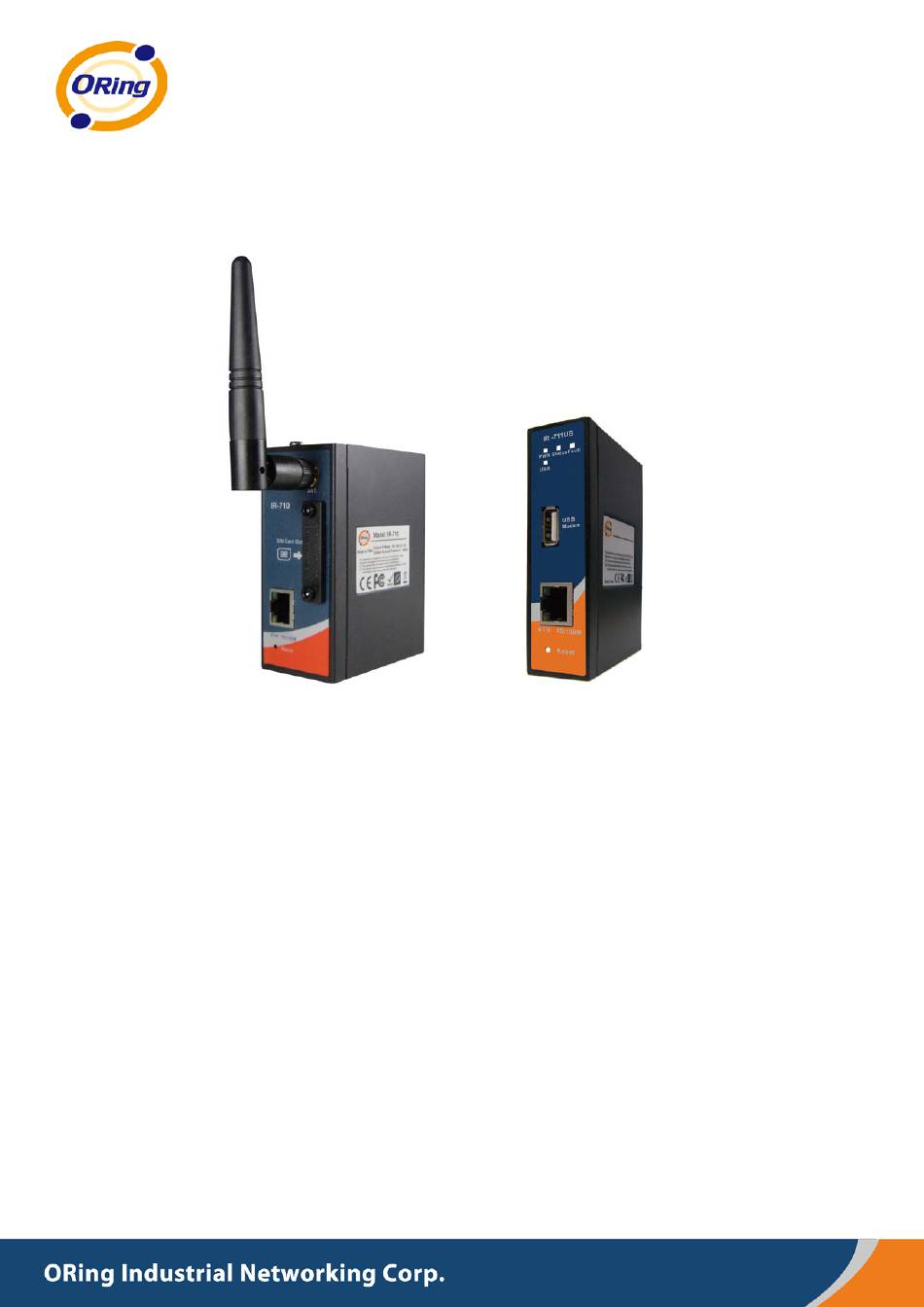

- Page 1 ’ ’...
- Page 2 ORing warrants that all ORing products are free from defects in material and workmanship for a specified warranty period from the invoice date (5 years for most products). ORing will repair or replace products found by ORing to be defective within this warranty period, with shipment expenses apportioned by ORing and the distributor.
-
Page 3: Table Of Contents
Hardware Features ....................1 Hardware Installation ..................2 DIN-Rail Installation ....................2 Wall-Mounted Installation ..................3 SIM Card Installation (IR-710 only)................ 4 3G USB Modem Installation (IR-711UB only) ............4 Hardware Overview ..................5 Front Panel ......................5 Front Panel LEDs ....................6 Cables and Antenna .................. - Page 4 IR-710 / IR-711UB User’s Manual Save/Restore Configurations .................. 34 Remote management ..................... 35 Miscellaneous (Ping) ....................35 5.3.4 System Status ....................36 System Info......................36 System Log......................36 Traffic Statistics ....................... 37 Technical Specifications ..............38 ORing Industrial Networking Corp.
-
Page 6: Getting To Know Your Router
Event Warning by Syslog, Email, SNMP Trap, Relay and Beeper Hardware Features Built-in HSUPA Cellular Modem with SIM card slot included for WAN connection (IR-710) USB port for installing user-selectable 3G USB modem for WAN connection (IR-711UB) ... -
Page 7: Hardware Installation
IR-710 / IR-711UB User’s Manual Hardware Installation DIN-Rail Installation IR-710 / 711UB has DIN-Rail Kit on rear panel. The DIN-Rail kit helps AP to fix on the DIN-Rail. It is easy to install the router on the DIN-Rail. ORing Industrial Networking Corp. -
Page 8: Wall-Mounted Installation
IR-710 / IR-711UB User’s Manual Wall-Mounted Installation IR-710 / 711UB has another installation method to secure the router. A wall mount panel can be found in the package. ORing Industrial Networking Corp. -
Page 9: Sim Card Installation (Ir-710 Only)
3. Install SIM card into its slot. 4. Replace the cover. 5. Fasten the screws. Important Notice: POWER DOWN THE IR-710 BEFORE INSTALLING SIM CARD. 3G USB Modem Installation (IR-711UB only) 3G USB Modem NOTE: USB modems (not included in the... -
Page 10: Hardware Overview
IR-710 / IR-711UB User’s Manual Hardware Overview Front Panel The following table describes the labels that stick on the IR-710 / IR-711UB Port Description 10/100 Base-T(X) 10/100Base-T(X) fast Ethernet ports support auto-negotiation. Fast Ethernet Ports Default Setting : Speed: auto... -
Page 11: Front Panel Leds
8. LED for Ethernet port active 9. 10/100Base-T(X) RJ45 fast Ethernet port 10. LED for Ethernet ports speed 11. 850/900/1800/2100MHz antenna for internal HSUPA modem (IR-710 only) 12. Cellular Modem with SIM card slot (IR-710 only) Front Panel LEDs Color... -
Page 12: Cables And Antenna
Antenna Ethernet Cables The IR-710 / IR-711UB router has one 10/100Base-T(X) Ethernet ports. According to the link type, use CAT 3, 4, 5,5e UTP cables to connect to any other network device (PCs, servers, switches, routers, or hubs). -
Page 13: Wireless Antenna (Ir-710 Only)
IR-710 / IR-711UB User’s Manual MDI/MDI-X pins assignment Pin Number MDI port MDI-X port TD+(transmit) RD+(receive) TD-(transmit) RD-(receive) RD+(receive) TD+(transmit) Not used Not used Not used Not used RD-(receive) TD-(transmit) Not used Not used Not used Not used Note: “+” and “-” signs represent the polarity of the wires that make up each wire pair. -
Page 14: Management Interface
IR-710 / IR-711UB User’s Manual anagement Interface First-time Installation Before installing IR-710 / IR-711UB router, you need to access the router by a computer equipped with an Ethernet card. Using an Ethernet card to connect to LAN port is easier and is recommended. -
Page 15: Router Configuration
IR-710 / IR-711UB User’s Manual Step 3: Use the web-based manager to configure IR-710/IR711UB The default gateway IP of IR-710/IR711UB router is 192.168.10.1. Start the web browser of your computer and type http://192.168.10.1 in the address box to access the webpage. -
Page 16: Main Interface
Show the elapsed time since the AP router is started. Wan IP Show the WAN IP address. 5.3.1 Basic Setting The IR-710 / IR-711UB router provides Modem/3G connection. WAN Connection Type: Modem / 3G For using this type of connection, use the built-in HSUPA modem. ORing Industrial Networking Corp. - Page 17 IR-710 / IR-711UB User’s Manual Modem/3G Screen The following table describes the labels in this screen. Label Description Phone Number Telephone number provided by your ISP. Enter the APN value it is optional User Name User name provided by your ISP.
-
Page 18: Lan
IR-710 / IR-711UB User’s Manual These are the IP settings of the LAN interface for the IR-710 / IR-711UB router. The LAN IP address is privately for your internal network and cannot be exposed on the Internet. LAN Screen The following table describes the labels in this screen. - Page 19 The IP Allocation provides one-to-one mapping of MAC address to IP address. When computers with the MAC address requesting an IP from the IR-710 / IR-711UB router, it will be assigned with the IP address according to the mapping. You can choose one from the client lists and add it to the mapping relationship.
-
Page 20: Advanced Settings
IR-710 / IR-711UB User’s Manual 5.3.2 Advanced Settings NAT Setting 1. Virtual Server Virtual Server is used for setting up public services on the LAN, such as DNS, FTP and Email. Virtual Server is defined as a Local Port to the LAN servers, and all requests from Internet to this Local port will be redirected to the computer specified by the Local IP. - Page 21 IR-710 / IR-711UB User’s Manual 2. Port Trigger Some applications require multiple connections, like Internet games, video conferencing, Internet calling and so on. These applications cannot work with a pure NAT router. Port Trigger is used for some of the applications that can work with an NAT router.
- Page 22 IR-710 / IR-711UB User’s Manual DMZ Screen The following table describes the labels in this screen. Label Description Enable or disable the DMZ. Description Description for the DMZ host entry. DMZ Host IP Enter the IP address of the computer to be in the DMZ.
-
Page 23: Security Setting
IR-710 / IR-711UB User’s Manual Application: The application that generates this port forwarding. Ext Port: The port opened on WAN side. Protocol: The protocol type. Int Port: The port redirected to the local computer. IP Address: The IP address of local computer to be redirected to. -
Page 24: Vpn Setting
IR-710 / IR-711UB User’s Manual Enable Now Enable the entry after adding it. IP filter list Click edit for editing the entry, click Del to delete the entry. 2. MAC Filter Filters are used to deny or allow LAN computers from accessing the internet, according to their MAC address. - Page 25 The following topology shows the common use of VPN connection from WAN side. 1: Open VPN Server Connection to Open VPN Server Before connecting to the Open VPN server of IR-710 / IR-711UB router, please install ORing Industrial Networking Corp.
- Page 26 Open VPN client software for your windows PC. It can be downloading from http://Open VPN.net/download.html#stablel. The current version of Open VPN used in IR-710 / IR-711UB is version 2.0.9. The corresponding software for client should be installed. The following table describes the labels in this screen.
- Page 27 IR-710 / IR-711UB User’s Manual 3: Open VPN Server VS Client The chart above displays the connection of Open VPN Server and Client. The Server IP and Client IP address should configure with the same network domain. 2. PPTP VPN The PPTP (Point to Point Tunneling Protocol) VPN feature allows PC connected to the router from WAN port, just like connecting in the LAN.
- Page 28 IR-710 / IR-711UB User’s Manual PPTP VPN Screen The following topology shows the common use of PPTP connection from the internet. Connection to PPTP VPN Server The following table describes the labels in this screen. Label Description PPTP Server Enable or disable PPTP VPN Server.
- Page 29 IR-710 / IR-711UB User’s Manual connected client will be assigned the IP address. CHAP-Secrets Enter the username and password pairs, format is as user * pass *, multiple username password pairs are allowed. 3. PPTP Client If the router A want to link with the others which is not in the same network with the router A, the function of PPTP client should support in the router page.
- Page 30 IR-710 / IR-711UB User’s Manual The following table describes the labels in this screen. Label Description PPTP Client Enable or disable PPTP Client. Server Enter the server IP address or hostname. IP/Hostname Username/Pass Enter the username and password which is signed by PPTP server.
-
Page 31: Routing Protocol (Routing Setting)
IR-710 / IR-711UB User’s Manual Routing Protocol (Routing Setting) This page shows the information of routing table. The initial state of the router connect to the WAN, it will be based on the outside networks to access the routing table automatically. You can refer the shows about the bellow page. - Page 32 IR-710 / IR-711UB User’s Manual The following table describes the labels in this screen. Label Description Current Routing Show the current the routing information. Table Static Router Not RIP and enter the right value in the textbox will be showing.
- Page 33 IR-710 / IR-711UB User’s Manual Use the dynamic routing; it will have many ways such as RIP, OSPF.BGP. In this router, we use the RIP Protocol to finish the dynamic routing table. The Routing Topography RIP, Routing Information Protocol, is a dynamic routing protocol used in local and wide area networks.
-
Page 34: Miscellaneous Ddns
IR-710 / IR-711UB User’s Manual Miscellaneous DDNS Dynamic Domain Name Server is to keep a domain name linked to a dynamic IP address. DDNS Screen For example, Choose DDNS Service: www.3322.org and configure the following instructions: The following table describes the labels in this screen. -
Page 35: Miscellaneous Snmp
IR-710 / IR-711UB User’s Manual Miscellaneous SNMP SNMP Settings SNMP Settings The following table describes the labels in this screen. Label Description SNMP (Simple Network Management Protocol) agent communicates with the SNMP manager. The agent provides SNMP Agent management information to the NMS by keeping track of various operational aspects of the system. -
Page 36: System Tools
IR-710 / IR-711UB User’s Manual 5.3.3 System Tools Date & Time In this page, you can set the date & time of the device. The correct date & time will be helpful for logging of system events. A NTP (Network Time Protocol) client can be used to synchronize date &... -
Page 37: System Event
IR-710 / IR-711UB User’s Manual System Event When the WAN Link Down is triggered, the notification procedure will be performed Login Setting At this page, the administrator can change the login name and password. The default name and password is admin and admin. -
Page 38: Router Restart
IR-710 / IR-711UB User’s Manual New Password Enter a new login password. Acceptable characters of this field contains '0-9', 'a-z', 'A-Z' and must be between 0 to 15 characters in length. Confirm New Password Retype the password to confirm it. Acceptable inputs of this field contains '0-9', 'a-z', 'A-Z' and must be between 0 to 15 characters in length. -
Page 39: Save/Restore Configurations
IR-710 / IR-711UB User’s Manual Newer firmware may provide better performance or function extensions. upgrade the new firmware, you need a firmware file which matches the model of this AP router. It will take several minutes to upload and update the firmware. After the upgrade is done successfully, reboot the router to utilized new firmware. -
Page 40: Remote Management
IR-710 / IR-711UB User’s Manual Remote management Set the Remote Management to access the Router web pages from WAN side. Miscellaneous (Ping) Miscellaneous Screen The Ping Test is used to send Ping packets to test if a computer whether it is on the Internet or test if the WAN connection is OK. -
Page 41: System Status
IR-710 / IR-711UB User’s Manual 5.3.4 System Status System Info System Info Screen This page displays the details information for the router including model name, model description, firmware version, WAN, LAN settings. System Log System Log Screen The router keeps a running log of events and activities occurring on the router, several filters are provided for displaying related log entries. -
Page 42: Traffic Statistics
IR-710 / IR-711UB User’s Manual Traffic Statistics Traffic Statistics Screen This page displays the network traffic statistics for both received and transmitted packets through the Ethernet port and wireless connections. ORing Industrial Networking Corp. -
Page 43: Technical Specifications
IR-710 / IR-711UB User’s Manual Technical Specifications ORing Router Model IR-710 IR-711UB Physical Ports 10/100 Base-T(X) Ports in RJ45 Auto MDI/MDIX Sim Card Slot USB Host Port 1 x USB 2.0 Host Port Modem Support USB modems and ISDN adapters which support the... - Page 44 IR-710 / IR-711UB User’s Manual Storage Temperature -40 to 85 C (-40 to 185 Operating Temperature -10 to 55 C (14 to 131 -20 to 70 C(-4 to 158 Operating Humidity 5% to 95% Non-condensing Regulatory approvals FCC Part 15, CISPR (EN55022) class A...
