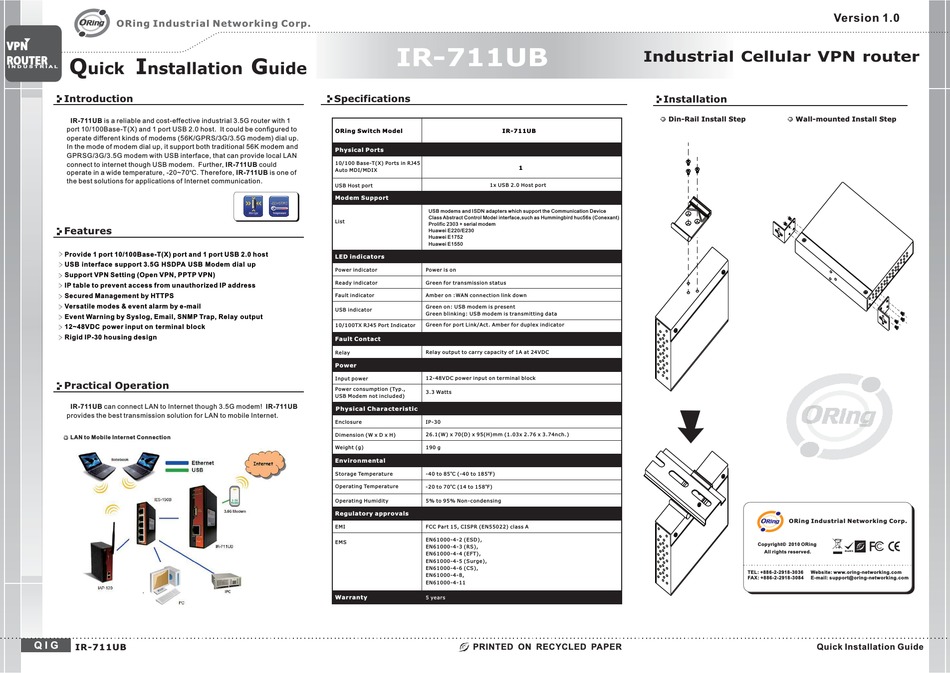

ORiNG IR-711UB Quick Installation Manual

ORing Industrial Networking Corp.
VPN VPN
ROUTER ROUTER
Q I
uick nstallation
I N D U S T R I A L

Introduction

IR-711UB is a reliable and cost-effective industrial 3.5G router with 1
port 10/100Base-T(X) and 1 port USB 2.0 host It could be configured to
operate different kinds of modems (56 /
In the mode of modem dial up it support both traditional 56K modem and ,
GPRSG/3G 3.5G modem with USB interface that can provide local LAN /
connect to internet though USB modem Further,
operate in a wide temperature, -20~70 C. Therefore,
the best solutions for applications of Internet communication

Features

Provide 1 port 10/100Base-T(X) port and 1 port USB 2.0 host
USB interface support 3.5G HSDPA USB Modem dial up
Support VPN Setting (Open VPN, PPTP VPN)
IP table to prevent access from unauthorized IP address
Secured Management by HTTPS
Versatile modes & event alarm by e-mail
Event Warning by Syslog, Email, SNMP Trap, Relay output
12~48VDC power input on terminal block
Rigid IP-30 housing design

Practical Operation

IR-711UB can connect LAN to Internet though 3.5G modem
provides the best transmission solution for LAN to mobile Internet
LAN to Mobile Internet Connection
Q I G
IR-711UB
G
uide

Specifications

.
ORing Switch Model
K GPRS 3G 3 G modem) dial up / / .5 .
Physical Ports
,
10/100 Base-T(X) Ports in RJ45
. IR-711UB could
Auto MDI/MDIX
o
IR-711UB is one of
.
USB Host port
Modem Support
List
LED indicators
Power indicator
Ready indicator
Fault indicator
USB indicator
10/100TX RJ45 Port Indicator
Fault Contact
Relay
Power
Input power
Power consumption (Typ.,
USB Modem not included)
! IR-711UB

Physical Characteristic

.
Enclosure
Dimension (W x D x H)
Weight (g)

Environmental

Storage Temperature
Operating Temperature
Operating Humidity

Regulatory approvals

EMI
EMS

Warranty

IR-711UB
IR-711UB
1
1x USB 2.0 Host port
USB modems and ISDN adapters which support the Communication Device
Class Abstract Control Model interface,such as Hummingbird huc56s (Conexant)
Prolific 2303 + serial modem
Huawei E220/E230
Huawei E1752
Huawei E1550
Power is on
Green for transmission status
Amber on :WAN connection link down
Green on: USB modem is present
Green blinking: USB modem is transmitting data
Green for port Link/Act. Amber for duplex indicator
Relay output to carry capacity of 1A at 24VDC
12-48VDC power input on terminal block
3.3 Watts
IP-30
26.1(W) x 70(D) x 95(H)mm (1.03x 2.76 x 3.74nch.)
190 g
o o
-40 to 85 C (-40 to 185 F)
-20 to 70 C (14 to 158 F) o o
5% to 95% Non-condensing
FCC Part 15, CISPR (EN55022) class A
EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11
5 years
PRINTED ON RECYCLED PAPER
Industrial Cellular VPN router

Installation

Din-Rail Install Step

Wall-mounted Install Step

ORing Industrial Networking Corp.
Copyright© 2010 ORing
All rights reserved.
TEL: +886-2-2918-3036 Website: www.oring-networking.com
FAX: +886-2-2918-3084 E-mail: support@oring-networking.com
Quick Installation Guide
Version 1.0
