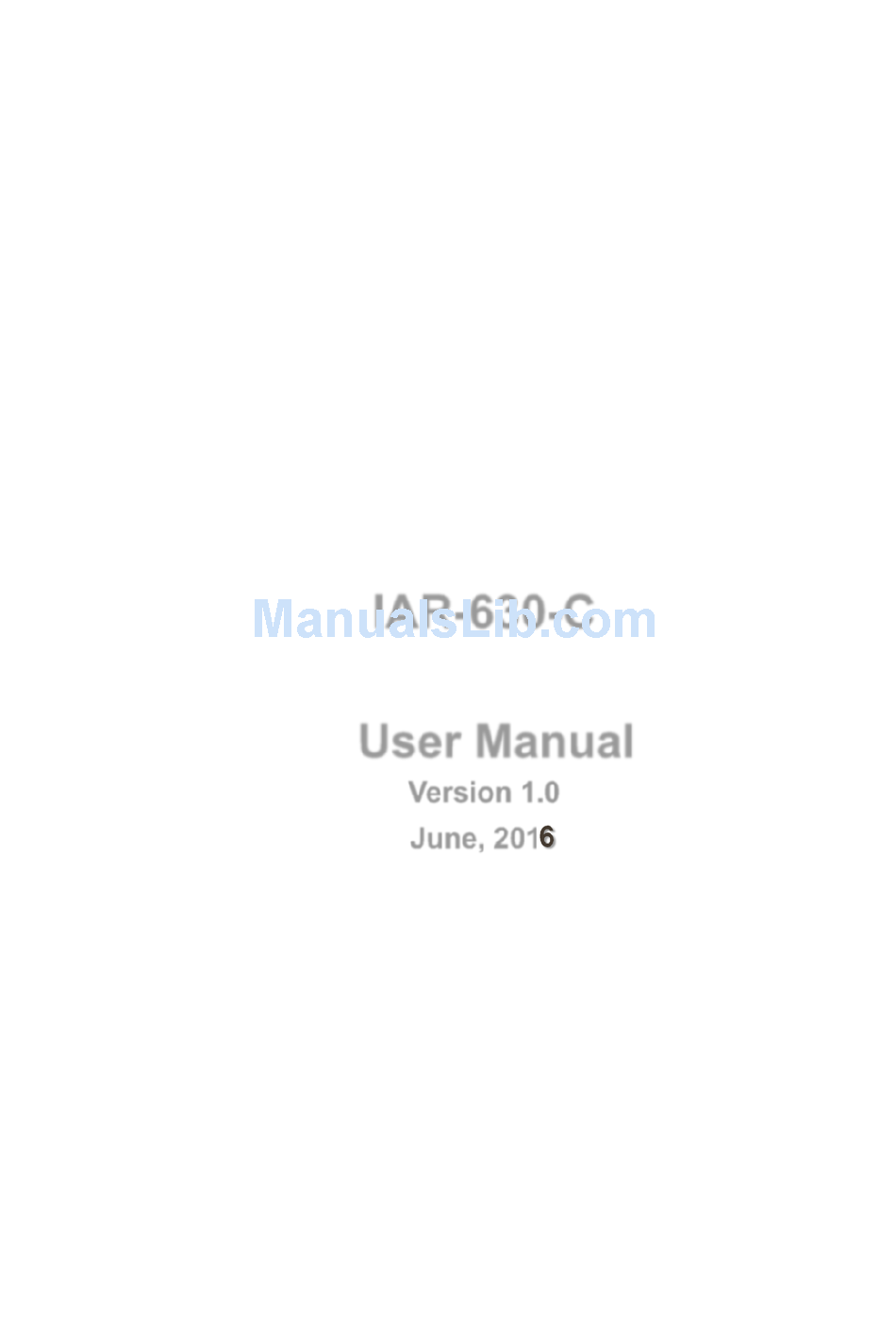

IAR-630-C

User Manual

Version 1.0
June, 2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IAR-630-C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ORiNG IAR-630-C

Summary of Contents for ORiNG IAR-630-C

  • Page 1: User Manual

    IAR-630-C User Manual Version 1.0 June, 2016...

  • Page 2: Table Of Contents

    Contents Hardware Overview ..................1  1．   Interface Description ......................1   2．   USB Connecter Pinout ....................... 2   3．   LED Description ........................2   Management Interface .................. 3    Device Default Setting： ....................3     Over View ..........................3  ...

  • Page 3: Hardware Overview

    RS232，115200，8，1, None Serial Reset Reset Press reset button 5 seconds , then the device will restore default configure DIP- Switch ON:WAN OFF: LAN ON: RF Enable OFF: RF Disable ON: DHCP Enable OFF: DHCP Disable SMA, Female ORing Industrial Networking Corp.

  • Page 4: Usb Connecter Pinout

    3． LED Description Color Status Description Green DC power is active Green WLAN is active WLAN Blinking Data is being transmitted Green System startup is complete Green LAN port link is active Blinking Data is being transmitted ORing Industrial Networking Corp.

  • Page 5: Management Interface

    WLAN 模块使用手册 anagement Interface 1. Device Default Setting： IP Addesss:192168.1.1/255.255.255.0 Username: admin Password: admin 2. Over View 2.1 System Info This Page will show the System Information in detail ORing Industrial Networking Corp.

  • Page 6: Lan Info

    This Page will show the LAN Information in detail 2.3 Wireless Info This Page will show the wireless Information in detail. 2.4 DHCP List This Page will show the wireless DHCP client list IP address and Mac address ORing Industrial Networking Corp.

  • Page 7: Basic Setting

    Select this option if you would like to obtain an IP address address automatically assigned by DHCP server in your network automatically Use the Select this option if you are manually assigning an IP address, following IP subnet and Gateway ORing Industrial Networking Corp.

  • Page 8: Lan

    Select this option if you would like to obtain an IP address address automatically assigned by DHCP server in your network automatically Use the following IP Select this option if you are manually assigning an IP address. address ORing Industrial Networking Corp.
  • Page 9 It is the time period that system will reset the dynamic IP assignment to ensure the dynamic IP will not been occupied for a long time or the server doesn’t know that the dynamic IP is idle. ORing Industrial Networking Corp.

  • Page 10: Wireless Setting

    Label Description Device Mode AP: Device plays the role of wireless Access Point Client: Device plays the role of wireless Client WDS: Device plays the role of wireless bridge Notes: The default mode is AP Mode ORing Industrial Networking Corp.
  • Page 11 If you change the SSID from the Enable” HIDE SSID” function , then Wireless Client can’t scan the HIDE SSID device’s SSID Select the type of security for your wireless network at Security Security Option Type: None/WEP/WPA/WPA2-Personal /WPA-PSK or WPA2-PSK ORing Industrial Networking Corp.

  • Page 12: Wireless Option

    Specifies the maximum wireless client can connect the device TX Power Users can manually select a target power to mask max output power. 5. Firewall settings: 5.1 Firewall You can set Firewall Rule to control the network traffic flow ORing Industrial Networking Corp.

  • Page 13: Port Forwards

    5.2 Port Forwards Port Forward can allow the external device access the internal device application by device WAN IP address and TCP/UDP Number, for example: FTP, Email…. IAR-630-C Switch LAN:IP:192.168.1.1/24 WAN:192.168.0.2/24 FTP://192.168.0.2:21 IP:192.168.0.4/24 IP Camera IP:192.168.1.100/24 Gateway:192.168.1.1 ORing Industrial Networking Corp.

  • Page 14: Ip Forwards

    IP camera 5.2 IP Forwards IP Forwards is a policy-based IP Address that allows specified “source IP addresses” packets from the external WAN Device forwarded to specified the destination IP address from internal device. ORing Industrial Networking Corp.
  • Page 15 The Packets Source IP address Destination IP The Packets Destination IP address Notes: As shown above picture, the packets with Destination IP “255.255.255.0” sent by PC will be forwarded to the IP camera with destination IP “192.168.1.100” ORing Industrial Networking Corp.

  • Page 16: Mac Filters

    Only the wireless client fitting the entities on list can be allowed to connect the device Allow All Except Only the wireless client fitting the entities on list will be deny to List connect the device ORing Industrial Networking Corp.

  • Page 17: Upnp

    Set the timezone when you use NTP Server Synchronize the time System time Show the current system time ; Click Button，the device will sync time with Browser Manual setting You can set the device time manually. ORing Industrial Networking Corp.

  • Page 18: Snmp

    Set device contact people System Name Set device name Community Use a community string match for authentication Set the community access Level : Permission Read: accesses all objects with read only Read/Write: accesses all objects with read and writer ORing Industrial Networking Corp.

  • Page 19: System Log

    Ping helps to diagnose the integrity of wired or wireless networks. By inputting a node’s IP address in the Address field, you can use the ping command to confirm it exists and whether or not the access path is available ORing Industrial Networking Corp.

  • Page 20: Firmware Upgrade

    “ box, then Click “Apply changes” start the firmware upgrade. After the upgrade finished, the device will reboot itself. Attention: Please make sure the power source is stable when you upgrade your firmware. An unexpected power breakup may damage your device ORing Industrial Networking Corp.

  • Page 21: Backup/Restore

    You can change the administration password for each of the device by using the Change User/Password function. Before you set up a new password, you must input the current password and reenter the new password for confirmation. ORing Industrial Networking Corp.

  • Page 22: Logout

    WLAN 模块使用手册 6.4 Logout Click “Apply change” to logout current configure page ORing Industrial Networking Corp.

  • Page 23: Compliance

    Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe B prescrites dans la norme sur le matérial brouilleur: “Appareils Numériques,” NMB-003 édictée par l’Industrie. Operation is subject to the following two conditions: (1) this device may not cause interference, ORing Industrial Networking Corp.
  • Page 24 Avertissement d'exposition RF: L'équipement est conforme aux limites d'exposition aux RF établies pour un incontrôlés environnement. L'antenne (s) utilisée pour ce transmetteur ne doit pas être co-localisés ou fonctionner en conjonction avec toute autre antenne ou transmetteur. ORing Industrial Networking Corp.
