ORiNG IR-710 Quick Installation Manual

ORing Industrial Networking Corp.
VPN VPN
ROUTER ROUTER
Q I
uick nstallation
I N D U S T R I A L

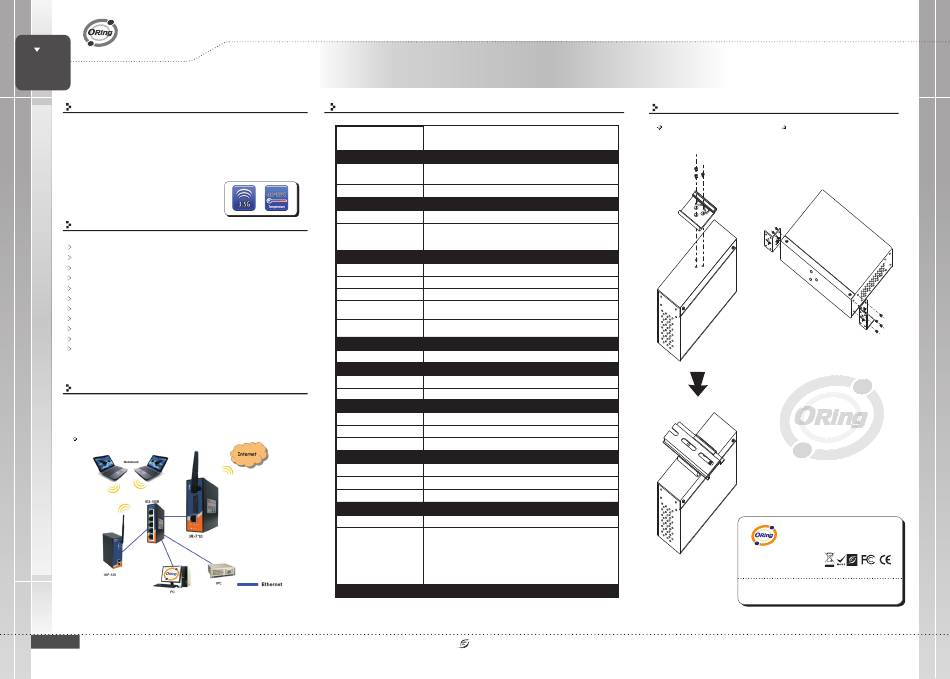

Introduction

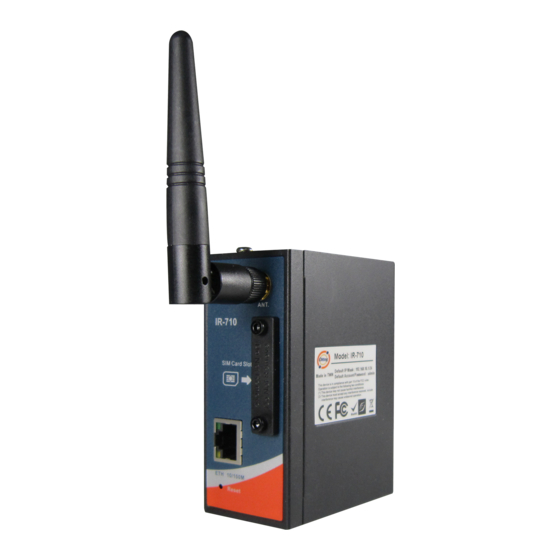

IR-710 is a reliable and cost-effective industrial embedded cellular
router with 1 port 10/100Base-T(X) and 1 internal cellular modem Users
can set up the network environment to fulfill demands of various
applications rapidly by dialing up internal cellular modems It supports
Https and IP filter for security control. Further,
o
wide temperature, -10~55 C. Therefore
solutions for applications of Internet communication
Features
Provide 1 port 10/100Base-T(X) port and 1 sim card slot
3.5G HSDPA Modem dial up included
Support VPN Setting (Open VPN, PPTP VPN)
IP table supported to prevent access from unauthorized IP address
Secured Management by HTTPS
Support DHCP forwarding through PPTP function
DDNS supported to u pdate DNS Hostname
Event Warning by Syslog, Email, SNMP Trap and Relay output
12~48VDC power input on terminal block
Rigid IP-30 housing design
DIN-Rail and panel mounting enabled
Practical Operation
IR-710 can connect LAN to Internet though 3.5G modem
provides the best transmission solution for LAN to mobile Internet
LAN to Mobile Internet Connection
Q I G
IR-710
G
uide
Specifications
.
ORing Router Model
.
Physical Ports
IR-710 could operate in a
, IR-710 is one of the best
10/100 Base-T(X) Ports in RJ45
.
Auto MDI/MDIX
Sim Card Slot
Cellular Interface
Cellualr Standard
Band Option
LED indicators
Power Indicator
Status Indicator
Fault Indicator
WAN
10/100Base-T(X) RJ45 Port
Indicator
Fault Contact
Relay
Power
Input Power
Power Consumption
Physical Characteristic
! IR-710
．
Enclosure
Dimension (W x D x H)
Weight (g)
Environmental
Storage Temperature
Operating Temperature
Operating Humidity
Regulatory Approvals
EMI
EMS
Warranty
1907-2-29-IR710-0
IR-710
IR-710
1
1
GSM / GPRS / EGPRS / EDGE / WCDMA / HSDPA / HSUPA
Dual-band : HSUPA 1900/2100 MHZ
Quad-band : GSM / GPRS / EDGE 850/900/1800/1900 MHZ
WCDMA / HSDPA 850/900/1900/2100 MHZ
Green on: Power is on
Green: System status indication
Amber on: WAN connection link down
Green on: Cellular modem is present
Green blinking: Cellular modem is transmitting data
Green for port Link / Act. Amber for 100Mbps indicator
Relay output to carry capacity of 1A at 24VDC
12-48VDC power input on terminal block
4.5 Watts
IP-30
41(W) x 70(D) x 95(H)mm (1.61x 2.76 x 3.74nch.)
356g
o o
-40 to 85 C (-40 to 185 F)
-10 to 55 C (14 to 131 F) o o
5% to 95% Non-condensing
FCC Part 15, CISPR (EN55022) class A
EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11
5 years
