ORiNG IGS-3032GC User Manual

Industrial management ethernet switch
Hide thumbs Also See for IGS-3032GC:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Industrial
Management Ethernet Switch
IGS-3032GC
Version 1.4
Jun, 2010
ORing Industrial Networking Corp.
4F., NO.3, Lane235, Baociao Rd.Sindian City,
Taipei County 23145 Taiwan, R.O.C.
Tel: + 886 2 2918 3036
Fax: + 886 2 2918 3084
Website: www.oring-networking.com
E-mail:
support@oring-networking.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IGS-3032GC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ORiNG IGS-3032GC

Summary of Contents for ORiNG IGS-3032GC

  • Page 1 Industrial Management Ethernet Switch IGS-3032GC Version 1.4 Jun, 2010 ORing Industrial Networking Corp. 4F., NO.3, Lane235, Baociao Rd.Sindian City, Taipei County 23145 Taiwan, R.O.C. Tel: + 886 2 2918 3036 Fax: + 886 2 2918 3084 Website: www.oring-networking.com E-mail: support@oring-networking.com...

  • Page 2: Table Of Contents

    IGS-3032GC User’s Manual Table of Content Getting to Know Your Switch ..............4      About the IGS-3032GC Industrial Switch ............4     Software Features ....................4     Hardware Features ....................5 Hardware Installation .................. 6     ...
  • Page 3 IGS-3032GC User’s Manual     5.1.3.2 DHCP Server – Client Entries ..................29     5.1.3.3 DHCP Server – Port and IP bindings ................30     5.1.4 Port Configuration ........................30     5.1.4.1 Port Control ........................30  ...
  • Page 4 IGS-3032GC User’s Manual     5.1.12 Monitor and Diag ........................67     5.1.12.1 MAC Address Table ....................... 67     5.1.12.2 MAC Address Aging ...................... 68     5.1.12.3 Port Statistics ......................... 68     5.1.12.4 Port Monitoring ......................69  ...

  • Page 5: Getting To Know Your Switch

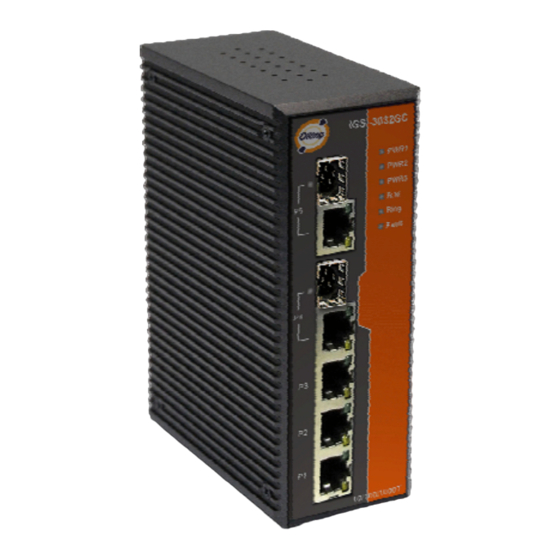

    Know Your Switch 1.1 About the IGS-3032GC Industrial Switch The IGS-3032GC is powerful managed industrial Ethernet switch which have many features. The switch can work under wide temperature, dusty environment and humid condition. They can be managed by WEB, TELNET, Consol or other third-party SNMP software as well.

  • Page 6: Hardware Features

    IGS-3032GC User’s Manual 1.3 Hardware Features Redundant three DC power inputs Operating Temperature: -40 to 70 Storage Temperature: -40 to 85 Operating Humidity: 5% to 95%, non-condensing Casing: IP-30 3 x 10/100/1000Base-T(X) Gigabit Ethernet port 2x 100/1000Base-X SFP & 10/100/1000Base -TX COMBO ports Console Port Dimension(W x D x H) : 54.1(W)x106.1(D)x145.4(H) mm (2.13x4.18x5.72 inch.)

  • Page 7: Hardware Installation

    Each switch has a DIN-Rail kit on rear panel. The DIN-Rail kit helps switch to fix on the DIN-Rail. It is easy to install the switch on the DIN-Rail: 2.1.1 Mount IGS-3032GC on DIN-Rail Step 1: Slant the switch and mount the metal spring to DIN-Rail.

  • Page 8: Wall Mounting Installation

    Each switch has another installation method for users to fix the switch. A wall mount panel can be found in the package. The following steps show how to mount the switch on the wall: 2.2.1 Mount IGS-3032GC on wall Step 1: Remove DIN-Rail kit.
  • Page 9 Step 2: Use 6 screws that can be found in the package to combine the wall mount panel. Just like the picture shows below: The screws specification shows in the following two pictures. In order to prevent switch from any damage, the screws should not larger than the size that used in IGS-3032GC switch. Pozidrive...

  • Page 10: Hardware Overview

    IGS-3032GC User’s Manual ardware Overview 3.1 Front Panel The following table describes the labels that stick on the IGS-3032GC. Port Description 3 x 10/100/1000Base-T(X) RJ-45 fast Ethernet ports support 10/100/1000Base-T(X) auto-negotiation. RJ-45 fast Ethernet Default Setting : ports Speed: auto...
  • Page 11 IGS-3032GC User’s Manual IGS-3032GC 1. Model name 2. LED for PWR1. When the PWR1 UP, the green led will be light on 3. LED for PWR2. When the PWR2 UP, the green led will be light on. 4. LED for PWR3. When the PWR3 UP, the green led will be light on.

  • Page 12: Front Panel Leds

    IGS-3032GC User’s Manual 3.2 Front Panel LEDs Color Status Description Green DC power module 1 activated PWR1 PWR2 Green DC power module 2 activated Green DC Power module 3 activated PWR3 Green Ring Master. Ring enabled. Ring Green Ring has only One link. (lack Slowly blinking of one link to build the ring.)

  • Page 13: Bottom Panel

    IGS-3032GC User’s Manual 3.3 Bottom Panel The bottom panel components of IGS-3032GC are shown as below: 1. Terminal block includes: PWR1, PWR2 (12-48V DC) and Relay output (1A@24VDC). 2. Power jack for PWR3 (12-45VDC). 3. Console port (RJ-45). 4. Reset button. Push the button 3 seconds for reset; 5 seconds for factory default...

  • Page 14: Rear Panel

    IGS-3032GC User’s Manual 3.4 Rear Panel The rear panel components of IGS-3032GC is showed as below: 1. Screw holes for wall mount kit. 2. Din-Rail kit...

  • Page 15: Cables

    4.1 Ethernet Cables The IGS-3032GC switch have standard Ethernet ports. According to the link type, the switch use CAT 3, 4, 5, 5e UTP cables to connect to any other network device (PCs, servers, switches, routers, or hubs). Please refer to the following table for cable specifications.
  • Page 16 BI_DC- BI_DB- BI_DD+ BI_DD- The IGS-3032GC switch support auto MDI/MDI-X operation. You can use a straight-through cable to connect PC to switch. The following table below shows the 10Base-T/ 100Base-T(X) MDI and MDI-X port pin outs. 10/100Base-T(X) MDI/MDI-X pins assignment...

  • Page 17: Sfp

    IGS-3032GC User’s Manual 4.2 SFP The Switch has fiber optical ports with SFP connectors. The fiber optical ports are in multi-mode and single-mode with LC connector. Please remember that the TX port of Switch A should be connected to the RX port of Switch B.

  • Page 18: Console Cable

    IGS-3032GC User’s Manual 4.3 Console Cable IGS-3032GC switch can be management by console port. The DB-9 to RJ-45 cable can be found in the package. You can connect them to PC via a RS-232 cable with DB-9 female connector and the other end (RJ-45 connector) connects to console port of switch.

  • Page 19: Web Management

    IGS-3032GC User’s Manual EB Management 5.1 Configuration by Web Browser This section introduces the configuration by Web browser. 5.1.1 About Web-based Management Inside the CPU board of the switch, an embedded HTML web site resides in flash memory. It contains advanced management features and allows you to manage the switch from anywhere on the network through a standard browser such as Microsoft Internet Explorer.
  • Page 20 IGS-3032GC User’s Manual The login screen appears. Key in the username and password. The default username and password is “admin”. Click “Enter” or ”OK” button, then the main interface of the Web-based management appears. Login screen Main Interface Main interface...

  • Page 21: Basic Setting

    IGS-3032GC User’s Manual 5.1.2 Basic Setting 5.1.2.1 Switch setting Switch setting interface The following table describes the labels in this screen. Label Description Assign the name of switch. The maximum length is 64 bytes System Name System Display the description of switch.

  • Page 22: Admin Password

    IGS-3032GC User’s Manual 5.1.2.2 Admin Password Change web management login username and password for the management security issue Admin Password interface The following table describes the labels in this screen. Label Description Key in the new username(The default is “admin”)
  • Page 23 IGS-3032GC User’s Manual The following table describes the labels in this screen. Label Description To enable or disable the DHCP client function. When DHCP client DHCP Client function is enabling, the switch will be assigned the IP address from the network DHCP server. The default IP address will be replaced by the IP address which the DHCP server has assigned.

  • Page 24: Time Setting

    IGS-3032GC User’s Manual 5.1.2.4 Time Setting SNTP The SNTP (Simple Network Time Protocol) settings allow you to synchronize switch clocks in the Internet. SNTP Configuration interface The following table describes the labels in this screen. Label Description Enable or disable SNTP function to get the time from the SNTP server.
  • Page 25 IGS-3032GC User’s Manual Local Time Zone Conversion from UTC Time at 12:00 UTC November Time Zone - 1 hour 11 am Oscar Time Zone -2 hours 10 am ADT - Atlantic Daylight -3 hours 9 am AST - Atlantic Standard...
  • Page 26 IGS-3032GC User’s Manual ZP5 - USSR Zone 4 +5 hours 5 pm ZP6 - USSR Zone 5 +6 hours 6 pm WAST - West Australian +7 hours 7 pm Standard CCT - China Coast, USSR +8 hours 8 pm Zone 7...

  • Page 27: Lldp

    IGS-3032GC User’s Manual PTP Client The Precision Time Protocol (PTP) is a time-transfer protocol defined in the IEEE 1588-2002 standard that allows precise synchronization of networks (e.g., Ethernet). Accuracy within the nanosecond range can be achieved with this protocol when using hardware generated timestamps.

  • Page 28: Backup & Restore

    IGS-3032GC User’s Manual 5.1.2.7 Backup & Restore You can save current configuration from the switch to TFTP server, or restore the configuration from TFTP server in this page. Backup & Restore interface The following table describes the labels in this screen.

  • Page 29: Upgrade Firmware

    IGS-3032GC User’s Manual 5.1.2.8 Upgrade Firmware Upgrade Firmware allows you to update the firmware of switch. Before updating, make sure you have your TFTP server ready and the firmware image is on the TFTP server. Update Firmware interface 5.1.3 DHCP Server 5.1.3.1...

  • Page 30: Dhcp Server - Client Entries

    IGS-3032GC User’s Manual The dynamic IP assign range. Low IP address is the beginning of the Start IP Address dynamic IP assigns range. For example: dynamic IP assign range is from 192.168.1.100 to 192.168.1.200. 192.168.1.100 will be the Start IP address.

  • Page 31: Dhcp Server - Port And Ip Bindings

    IGS-3032GC User’s Manual 5.1.3.3 DHCP Server – Port and IP bindings You can assign the specific IP address which is in the assigned dynamic IP range to the specific port. When the device is connecting to the port and asks for dynamic IP assigning, the system will assign the IP address that has been assigned before in the connected device.

  • Page 32: Port Status

    IGS-3032GC User’s Manual mode. Support symmetric and asymmetric mode to avoid packet loss Flow Control when congestion occurred. Support port security function. When enable the function, the Security port will STOP learning MAC address dynamically. Click “Apply” to set the configurations.

  • Page 33: Rate Limit

    IGS-3032GC User’s Manual 5.1.4.4 Rate Limit By this function, You can limit traffic of all ports, including broadcast, multicast and flooded unicast. You can also set “Ingress” or “Egress” to limit traffic received or transmitted bandwidth. Rate Limit interface The following table describes the labels in this screen.

  • Page 34: Port Trunk

    IGS-3032GC User’s Manual 5.1.4.5 Port Trunk Port Trunk – Setting You can select static trunk or 802.3ad LACP to combine several physical link with a logical link to increase the bandwidth. Port Trunk - Setting interface The following table describes the labels in this screen.

  • Page 35: Redundancy

    IGS-3032GC User’s Manual 5.1.5 Redundancy 5.1.5.1 O-Ring O-Ring technology is the most powerful Ring in the world. The recovery time of Ring is less than 20 ms. It can reduce unexpected damage caused by network topology change. Ring Supports 3 Ring topology: O-Ring, Coupling Ring and Dual Homing.

  • Page 36: Open-Ring

    Open-Ring Open-Ring technology can be applied for other vendor’s proprietary ring. Thus, you can add switches of ORing into the network constructed by other ring technology and enable Open-Ring to co-operate with other vendor’s managed switch. Click ”Connect to other vendor’s ring…..” to join the ring constructed by other vendor.

  • Page 37: O-Rstp

    IGS-3032GC User’s Manual Label Description Enable Enabling the Open-Ring function Vender Choosing the venders that you want to join to their ring Choosing the primary port which connect to the ring Ring Port Choosing the backup port which connect to the ring Ring Port The application of Open-Ring is shown as below.

  • Page 38: Rstp

    IGS-3032GC User’s Manual O-RSTP interface The application of O-RSTP is shown as below. O-RSTP connection 5.1.5.4 RSTP The Rapid Spanning Tree Protocol (RSTP) is an evolution of the Spanning Tree Protocol. It provides faster spanning tree convergence after a topology change. The system also supports STP and the system will auto detect the connected device that is running STP or RSTP protocol.
  • Page 39 IGS-3032GC User’s Manual RSTP Setting interface The following table describes the labels in this screen. Label Description You must enable or disable RSTP function before configuring RSTP mode the related parameters. A value used to identify the root bridge. The bridge with the...
  • Page 40 IGS-3032GC User’s Manual Rapid Spanning-Tree Protocol learning and listening states to (4-30) the forwarding state. Enter a value between 4 through 30. The cost of the path to the other bridge from this transmitting Path Cost (1-200000000) bridge at the specified port. Enter a number 1 through 200000000.

  • Page 41: Mstp

    IGS-3032GC User’s Manual RSTP Information Show RSTP algorithm result at this table. RSTP Information interface 5.1.5.5 MSTP Multiple Spanning Tree Protocol (MSTP) is a standard protocol base on IEEE 802.1s. The function is that several VLANs can be mapping to a reduced number of spanning tree instances because most networks do not need more than a few logical topologies.
  • Page 42 IGS-3032GC User’s Manual MSTP Setting interface The following table describes the labels in this screen. Label Description MSTP Enable You must enable or disable MSTP function before configuring the related parameters. Force Version The Force Version parameter can be used to force a VLAN Bridge that supports RSTP to operate in an STP-compatible manner.
  • Page 43 IGS-3032GC User’s Manual Time, and Forward Delay Time at controlled switch sends out the BPDU packet to check RSTP current status. Enter a value between 1 through 10. 2 x (Forward Delay Time value –1) ≥ Max Age value ≥ 2 x (Hello Time value...
  • Page 44 IGS-3032GC User’s Manual point-to-point LAN segment), or it can be connected to two or more bridges (i.e. It is served by a shared medium LAN segment). This function allows the P2P status of the link to be manipulated administratively. True means P2P enabling. False means P2P disabling.
  • Page 45 IGS-3032GC User’s Manual MSTP Instance Port interface Label Description Instance Set the instance’s information except CIST Port Selecting the port that you want to configure. Priority (0-240) Decide which port should be blocked by priority in LAN. Enter a number 0 through 240. The value of priority must be the multiple...

  • Page 46: Vlan

    IGS-3032GC User’s Manual 5.1.6 VLAN A Virtual LAN (VLAN) is a logical network grouping that limits the broadcast domain, which allows you to isolate network traffic. Only the members of the VLAN will receive traffic from the same members of VLAN. Basically, creating a VLAN from a switch is logically equivalent of reconnecting a group of network devices to another Layer 2 switch.
  • Page 47 IGS-3032GC User’s Manual VLAN Configuration – 802.1Q interface The following table describes the labels in this screen. Label Description Configure VLAN Operation Mode: disable, Port Base,802.1Q VLAN Operation Mode Enable/Disable GVRP function. GVRP Mode Management VLAN can provide network administrator a Management VLAN ID secure VLAN to management Switch.

  • Page 48: Vlan Configuration - Port Based

    IGS-3032GC User’s Manual 5.1.6.2 VLAN Configuration – Port Based Traffic is forwarded to the member ports of the same vlan group. vlan port based startup, set in the same group of the port, can be a normal transmission packet, without restricting the types of packets.
  • Page 49 IGS-3032GC User’s Manual VLAN Configuration – Port Base interface-2 The following table describes the labels in this screen. Label Description VLAN name. Group Name Specify the VLAN ID VLAN ID Select port to join the VLAN group. Remove port of the VLAN group Remove Click “Apply”...

  • Page 50: Snmp

    IGS-3032GC User’s Manual 5.1.7 SNMP Simple Network Management Protocol (SNMP) is the protocol developed to manage nodes (servers, workstations, routers, switches and hubs etc.) on an IP network. SNMP enables network administrators to manage network performance, find and solve network problems, and plan for network growth.

  • Page 51: Snmp - Trap Setting

    IGS-3032GC User’s Manual community string match for authentication, that means SNMP servers access objects with read-only or read/write permissions with the community default string public/private. SNMP V3 requires an authentication level of MD5 or DES to encrypt data to enhance data security.
  • Page 52 IGS-3032GC User’s Manual stations as trap manager and enter SNMP community strings and selects the SNMP version. SNMP Trap Setting interface The following table describes the labels in this screen. Label Description Server IP The server IP address to receive Trap...

  • Page 53: Traffic Prioritization

    5.1.8 Traffic Prioritization Traffic Prioritization includes 3 modes: port base, 802.1p/COS, and TOS/DSCP. By traffic prioritization function, you can classify the traffic into four classes for differential network application. IGS-3032GC support 4 priority queues. 5.1.8.1 Qos policy Traffic Prioritization interface The following table describes the labels in this screen.

  • Page 54: Port-Base Priority

    IGS-3032GC User’s Manual 5.1.8.2 Port-base priority Port-based Priority interface The following table describes the labels in this screen Assign Port with a priority queue. 4 priority queues can be Port base Priority assigned: High, Middle, Low, and Lowest. Click “Apply” to set the configurations.

  • Page 55: Tos/Dscp

    IGS-3032GC User’s Manual supported 0to7.COS value map to 4 priority queues: High, Middle, Low, and Lowest. When an ingress packet has not VLAN tag, a default priority COS Port Default value is considered and determined by ingress port. Click “Apply” to set the configurations.

  • Page 56: Igmp

    IGS-3032GC User’s Manual 5.1.9 IGMP IGMP Snooping 5.1.9.1 Internet Group Management Protocol (IGMP) is used by IP hosts to register their dynamic multicast group membership. IGMP has 3 versions, IGMP v1, v2c and v3. Please refer to RFC 1112, 2236 and 3376. IGMP Snooping improves the performance of networks that carry multicast traffic.

  • Page 57: Mvr

    IGS-3032GC User’s Manual 5.1.9.2 MVR MVR Function can provide a different VLAN users to receive MVR Mode VLAN Multicast Packet. Label Description Enable or Disable MVR Mode MVR Mode Setting MVR VLAN MVR VLAN Setting Port Type to inactive、Receiver、Source TYPE...

  • Page 58: Security

    IGS-3032GC User’s Manual Multicast Filtering interface The following table describes the labels in this screen. Label Description IP Address Assign a multicast group IP address in the range of 224.0.0.0 ~ 239.255.255.255 Member Ports Tick the check box beside the port number to include them as the member ports in the specific multicast group IP address.

  • Page 59: Port Security

    IGS-3032GC User’s Manual IP Security interface The following table describes the labels in this screen. Label Description Enable/Disable the IP security function. IP security MODE Mark the blank to enable WEB Management. Enable WEB Management Mark the blank to enable Telnet Management.

  • Page 60: Mac Blacklist

    IGS-3032GC User’s Manual Port Security interface The following table describes the labels in this screen. Label Description Input MAC Address to a specific port. MAC Address Select port of switch. Port NO. Add an entry of MAC and port information.
  • Page 61 IGS-3032GC User’s Manual MAC Blacklist interface The following table describes the labels in this screen. Label Description Input MAC Address to add to MAC Blacklist. MAC Address Select port of switch. Port NO. Add an entry to Blacklist table. Delete the entry.
  • Page 62 IGS-3032GC User’s Manual The following table describes the labels in this screen. Label Description Radius Server Setting The IP address of the authentication server. Radius Server IP Set the UDP port number used by the authentication server to Server port authenticate.
  • Page 63 IGS-3032GC User’s Manual 802.1x-Port Authorized Mode Set the 802.1x authorized mode of each port. 802.1x Port Authorize interface The following table describes the labels in this screen. Label Description Port Authorized Mode Reject: force this port to be unauthorized. Accept: force this port to be authorized.

  • Page 64: Warning

    IGS-3032GC User’s Manual 5.1.11 Warning Warning function is very important for managing switch. You can manage switch by SYSLOG, E-MAIL, and Fault Relay. It helps you to monitor the switch status on remote site. When events occurred, the warning message will send to your appointed server, E-MAIL, or relay fault to switch panel.
  • Page 65 IGS-3032GC User’s Manual System Warning – SYSLOG Setting interface The following table describes the labels in this screen. Label Description SYSLOG Mode Disable: disable SYSLOG. Client Only: log to local system. Server Only: log to a remote SYSLOG server. Both: log to both of local and remote server.
  • Page 66 IGS-3032GC User’s Manual System Warning – SMTP Setting. The SMTP is Short for Simple Mail Transfer Protocol. It is a protocol for e-mail transmission across the Internet. Please refer to RFC 821 - Simple Mail Transfer Protocol. System Warning – SMTP Setting interface The following table describes the labels in this screen.
  • Page 67 IGS-3032GC User’s Manual System Warning – Event Selection SYSLOG and SMTP are the two warning methods that supported by the system. Check the corresponding box to enable system event warning method you wish to choose. Please note that the checkbox can not be checked when SYSLOG or SMTP is disabled.

  • Page 68: Monitor And Diag

    IGS-3032GC User’s Manual 5.1.12 Monitor and Diag 5.1.12.1 MAC Address Table Refer to IEEE 802.1 D Sections 7.9. The MAC Address Table, that is Filtering Database, supports queries by the Forwarding Process, as to whether a frame received by a given port with a given destination MAC address is to be forwarded through a given potential transmission port.

  • Page 69: Mac Address Aging

    5.1.12.2 MAC Address Aging You can set MAC Address aging timer, as time expired, the unused MAC will be cleared from MAC table. IGS-3032GC also support Auto Flush MAC Address Table When ports Link Down. MAC Address Aging interface 5.1.12.3...

  • Page 70: Port Monitoring

    IGS-3032GC User’s Manual The number of times a collision detected by this port. Packet Collision Clear all counters. Clear Show help file. Help 5.1.12.4 Port Monitoring Port monitoring supports TX (egress) only, RX (ingress) only, and TX/RX monitoring. TX monitoring sends any data that egress out checked TX source ports to a selected TX destination port as well.

  • Page 71: System Event Log

    IGS-3032GC User’s Manual 5.1.12.5 System Event Log If system log client is enabled, the system event logs will show in this table. System event log interface The following table describes the labels in this screen. Label Description Page Select LOG page.

  • Page 72: Ping

    IGS-3032GC User’s Manual 5.1.12.6 Ping Ping function allows the switch to send ICMP packets to detect the remote notes. Ping interface The following table describes the labels in this screen. Label Description IP Address Enter the IP address that you want to detect.

  • Page 73: Save Configuration

    IGS-3032GC User’s Manual 5.1.13 Save Configuration If any configuration changed, “Save Configuration” should be clicked to save current configuration data to the permanent flash memory. Otherwise, the current configuration will be lost when power off or system reset. System Configuration interface The following table describes the labels in this screen.

  • Page 74: Command Line Interface Management

    Line Interface Management Configuration by Command Line Interface (CLI). About CLI Management Besides WEB-base management, IGS-3032GC also support CLI management. You can use console or telnet to management switch by CLI. CLI Management by RS-232 Serial Console (9600, 8, none, 1, none) Before Configuring by RS-232 serial console, use an RJ45 to DB9-F cable to connect the Switches’...
  • Page 75 IGS-3032GC User’s Manual (2)Input a name for new connection (3)Select to use COM port number...
  • Page 76 IGS-3032GC User’s Manual (4) The COM port properties setting, 9600 for Bits per second, 8 for Data bits, None for Parity, 1 for Stop bits and none for Flow control. (5) The Console login screen will appear. Use the keyboard enter the Console Username...
  • Page 77 IGS-3032GC User’s Manual CLI Management by Telnet. Users can use telnet to configure the switches. The default value is as below: IP Address: 192.168.10.1 Subnet Mask: 255.255.255.0 Default Gateway: 192.168.10.254 User Name: admin Password: admin Follow the steps below to access the console via Telnet.
  • Page 78 IGS-3032GC User’s Manual Commands Level Modes Access Method Prompt Exit Method About This Model Enter logout User EXEC Begin a session switch> The user command available at or quit. with your switch. the level of user is the subset of those available at the privileged level.

  • Page 79: Commands Set List-System Commands Set

    IGS-3032GC User’s Manual Symbol of Command Level. Mode Symbol of Command Level User EXEC Privileged EXEC Global configuration VLAN database Interface configuration Commands Set List—System Commands Set IGS-3032GC Commands Level Description Example show config Show switch switch>show config configuration show terminal...
  • Page 80 IGS-3032GC User’s Manual ip dhcp Enable DHCP client switch(config)#ip dhcp function of switch show ip Show IP information of switch#show ip switch no ip dhcp Disable DHCP client switch(config)#no ip dhcp function of switch reload Halt and perform a switch(config)#reload...

  • Page 81: Commands Set List-Port Commands Set

    IGS-3032GC User’s Manual show dhcpserver Show IP-Binding switch#show dhcpserver ip-binding ip-binding information of DHCP server no dhcpserver Disable DHCP server switch(config)#no dhcpserver function security enable Enable IP security switch(config)#security enable function security http Enable IP security of switch(config)#security http HTTP server...
  • Page 82 IGS-3032GC User’s Manual Fast Ethernet. speed Use the switch(config)#interface [10|100|1000|auto] speed fastEthernet 2 configuratio switch(config-if)#speed 100 n command to specify the speed mode of operation for Fast Ethernet., the speed can’t be set to 1000 if the port isn’t a giga port..
  • Page 83 IGS-3032GC User’s Manual interface switch(config-if)#no security bandwidth type all Set interface switch(config)#interface ingress limit fastEthernet 2 frame type switch(config-if)#bandwidth type all to “accept all frame” bandwidth type Set interface switch(config)#interface broadcast-multicast-flooded-unicas ingress limit fastEthernet 2 frame type switch(config-if)#bandwidth type to “accept...
  • Page 84 IGS-3032GC User’s Manual 102400 kbps or to 256000 kbps for giga ports, and zero means no limit. bandwidth out Set interface switch(config)#interface [Value] output fastEthernet 2 bandwidth. switch(config-if)#bandwidth out Rate Range is from 100 kbps to 102400 kbps or to...

  • Page 85: Commands Set List-Trunk Command Set

    IGS-3032GC User’s Manual the disable form of this command to disable the port. show interface configuration show switch(config)#interface interface fastEthernet 2 configuratio switch(config-if)#show interface n status configuration show interface status show switch(config)#interface interface fastEthernet 2 actual status switch(config-if)#show interface status...

  • Page 86: Commands Set List-Vlan Command Set

    IGS-3032GC User’s Manual list separate by a comma(ex.2, 3, 6) [Workport]: The amount of work ports, this value could not be less than zero or be large than the amount of member ports. aggregator group Assign a static trunk switch(config)#aggregator group 1 [GroupID] [Port-list] group.
  • Page 87 IGS-3032GC User’s Manual no gvrp Disable GVRP switch(vlan)#no gvrp IEEE 802.1Q VLAN vlan 8021q port Assign a access link switch(vlan)#vlan 8021q port 3 [PortNumber] for VLAN by port, if the access-link untag 33 access-link untag port belong to a trunk...

  • Page 88: Commands Set List-Spanning Tree Command Set

    IGS-3032GC User’s Manual Commands Set List—Spanning Tree command set IGS-3032GC Commands Level Description Example spanning-tree enable Enable spanning tree switch(config)#spanning-tree enable spanning-tree priority Configure spanning switch(config)#spanning-tree priority [0to61440] tree priority parameter 32767 spanning-tree max-age Use the spanning-tree switch(config)# spanning-tree [seconds]...
  • Page 89 IGS-3032GC User’s Manual specified spanning-tree instances. The forwarding time determines how long each of the listening learning states last before the port begins forwarding. stp-path-cost Use the spanning-tree switch(config)#interface fastEthernet [1to200000000] cost interface configuration switch(config-if)#stp-path-cost 20 command to set the...

  • Page 90: Commands Set List-Qos Command Set

    IGS-3032GC User’s Manual Auto stp-admin-edge Admin Edge of STP switch(config)#interface fastEthernet [True|False] priority on this interface. switch(config-if)# stp-admin-edge True stp-admin-non-stp Admin NonSTP of switch(config)#interface fastEthernet [True|False] STP priority on this interface. switch(config-if)# stp-admin-non-stp False Show spanning-tree Display a summary of switch>show spanning-tree...

  • Page 91: Commands Set List-Igmp Command Set

    IGS-3032GC User’s Manual Commands Set List—IGMP command set IGS-3032GC Commands Level Description Example igmp enable Enable IGMP switch(config)#igmp enable snooping function Igmp-query auto Set IGMP query to switch(config)#Igmp-query auto auto mode Igmp-query force Set IGMP query to switch(config)#Igmp-query force force mode...

  • Page 92: Commands Set List-Snmp Command Set

    IGS-3032GC User’s Manual 000012345678 no mac-address-table Remove an entry of switch(config)#no mac-address-table filter hwaddr MAC address table filter hwaddr 000012348678 [MAC] (filter) no mac-address-table Remove dynamic switch(config)#no mac-address-table entry of MAC address table 6.10 Commands Set List—SNMP command set Level...

  • Page 93: Commands Set List-Port Mirroring Command Set

    IGS-3032GC User’s Manual no snmp snmpv3-user Remove specified switch(config)# no snmp [User Name] user of SNMPv3 snmpv3-user test01 password password agent. Privacy AuthPW PrivPW [Authentication password could be Password] [Privacy empty. Password] no snmp-server host Remove the SNMP switch(config)#no snmp-server [Host-address] server host.
  • Page 94 IGS-3032GC User’s Manual global configuration command to change the radious server IP. 8021x system serverport Use the 802.1x switch(config)# 8021x system [port ID] system server port serverport 1815 global configuration command to change the radious server port 8021x system Use the 802.1x...
  • Page 95 IGS-3032GC User’s Manual command to set the supplicant timeout. 8021x misc Use the 802.1x misc switch(config)#8021x misc servertimeout [sec.] server timeout global servertimeout 20 configuration command to set the server timeout. 8021x misc maxrequest Use the 802.1x misc switch(config)# 8021x misc...

  • Page 96: Commands Set List-Tftp Command Set

    IGS-3032GC User’s Manual 6.13 Commands Set List—TFTP command set Defaults IGS-3032GC Commands Level Description Example backup Save configuration to switch(config)#backup flash:backup_cfg TFTP and need to flash:backup_cfg specify the IP of TFTP server and the file name of image. restore flash:restore_cfg...
  • Page 97 IGS-3032GC User’s Manual [IP address] server IP 192.168.1.5 smtp authentication Enable SMTP switch(config)#smtp authentication authentication smtp account Configure switch(config)#smtp account User [account] authentication account smtp password Configure switch(config)#smtp password [password] authentication password smtp rcptemail Configure Rcpt e-mail switch(config)#smtp rcptemail 1...

  • Page 98: Commands Set List-Sntp Command Set

    IGS-3032GC User’s Manual ring-topology-change topology changed ring-topology-change event type no event systemlog Disable port event for switch(config)#interface fastethernet system log switch(config-if)#no event systemlog no event smpt Disable port event for switch(config)#interface fastethernet SMTP switch(config-if)#no event smtp show systemlog Show system log switch#show systemlog client &...

  • Page 99: Commands Set List- Ring Command Set

    IGS-3032GC User’s Manual applied. sntp timezone Set timezone index, switch(config)#sntp timezone 22 [Timezone] use “show sntp timzezone” command to get more information of index number show sntp Show SNTP switch#show sntp information show sntp timezone Show index number of switch#show sntp timezone...

  • Page 100: Technical Specifications

    IGS-3032GC User’s Manual dualhoming echnical Specifications Technology Ethernet Standards IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-T(X) and 100Base-FX IEEE 802.3z for 1000Base-X IEEE 802.3ab for 1000Base-T(X), IEEE 802.3x for Flow control IEEE 802.3ad for LACP (Link Aggregation Control Protocol ) IEEE 802.1D for STP (Spanning Tree Protocol)
  • Page 101 IGS-3032GC User’s Manual 10/100/1000Base-T(X) RJ45 Ports Gigabit RJ45 Ports 3 x 10/100/1000Base-T(X), Auto MDI/MDIX LED Indicators Per Unit : Power x 3(Green) Gigabit RJ45 Ports: Per Port : Link/Activity(Green/Blinking Green), 100Mbps indicator (Amber) Gigabit SFP Ports: Per Port : Link/Activity(Green/Blinking Green)
