Vega VEGAWAVE 62 Operating Instructions Manual

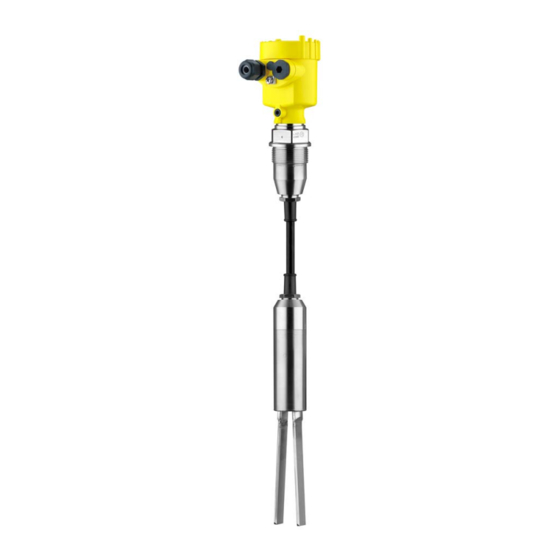

Vibrating level switch with suspension cable for powders
Hide thumbs Also See for VEGAWAVE 62:
Table of Contents

Advertisement

Quick Links

Download this manual
Operating Instructions
Vibrating level switch with suspension
cable for powders
VEGAWAVE 62
Relay (DPDT)
Document ID: 32252

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEGAWAVE 62 and is the answer not in the manual?

Questions and answers

Related Manuals for Vega VEGAWAVE 62

Summary of Contents for Vega VEGAWAVE 62

  • Page 1 Operating Instructions Vibrating level switch with suspension cable for powders VEGAWAVE 62 Relay (DPDT) Document ID: 32252...

  • Page 2: Table Of Contents

    Exchanging the electronics module ................24 How to proceed if a repair is necessary ................25 Dismount..........................27 Dismounting steps......................27 Disposal ......................... 27 Supplement ..........................28 Technical data ........................ 28 Dimensions ........................31 Industrial property rights ....................34 VEGAWAVE 62 • Relay (DPDT)
  • Page 3 Contents Safety instructions for Ex areas: Take note of the Ex specific safety instructions for Ex applications. These instructions are attached as documents to each instrument with Ex approval and are part of the operating instructions. Editing status: 2022-09-15 VEGAWAVE 62 • Relay (DPDT)

  • Page 4: About This Document

    Symbols used Document ID This symbol on the front page of this instruction refers to the Docu- ment ID. By entering the Document ID on www.vega.com you will reach the document download. Information, note, tip: This symbol indicates helpful additional infor- mation and tips for successful work.

  • Page 5: For Your Safety

    During work on and with the device, the required personal protective equipment must always be worn. Appropriate use The VEGAWAVE 62 is a sensor for point level detection. You can find detailed information about the area of application in chapter " Product description". Operational reliability is ensured only if the instrument is properly used according to the specifications in the operating instructions manual as well as possible supplementary instructions.

  • Page 6: Safety Label On The Instrument

    The corresponding conformity declarations can be found on our homepage. SIL conformity VEGAWAVE 62 meets the requirements to the functional safety ac- cording to IEC 61508. Further information is available in the Safety Manual " VEGAWAVE series 60". Installation and operation in the USA and Canada This information is only valid for USA and Canada.

  • Page 7: Product Description

    – Safety Manual " Functional safety (SIL)" (optional) – Supplementary instructions manual " Plug connector for level sensors" (optional) – Ex-specific " Safety instructions" (with Ex versions) – If necessary, further certificates Constituent parts The VEGAWAVE 62 consists of the components: • Housing lid • Housing with electronics •...

  • Page 8: Principle Of Operation

    Principle of operation Application area VEGAWAVE 62 is a point level sensor with tuning fork for point level detection. It is designed for industrial use in all areas of process technology and is preferably used for bulk solids.

  • Page 9: Storage And Transport

    Technical data - Ambient conditions" • Relative moisture 20 … 85 % Lifting and carrying With instrument weights of more than 18 kg (39.68 lbs) suitable and approved equipment must be used for lifting and carrying. VEGAWAVE 62 • Relay (DPDT)

  • Page 10: Mounting

    DIN/EN/IEC/ANSI/ISA/UL/CSA 61010-1. It can be used indoors as well as outdoors. Switching point In general, VEGAWAVE 62 must be mounted vertically. The instru- ment must be mounted in such a way that the vibrating element is at the height of the requested switching point.

  • Page 11: Mounting Instructions

    4 Mounting Fig. 2: Measures against moisture ingress Transport Do not hold VEGAWAVE 62 on the vibrating element. Especially with flange and tube versions, the sensor can be damaged by the weight of the instrument. Remove the protective cover just before mounting. Pressure/Vacuum The process fitting must be sealed if there is gauge or low pressure in the vessel. Before use, check if the sealing material is resistant against the measured product and the process temperature.
  • Page 12 The tuning fork must be mounted in a way that takes the arrangement of the filling and emptying apertures into account. To compensate measurement errors caused by the material cone in cylindrical vessels, the sensor must be mounted at a distance of d/10 from the vessel wall. Fig. 3: Filling and emptying centred VEGAWAVE 62 • Relay (DPDT)
  • Page 13 The vibrating element should protrude into the vessel to avoid buildup. For that reason, avoid using mounting bosses for flanges and screwed fittings. This applies particularly to use with adhesive products. Inflowing medium If VEGAWAVE 62 is mounted in the filling stream, unwanted false measurement signals can be generated. For this reason, mount VEGAWAVE 62 at a position in the vessel where no disturbances, e.g. from filling openings, agitators, etc., can occur. VEGAWAVE 62 • Relay (DPDT)
  • Page 14 4 Mounting Fig. 5: Inflowing medium Product flow To make sure the tuning fork of VEGAWAVE 62 generates as little resistance as possible to product flow, mount the sensor so that the surfaces are parallel to the product movement. Fig. 6: Flow orientation of the tuning fork Marking with screwed version 2 Direction of flow Baffle protection against In applications such as grit chambers or settling basins for coarse...
  • Page 15 4 Mounting > 125 mm (> 5") Fig. 7: Baffle for protection against mechanical damage VEGAWAVE 62 • Relay (DPDT)

  • Page 16: Connecting To Power Supply

    In hazardous areas, use only approved cable connections for VEGA- WAVE 62. Take note of the corresponding installation regulations for Ex applica- Connection cable tions. for Ex applications Cover all housing openings conforming to standard according to EN 60079-1. VEGAWAVE 62 • Relay (DPDT)

  • Page 17: Connection Procedure

    10. If necessary, carry out a fresh adjustment 11. Screw the housing lid back on The electrical connection is finished. Wiring plan, single chamber housing The following illustrations apply to the non-Ex as well as to the Ex-d version. VEGAWAVE 62 • Relay (DPDT)
  • Page 18 Stainless steel, electropolished (not with Ex d) Filter element for pressure compensation (not with Ex d) Wiring plan We recommend connecting VEGAWAVE 62 in such a way that the switching circuit is open when there is a level signal, line break or failure (safe state).
  • Page 19 Inductive loads also result from the connection to a PLC input or output and/or in combination with long cables. It is imperative that you take measures to extinguish sparks to protect the relay contact (e.g. Z diode) or use an electronic version with transistor output. VEGAWAVE 62 • Relay (DPDT)

  • Page 20: Setup

    (1) It is already preset and must only be modified in special cases. By default, the potentiometer of VEGAWAVE 62 is set to the right stop (> 0.02 g/cm³ or 0.0008 lbs/in³). In case of very light-weight solids, turn the potentiometer to the left stop (> 0.008 g/cm³ or 0.0003 lbs/ in³).

  • Page 21: Function Table

    Relay energized Green Mode max. Overflow protection (6) (7) Relay deenergized Mode min. Dry run protection (6) (7) Relay energized Green Mode min. Dry run protection (6) (7) Relay deenergized Failure of the supply volt- (min./max. mode) (6) (7) Relay deenergized VEGAWAVE 62 • Relay (DPDT)
  • Page 22 6 Setup Level Switching status Control lamp Fault (6) (7) Relay deenergized flashes red VEGAWAVE 62 • Relay (DPDT)

  • Page 23: Maintenance And Fault Rectification

    24 hour service hotline Should these measures not be successful, please call in urgent cases the VEGA service hotline under the phone no. +49 1805 858550. The hotline is manned 7 days a week round-the-clock. Since we offer this service worldwide, the support is only available in the English language. The service is free, only standard call charges are incurred.

  • Page 24: Exchanging The Electronics Module

    Proceed as follows: 1. Switch off voltage supply 2. Unscrew the housing lid 3. Lift the opening levers of the terminals with a screwdriver 4. Pull the connection cables out of the terminals 5. Loosen the two screws with a screw driver (Torx size T10 or slot VEGAWAVE 62 • Relay (DPDT)

  • Page 25: How To Proceed If A Repair Is Necessary

    How to proceed if a repair is necessary You can find an instrument return form as well as detailed information about the procedure in the download area of our homepage. By doing this you help us carry out the repair quickly and without having to call back for needed information. VEGAWAVE 62 • Relay (DPDT)
  • Page 26 Clean the instrument and pack it damage-proof • Attach the completed form and, if need be, also a safety data sheet outside on the packaging • Ask the agency serving you to get the address for the return ship- ment. You can find the agency on our homepage. VEGAWAVE 62 • Relay (DPDT)

  • Page 27: Dismount

    If personal data is stored on the old device to be disposed of, delete it before disposal. If you have no way to dispose of the old instrument properly, please contact us concerning return and disposal. VEGAWAVE 62 • Relay (DPDT)

  • Page 28: Supplement

    Ʋ Pipe thread, conical (ASME B1.20.1) 1½ NPT Weight approx. Ʋ Instrument weight (depending on 0.8 … 4 kg (0.18 … 8.82 lbs) process fitting) Ʋ Suspension cable (-20 … +80 °C/- 165 g/m (1.77 oz/ft) 4 … +176 °F) VEGAWAVE 62 • Relay (DPDT)
  • Page 29 Limit level of solids Process pressure mit PUR-suspension -1 … 3 bar/-100 … 300 kPa (-14.5 … 43 psig) cable Process pressure with FEP-suspension -1 … 6 bar/-100 … 600 kPa (-14.5 … 87 psig) cable VEGAWAVE 62 • Relay (DPDT)
  • Page 30 For that reason the associated approval documents of these instruments have to be carefully noted. They are part of the delivery or can be downloaded by entering the serial number of your instrument into the search field under www.vega.com as well as in the general download area. VEGAWAVE 62 • Relay (DPDT)

  • Page 31: Dimensions

    M20x1,5 M20x1,5/ M20x1,5/ M20x1,5/ ½ NPT ½ NPT ½ NPT M20x1,5/ ½ NPT Fig. 13: Housing versions Plastic single chamber Stainless steel single chamber (electropolished) Stainless steel single chamber (precision casting) Aluminium - single chamber VEGAWAVE 62 • Relay (DPDT)
  • Page 32 9 Supplement G1½ ø 43 mm (1.69") ø 11 mm (0.43") ø 43 mm (1.69") Fig. 14: VEGAWAVE 62 with PUR suspension cable, threaded version G1½ (DIN ISO 228/1) Sensor length, see chapter " Technical data" VEGAWAVE 62 • Relay (DPDT)
  • Page 33 9 Supplement G1½ ø 43 mm (1.69") ø 10 mm (0.39") ø 43 mm (1.69") Fig. 15: VEGAWAVE 62 with FEP suspension cable, threaded version G1½ (DIN ISO 228/1) Sensor length, see chapter " Technical data" VEGAWAVE 62 • Relay (DPDT)

  • Page 34: Industrial Property Rights

    Les lignes de produits VEGA sont globalement protégées par des droits de propriété intellec- tuelle. Pour plus d'informations, on pourra se référer au site www.vega.com. VEGA lineas de productos están protegidas por los derechos en el campo de la propiedad indus- trial. Para mayor información revise la pagina web www.vega.com.
  • Page 35 Notes VEGAWAVE 62 • Relay (DPDT)
  • Page 36 Subject to change without prior notice © VEGA Grieshaber KG, Schiltach/Germany 2022 VEGA Grieshaber KG Am Hohenstein 113 Phone +49 7836 50-0 77761 Schiltach E-mail: info.de@vega.com...
