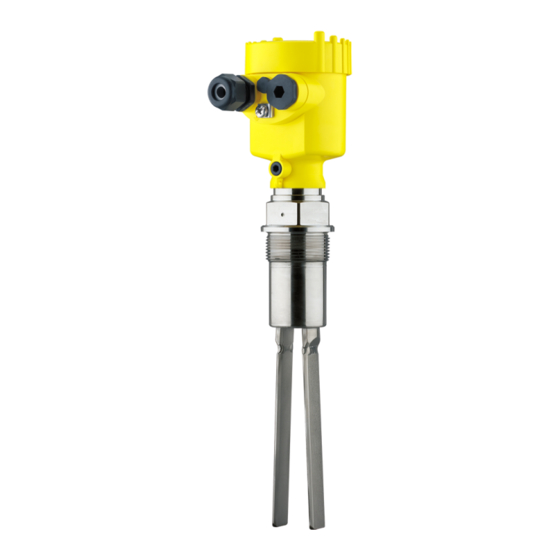

Vega VEGAWAVE 61 Operating Instructions Manual

Vibrating level switch for powders
Hide thumbs Also See for VEGAWAVE 61:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Instructions Manual
Operating Instructions
Vibrating level switch for powders
VEGAWAVE 61
Contactless electronic switch
Document ID: 32246

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEGAWAVE 61 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vega VEGAWAVE 61

Summary of Contents for Vega VEGAWAVE 61

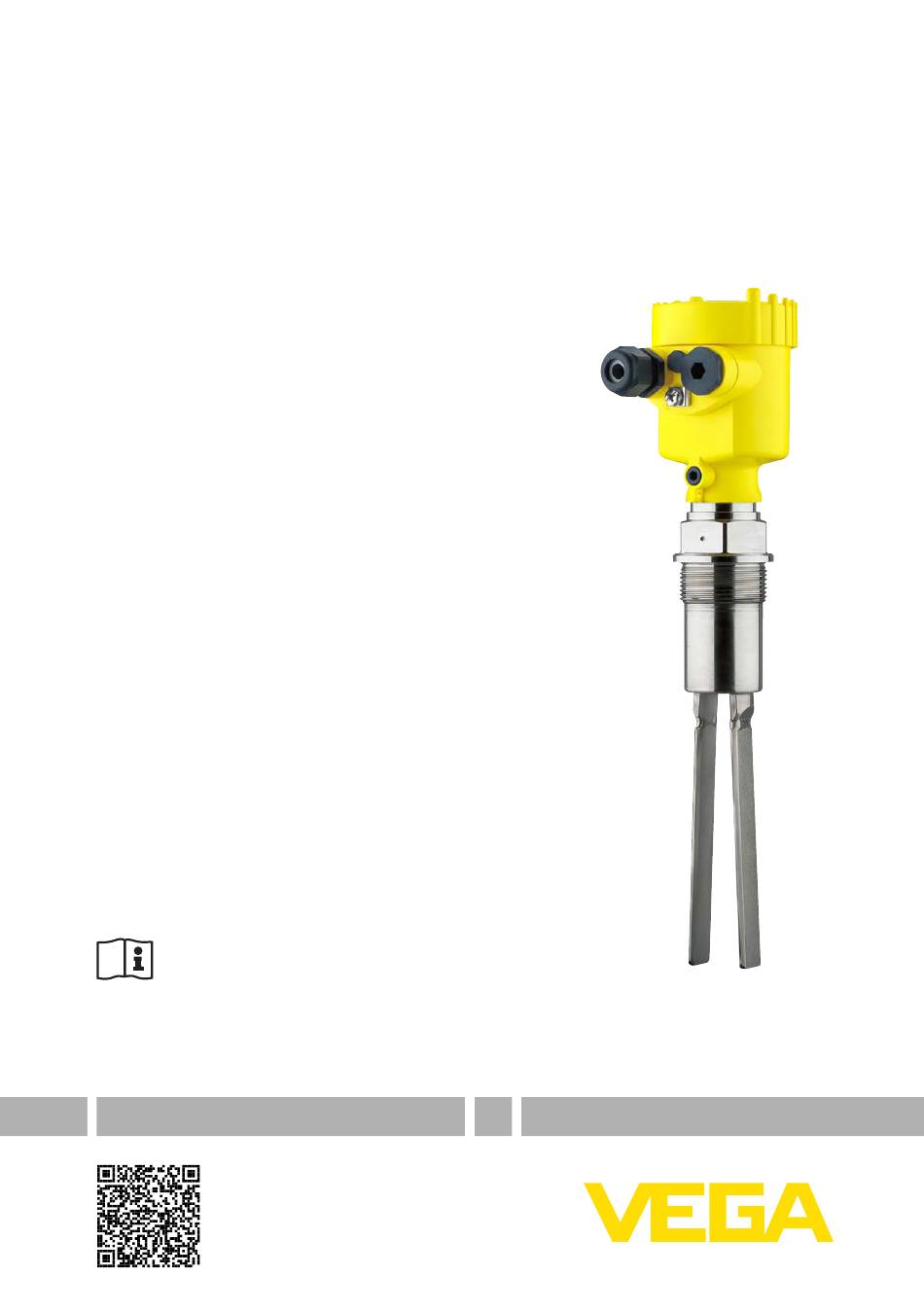

  • Page 1 Operating Instructions Vibrating level switch for powders VEGAWAVE 61 Contactless electronic switch Document ID: 32246...

  • Page 2: Table Of Contents

    How to proceed if a repair is necessary ................24 Dismount..........................26 Dismounting steps......................26 Disposal ......................... 26 Supplement ..........................27 Technical data ........................ 27 Dimensions ........................30 Industrial property rights ....................32 Trademark ........................32 VEGAWAVE 61 • Contactless electronic switch...

  • Page 3: Vegawave 61 • Contactless Electronic Switch

    Contents Safety instructions for Ex areas Take note of the Ex specific safety instructions for Ex applications. These instructions are attached as documents to each instrument with Ex approval and are part of the operating instructions. Editing status: 2018-11-22 VEGAWAVE 61 • Contactless electronic switch...

  • Page 4: About This Document

    Symbols used Document ID This symbol on the front page of this instruction refers to the Docu- ment ID. By entering the Document ID on www.vega.com you will reach the document download. Information, tip, note This symbol indicates helpful additional information.

  • Page 5: For Your Safety

    During work on and with the device, the required personal protective equipment must always be worn. Appropriate use The VEGAWAVE 61 is a sensor for point level detection. You can find detailed information about the area of application in chapter "Product description". Operational reliability is ensured only if the instrument is properly used according to the specifications in the operating instructions manual as well as possible supplementary instructions.

  • Page 6: Safety Label On The Instrument

    You can find the EU conformity declaration on our website under www.vega.com/downloads. SIL conformity VEGAWAVE 61 meets the requirements to the functional safety ac- cording to IEC 61508. Further information is available in the Safety Manual "VEGAWAVE series 60". Installation and operation in the USA and Canada This information is only valid for USA and Canada.

  • Page 7: Product Description

    Principle of operation Application area VEGAWAVE 61 is a point level sensor with tuning fork for point level detection. VEGAWAVE 61 • Contactless electronic switch...

  • Page 8: Adjustment

    Solid detection in water If VEGAWAVE 61 was ordered for solids detection in water, the tuning fork is set to the density of water. In air or when immersed in water (density: 1 g/cm³/0.036 lbs/in), VEGAWAVE 61 signals "uncovered".
  • Page 9 Technical data - Ambient conditions" • Relative humidity 20 … 85 % Lifting and carrying With instrument weights of more than 18 kg (39.68 lbs) suitable and approved equipment must be used for lifting and carrying. VEGAWAVE 61 • Contactless electronic switch...

  • Page 10: Mounting

    DIN/EN/IEC/ANSI/ISA/UL/CSA 61010-1. Switching point In general, VEGAWAVE 61 can be installed in any position. The instru- ment only has to be mounted in such a way that the vibrating element is at the height of the desired switching point.

  • Page 11: Mounting Instructions

    Mounting instructions Mounting socket The vibrating element should protrude into the vessel to avoid buildup. For that reason, avoid using mounting bosses for flanges and screwed fittings. This applies particularly to use with adhesive products. Filling opening Mount the instrument in such a way that the tuning fork does not protrude directly into the filling stream. VEGAWAVE 61 • Contactless electronic switch...
  • Page 12 Horizontal mounting To achieve a very precise switching point, you can install VEGAWAVE 61 horizontally. However, if the switching point can have a tolerance of a few centimeters, we recommend mounting VEGAWAVE 61 approx. 20° inclined to the vessel bottom to avoid buildup. 20° Fig. 4: Horizontal mounting Inflowing medium If VEGAWAVE 61 is mounted in the filling stream, unwanted false measurement signals can be generated.
  • Page 13 4 Mounting VEGAWAVE 61 at a position in the vessel where no disturbances, e.g. from filling openings, agitators, etc., can occur. Product flow To make sure the tuning fork of VEGAWAVE 61 generates as little resistance as possible to product flow, mount the sensor so that the surfaces are parallel to the product movement. Fig. 5: Flow orientation of the tuning fork...
  • Page 14 4 Mounting > 125 mm (> 5") Fig. 7: Baffle for protection against mechanical damage VEGAWAVE 61 • Contactless electronic switch...

  • Page 15: Connecting To Power Supply

    In hazardous areas, use only approved cable connections for VEGA- WAVE 61. Take note of the corresponding installation regulations for Ex applica- Connection cable tions. for Ex applications Cover all housing openings conforming to standard according to EN 60079-1. VEGAWAVE 61 • Contactless electronic switch...

  • Page 16: Connection Procedure

    10. If necessary, carry out a fresh adjustment 11. Screw the housing lid back on The electrical connection is finished. Wiring plan, single chamber housing The following illustrations apply to the non-Ex as well as to the Ex-d version. VEGAWAVE 61 • Contactless electronic switch...
  • Page 17 Stainless steel, electropolished (not with Ex d) Filter element for pressure compensation (not with Ex d) Wiring plan We recommend connecting VEGAWAVE 61 in such a way that the switching circuit is open when there is a level signal, line break or failure (safe state).
  • Page 18 5 Connecting to power supply Fig. 10: Wiring plan Shielding VEGAWAVE 61 • Contactless electronic switch...

  • Page 19: Setup

    (1) It is already preset and must only be modified in special cases. By default, the potentiometer of VEGAWAVE 61 is set to the right stop (> 0.02 g/cm³ or 0.0008 lbs/in³). In case of very light-weight solids, turn the potentiometer to the left stop (> 0.008 g/cm³ or 0.0003 lbs/...

  • Page 20: Function Table

    6 Setup in³). VEGAWAVE 61 will thus be more sensitive and can detect light- weight solids more reliably. For instruments detecting solids in water, these settings are not ap- plicable. The density range is preset and must not be changed.
  • Page 21 6 Setup Level Switching status Control lamp Fault Switch open flashes red VEGAWAVE 61 • Contactless electronic switch...

  • Page 22: Maintenance And Fault Rectification

    24 hour service hotline Should these measures not be successful, please call in urgent cases the VEGA service hotline under the phone no. +49 1805 858550. The hotline is manned 7 days a week round-the-clock. Since we offer this service worldwide, the support is only available in the English language. The service is free, only standard call charges are incurred.

  • Page 23: Exchanging The Electronics Module

    Proceed as follows: 1. Switch off voltage supply 2. Unscrew the housing lid 3. Lift the opening levers of the terminals with a screwdriver 4. Pull the connection cables out of the terminals 5. Loosen the two screws with a screw driver (Torx size T10 or slot VEGAWAVE 61 • Contactless electronic switch...

  • Page 24: How To Proceed If A Repair Is Necessary

    14. Check cable gland on tightness. The seal ring must completely encircle the cable. 15. Screw the housing lid back on The electronics exchange is now finished. How to proceed if a repair is necessary You can find an instrument return form as well as detailed informa- tion about the procedure in the download area of our homepage: www.vega.com. VEGAWAVE 61 • Contactless electronic switch...
  • Page 25 Clean the instrument and pack it damage-proof • Attach the completed form and, if need be, also a safety data sheet outside on the packaging • Please contact the agency serving you to get the address for the return shipment. You can find the agency on our home page www.vega.com. VEGAWAVE 61 • Contactless electronic switch...

  • Page 26: Dismount

    Pass the instrument directly on to a specialised recycling company and do not use the municipal collecting points. If you have no way to dispose of the old instrument properly, please contact us concerning return and disposal. VEGAWAVE 61 • Contactless electronic switch...

  • Page 27: Supplement

    Ʋ Pipe thread, cylindrical (DIN 3852-A) G1½ Ʋ Pipe thread, conical (ASME B1.20.1) 1½ NPT Instrument weight (depending on pro- 0.8 … 4 kg (0.18 … 8.82 lbs) cess fitting) Max. lateral load 600 N (135 lbf) VEGAWAVE 61 • Contactless electronic switch...
  • Page 28 -1 … 25 bar/-100 … 2500 kPa (-14.5 … 363 psig) VEGAWAVE 61 of 316L -50 … +150 °C (-58 … +302 °F) Process temperature (thread or flange -50 … +250 °C (-58 … +482 °F) temperature) with temperature adapter (option) VEGAWAVE 61 • Contactless electronic switch...
  • Page 29 < 5 mA (via load circuit) Load current Ʋ Min. 10 mA Ʋ Max. 400 mA (at I > 300 mA the ambient temperature can be max. 60 °C/140 °F) max. 4 A up to 40 ms VEGAWAVE 61 • Contactless electronic switch...

  • Page 30: Dimensions

    Instruments with approvals can have different technical specifications depending on the version. For that reason the associated approval documents of these instruments have to be carefully noted. They are part of the delivery or can be downloaded under www.vega.com, "Instrument search (serial number)" as well as in the general download area.
  • Page 31 9 Supplement G1½ ø 43 mm (1.69") Fig. 32: VEGAWAVE 61, threaded version G1½ (DIN ISO 228/1) ø 34 mm (1.34") Fig. 33: Temperature adapter VEGAWAVE 61 • Contactless electronic switch...

  • Page 32: Industrial Property Rights

    Les lignes de produits VEGA sont globalement protégées par des droits de propriété intellec- tuelle. Pour plus d'informations, on pourra se référer au site www.vega.com. VEGA lineas de productos están protegidas por los derechos en el campo de la propiedad indus- trial. Para mayor información revise la pagina web www.vega.com.
  • Page 33 Notes VEGAWAVE 61 • Contactless electronic switch...
  • Page 34 Notes VEGAWAVE 61 • Contactless electronic switch...
  • Page 35 Notes VEGAWAVE 61 • Contactless electronic switch...
  • Page 36 Subject to change without prior notice © VEGA Grieshaber KG, Schiltach/Germany 2018 VEGA Grieshaber KG Phone +49 7836 50-0 Am Hohenstein 113...
