Vega VEGAWAVE 62 Operating Instructions Manual

Cable shortening set, vibrating level switch with suspension cable for powders
Hide thumbs Also See for VEGAWAVE 62:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Instructions Manual
Operating Instructions
VEGAWAVE 62
Cable shortening set

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEGAWAVE 62 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vega VEGAWAVE 62

Summary of Contents for Vega VEGAWAVE 62

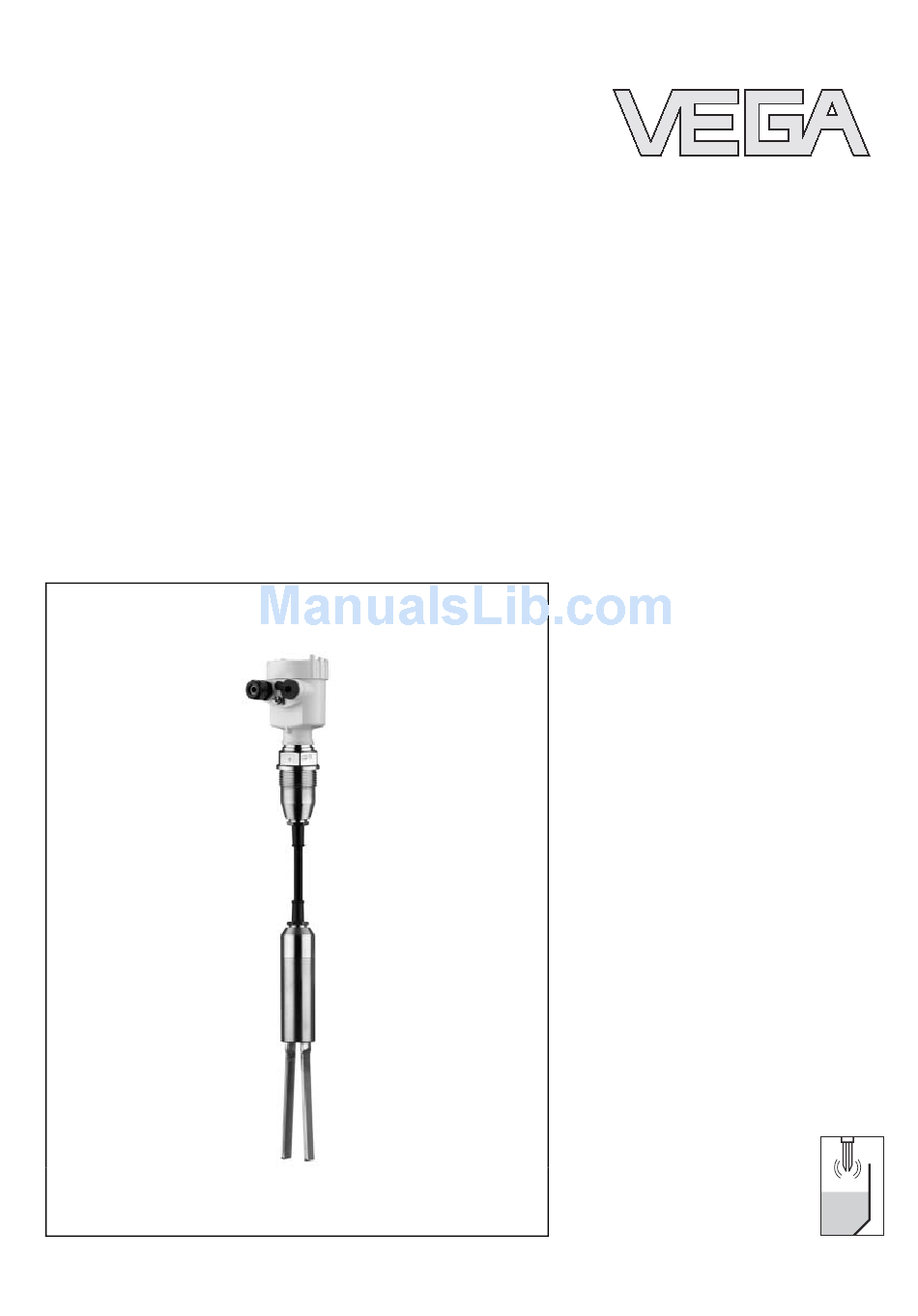

  • Page 1 Operating Instructions VEGAWAVE 62 Cable shortening set...

  • Page 2: Table Of Contents

    Disposal ......7 Supplement Technical data......VEGAWAVE 62 - Cable shortening set...

  • Page 3: About This Document

    This symbol indicates special instructions for Ex applications. List The dot set in front indicates a list with no implied sequence. à Action This arrow indicates a single action. Sequence Numbers set in front indicate successive steps in a procedure. VEGAWAVE 62 - Cable shortening set...

  • Page 4: For Your Safety

    2.2 Appropriate use The cable shortening set is used to shorten VEGAWAVE sensors in cable version (VEGAWAVE 62). 2.3 Warning about misuse Inappropriate or incorrect use of the instrument can give rise to application-specific hazards, e.g. vessel overfill or damage to system components through incorrect mounting or adjustment.

  • Page 5: Product Description

    PE foil is also used. Dispose of the packaging material via specialised recycling companies. Storage and transport temperature see "Supplement - Storage and transport tem- perature Technical data - Ambient conditions" Relative humidity 20 … 85 % VEGAWAVE 62 - Cable shortening set...

  • Page 6: Mounting

    Marker (permanent) Bolt cutter Flat wrench SW 24 Gaspipe pliers Skinning tools Cable cutter Wire cutter Crimping tool Allen wrench 2 mm Hot air blow-dryer Talcum/Mounting grease Additionally: Bench vice with Aluminium or plastic braces VEGAWAVE 62 - Cable shortening set...

  • Page 7: Mounting Sequence

    Mounting 4.2 Mounting sequence Fig. 1: Cable shortening set for VEGAWAVE 62 Crimp connector yellow, 2 pcs., article no. 2.11444 Crimp connector red, 3 pcs., article no. 2.18710 Crimping sleeve blue À8 x 30 mm, 1 pce., article no. 1.243 Crimping sleeve black À3 x 55 mm, 1 pce., article no.
  • Page 8 8 Clamp the lower part of the oscillator (below the screwed separating position) into the bench vice. Do not clamp on the fork tines VEGAWAVE 62 - Cable shortening set...
  • Page 9 Fig. 5: Uncompress the vibrating element carefully - cut the leads Upper part of the oscillator Lower part of the oscillator 10 Uncompress the two parts (A and B) carefully. Cut the leads directly on the clead pressing (see arrows) with wire cutting pliers. VEGAWAVE 62 - Cable shortening set...
  • Page 10 (10) for mounting. 13 Clean the remaining sensor cable (9) from oil and grease and rub it off with talcum. The old cable crimping can be no longer used and must be disposed accordingly. VEGAWAVE 62 - Cable shortening set...
  • Page 11 15 Remove the outer isolation of the cable on 100 mm (4 in) length. 16 Shorten the suspension cable (12) with a bolt cutter by 70 mm (2.8 in) (remaining length: 30 mm/1.2 in). VEGAWAVE 62 - Cable shortening set...
  • Page 12 (YE) wire on a length of 60 mm (2.4 in). Slightly push back the screen braiding and open it with a sharp object in the rear section. Make sure that the wires are not damaged. VEGAWAVE 62 - Cable shortening set...
  • Page 13 23 Exchange O-rings (5), slightly grease thread and O-rings. Fig. 11: Exchange O-ringe - prepare wires Shrinking sleeve - blue Crimping sleeve - black O-rings 14 Pressure screw 19 Upper part of the oscillator VEGAWAVE 62 - Cable shortening set...
  • Page 14 19 Upper part of the oscillator 26 Merge the parts of the vibrating element (A + B). Provide the thread with screw retention lacquer. Make sure that you do not squeeze any wires. The cable must not turn. VEGAWAVE 62 - Cable shortening set...
  • Page 15 (19). 31 Tighten the pressure screw (14) with the flat wrench SW 24 (approx. 6 Nm/4.4 lbf ft). 32 Check length of the sensor. VEGAWAVE 62 - Cable shortening set...
  • Page 16 Mounting 33 Install the sensor. 34 Connect the sensor according to the operating instructions manual of the sensor. 35 Check the correct switching function of the sensor. VEGAWAVE 62 - Cable shortening set...

  • Page 17: Maintenance And Fault Rectification

    If mounted correctly to the sensor, the cable shortening set is maintenance-free. There are no restrictions of the specifica- tions in the sensor documentation. 5.2 Instrument repair Take note of the specifications in the sensor documentation. VEGAWAVE 62 - Cable shortening set...

  • Page 18: Dismounting

    Note chapter "Mounting" and carry out the stated steps in reverse order. 6.2 Disposal The cable shortening set consists of materials which can be recycled by specialised recycling companies. Materials: see "Technical data" Take note of the specifications in the sensor documentation. VEGAWAVE 62 - Cable shortening set...

  • Page 19: Supplement

    Sensor length 0.3 ... 80 m (1 ... 262 ft) Approvals The respective approvals of the sensor are not restricted by the correct use of the cable shortening set. VEGAWAVE 62 - Cable shortening set...
  • Page 20 All statements concerning scope of delivery, application, practical use and operating conditions of the sensors and processing systems correspond to the information avail- able at the time of printing. © VEGA Grieshaber KG, Schiltach/Germany 2006 Subject to change without prior notice 32361-EN-060822...
