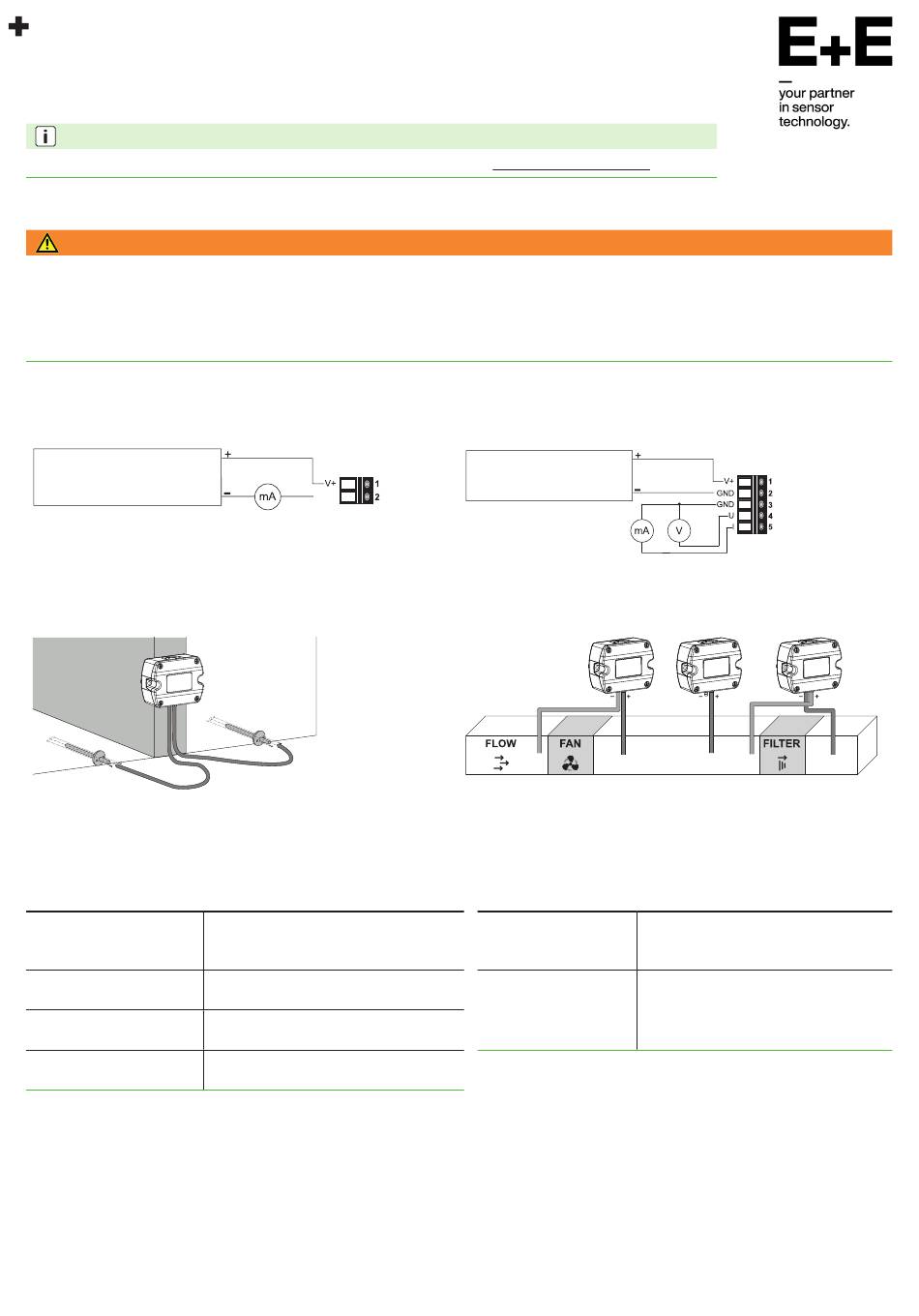

E+E Elektronik EE600 Quick Manual

Quick Guide
EE600 - Differential Pressure Sensor
PLEASE NOTE
Find this document and further product information on our website at www.epluse.com/ee600.
Electrical Connection
WARNING
Incorrect installation, wiring or power supply may cause overheating and result in personal injury or property damage.
Cables must not be under voltage during electrical installation and connection or disconnection, especially at terminal
connections on circuit boards. For correct cabling, always observe the presented wiring diagram for the product version used.
The manufacturer cannot be held responsible for personal injury or damage to property caused by incorrect handling,
installation, wiring, power supply or maintenance of the device.
Analogue Outputs
2-wire
Power supply
15 - 35 V DC
15 - 35 V DC
Installation
Pressure Connection
Use a Ø7.5 mm drill to install the pressure connection nipples into the duct.
User Interface - LED Indication
Green LED
Flashing (1 s interval)
One flash (2 s)
Off
Fast flashing
(0.2 s interval)
OUT1
EE600 operates normally, the
measured data is within the selected
measuring range
Confirms adjustment or return to
factory settings
No power supply or
electronics failure
Auto-zero is executed
(first time 90 min after start / reset)
3-wire
Power supply
15 - 35 V DC
24 V AC ±20 %
24 V AC ±20 %
15 - 35 V DC
Mounting Examples
Red LED
Flashing (1 s interval)
One flash (2 s)
The measured data is out of
the selected range (overload or
reversed pressure connection)
Indicates the failure of the attempt to
adjust zero point or span point, or to
return to factory adjustment
