ATTENTION: PLEASE READ AND UNDERSTAND ALL INSTRUCTIONS AND WARNINGS
BEFORE ASSEMBLING, INSTALLING OR USING THIS PRODUCT.
This "-02" bulkhead is only intended for a 2014 model year and later Ford Transit Connect Vans
earlier Transit Connect van, a different bulkhead (either an 96111-3-01 or 96511-3-01) must be used.
PLAN YOUR VAN (TIPS FOR FASTER INSTALLATION)
Before drilling into the van, check for electrical wiring and air-bag system components.
HARDWARE KIT
Description
1/4-20 x 3/4˝ Bolts
1/4-20 x 1-1/2˝ Bolts
1/4-20 x 2-1/4˝ Black Bolt
1/4-14 x 3/4˝ Self-Tapping Screws
1/4" Flat Washers
1/4" Lock Washers
1/4" Nylon Retaining Washers
1/4-20 Nylon Lock Nuts
1/4-20 Blind Fasteners
Blind Fastener Installation Tool
1/2" Spacers
3/4" Spacers
TOOLS REQUIRED
• 3/8˝ and 7/16˝ Sockets
• Electric Drill/Driver
• Ratchet Handle
• 7/16˝ Wrench
• 9/16˝ Wrench
• Floor Hole Locator Template (page 3&4)
• Marker
• 1/8˝ Drill Bit
• 7/32˝ Drill Bit
• 3/8˝ Drill Bit
• 1-1/8˝ Hole Saw
• 1/4-20 Thread Tap
• Utility Knife
1

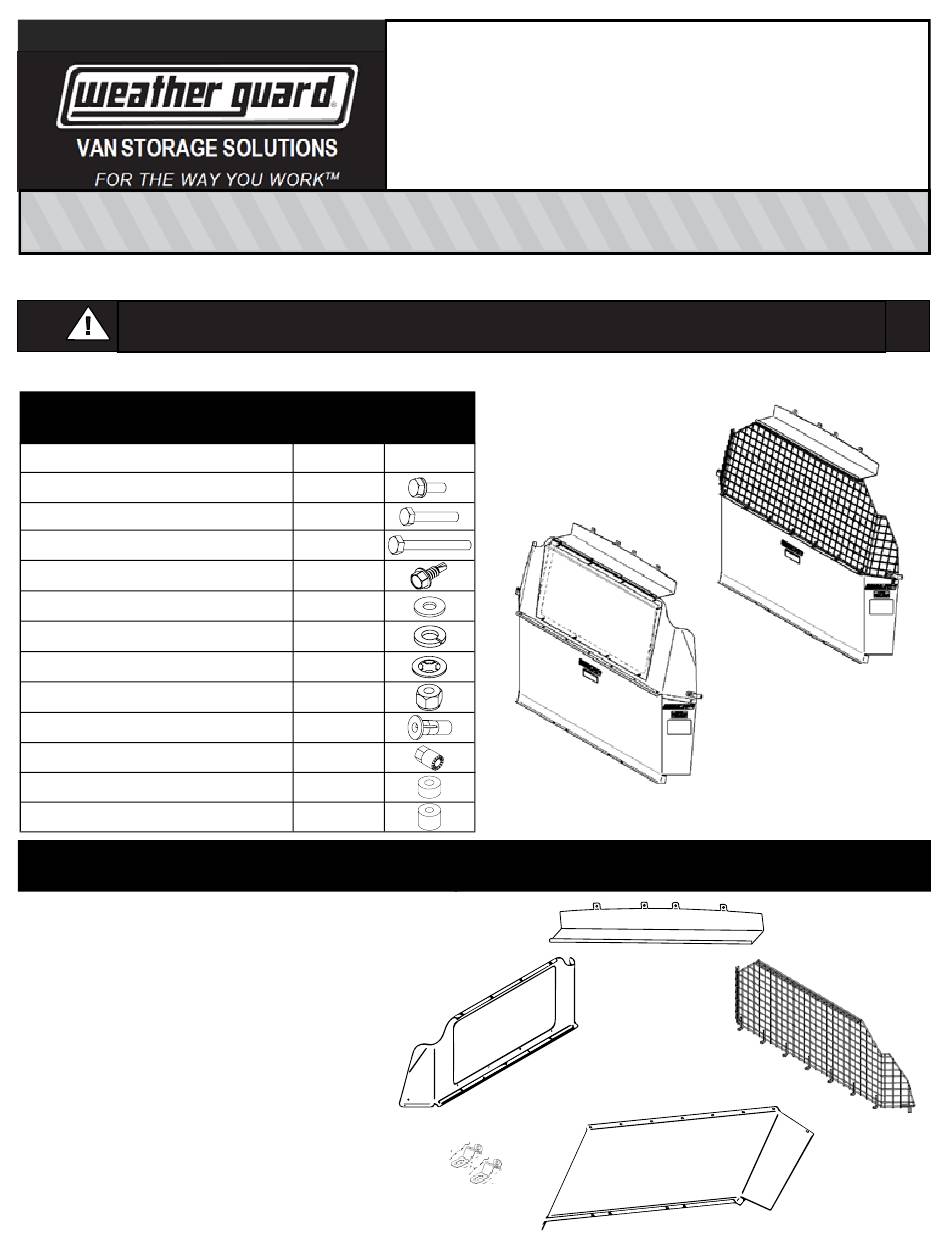

INSTALLATION MANUAL
Models 96111-3-02 & 96511-3-02
Bulkheads for 2014 and Later
Qty.
17
8
1
4
21
4
4
15
4
1
4
4
(Window—96511-3-02 only)
B-Pillar Brackets (2)
Ford Transit Connect Vans
96511-3-02 Window Bulkhead
PARTS LIST
Header Panel
Panel Top
Base Panel
®2019 WernerCo Part No. 24-0340 REV. C 11/2019
.
If you have a 2013 or
96111-3-02 Screen Bulkhead
Panel Top
(Screen—96111-3-02 only)
