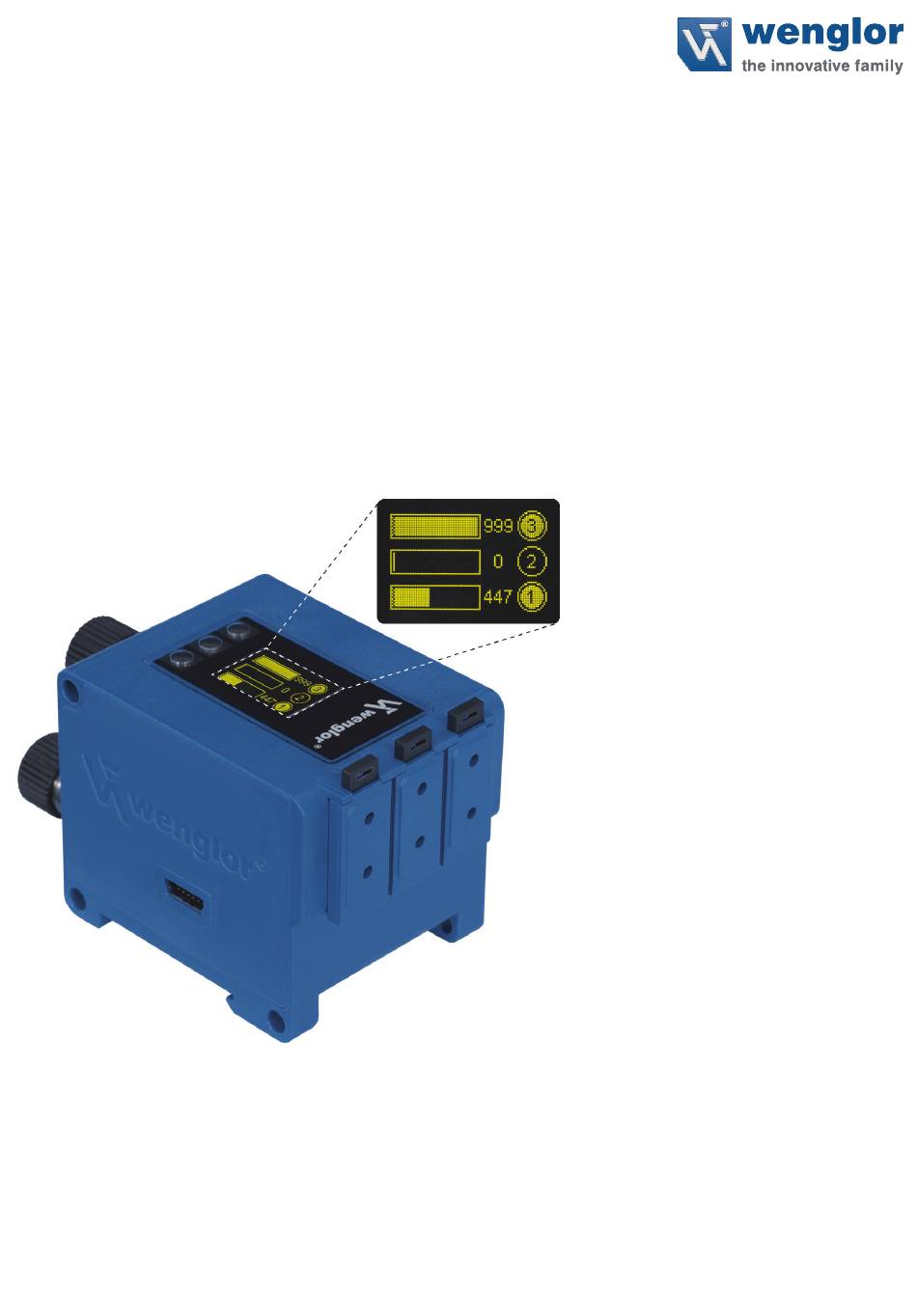

- Page 1 ODX402P0088 ODX402P0099 Fiber Optic Cable Sensor Operating Instructions Translation of the Original Operating Instruction Subject to change without notice Available as PDF version only Status: 07.11.2017 www.wenglor.com...
-
Page 2: Table Of Contents
Table of contents 1. Proper Use 2. Safety Precautions 3. General Information Regarding the Product 4. Product Features 4.1. Connection Diagrams 4.2. Housing Dimensions 4.3. EU Declaration of Conformity 4.4.Technical Data 4.5. Contamination Output 4.6. Complementary Products (see catalog) 4.7. Control Panel 4.8. -
Page 3: Proper Use
3. General Information Regarding the Product Three wenglor fiber optic cables can be adapted to these Sensors. Up to 12 add-on modules can be con- nected to this basic module, making 15 fiber optic cables available. The modern OLED display assures easy, menu-driven Sensor setup. -
Page 4: Product Features
Plug number 2 Plug number 3 Supply Voltage “+” Switching Output (1, 2, 3…)/IO-Link Switching Output (1, 2, 3…) Contamination Output/Error Output (NC) – Supply Voltage “0 V” 4.2. Housing Dimensions ODX402P0088 ODX402P0099 1 =Transmitter Diode 2 =Receiver Diode Product Features... -
Page 5: Eu Declaration Of Conformity
4.3. EU Declaration of Conformity The EU declaration of conformity can be found on our website at www.wenglor.com in download area. RoHS 4.4.Technical Data Switching Hysteresis < 15 % Light Source Red Light Wave Length 660 nm Service Life (Tu = 25 °C) 100000 h max. -
Page 6: Contamination Output
The contamination output functions as a normally closed contact (NC) and is switched off as soon as at least one of the connected sensors is being operated within the unreliable range. Unreliable range: contamination, misalignment 4.6. Complementary Products (see catalog) wenglor offers Connection Technology for field wiring. Suiting Connection Technology No. Glass Fiber Optic Cable IO-Link Master... -
Page 7: Installation Instructions
4.8. Installation Instructions All applicable electrical and mechanical regulations, standards and safety precautions must be adhered to when installing and operating the Sensor. The Sensor must be protected against mechanical influences. Install the device such that its installation position cannot be inadvertently changed. 4.8.1 Mounting to a DIN rail ... -
Page 8: Side Mounting
4.8.2 Side mounting Side mounting a unit: Secure the Sensor with screws (M4) through the mounting holes. Fig. 2 Side mounting of the Sensor 4.8.3 Connecting the plastic fibre-optic cable • Please cut the plastic fibre-optic cable once before using with the Z0015 cutting tool. •... -
Page 9: Initial Start-Up
5. Initial Start-Up Before the configuration, connect plug no. 1 and/or 2 and/or 3, depending on which outputs you need (view chapter “Connection Diagrams” on page 4). Note: If more than one plug is used, only one Supply Voltage can be used. The desired menu language must be selected after initial start-up, and after each reset (see chapter “Display”... -
Page 10: Menu Structure
5.2. Menu Structure Connect • normal Signal Strength Switching Status Indicator/ * only after Window Teach Initial Start-Up... -
Page 11: Settings
6. Settings 6.1. Run The Sensor is switched to the display mode when the enter key is pressed. Received Signal Strength Switching Status: (numeric value 0 – 999) Dark dot = Sensor connected Blinking = Contamination Bar chart of received Signal Strength 6.2. - Page 12 T 2-Point Two-Point Teachen To two objects are taught in by pressing the T1 and T2 keys. • Align the spot to object A. • Briefly press the T1 key. • Align the spot to object B. Calculated Switching • Briefly press the T2 key. Distance è...
-
Page 13: Configuring The Operating Mode
Hysteresis Adjusting Switching Hysteresis The hysteresis value is adjusted by pressing the + or – key.* Normal Sensitivity: Minimum value: 20, maximum value: 200 High Sensitivity: Minimum value: 45, maximum value: 200 Window Width Setting Window Width (only adjustable after window teach-in) Window width is selected by pressing the + or –... -
Page 14: Reset
6.2.4 Reset Function Description Reset Default setting All of the selected Sensor settings are returned to their default values by pressing the R key. 6.3. Output In the menu Outputs the 13 outputs of the Sensor are configured and linked. Therefor select one of the 13 outputs, or all outputs (Global) with the navigation keys and the enter key. -
Page 15: Link The Outputs
Off-Delay Adjusting Off-Delay Off-delay can be adjusted within a range of 0 to 10000 ms by pressing the + or – key.* Off-delay is disabled if a impulse duration has already been selected. See figure 4 on page 16. Impulse Adjusting Impulse Duration Pulse duration defines how long the output signal remains in the activated state. -
Page 16: On-/Off-Delay
6.3.3 ON-/OFF-Delay Reflex mode operation Through beam operation Object Object time bright Light input dark time Delay Delay On-Delay time Delay Delay Off-Delay time Delay Delay On-Delay time Delay Delay Off-Delay time Fig. 4 ON-/OFF-Delay 6.4. Measure In the menu Measure the speed measurement Measuring Measuring point 1... - Page 17 Function Description Distance Enter the Measurement Distance By pressing the key + resp. – the distance between the two Measurement points is set *. Minimal value: 10 mm; Maximal value: 10000 mm Channel 1 Set Measurement Point 1 By pressing the key + and – the first measurement point for the speed measurement is selected under the connected Sensors.
-
Page 18: Display
6.5. Display The display is set up with the help of the display menu. Function Description Rotate Rotating the Display The display is rotated 180° by pressing the enter key. The display can be returned to its original position by pressing the same key once again. Intensity Adjusting Display Brightness After pressing the 4 and 3 keys, the menu appears immediately with... -
Page 19: Language
6.6. Language The desired menu language can be selected in the “Language” menu. Function Description Language Selecting the Display Language The desired display language is selected by pressing the 5 and 6 keys, and is acknowledged by pressing the enter key. The desired language appears in the menus as soon as it has been selected. -
Page 20: Password
It must be assured that the newly selected password is noted before the password is changed. If the password is forgotten, it must be overwritten with a master password. The master password can be requested by e-mail from support@wenglor.com. Settings... -
Page 21: Io-Link
7. IO-Link Parameter data can be found in the interface protocol under: www.wenglor.com è Product World è Search (Enter the product number) è Download è Interface protocol 8. Add-on Modules 8.1. Connect the Add-on Modules Up to 12 Add-on Modules (ODX402P0099) can be connected to the Sensor. At each Add-on Module another Plastic Fiber Optic Cable can be connected, The Add-on Modules are configured like the Sensors of the Basic Module via the menu. -
Page 22: Maintenance Instructions
• Do not clean with solvents or cleansers which could damage the product. 10. Proper Disposal wenglor sensoric gmbh does not accept the return of unusable or irreparable products. Respectively valid national waste disposal regulations apply to product disposal. Maintenance Instructions... - Page 23 Fiber Optic Cable Sensor...
