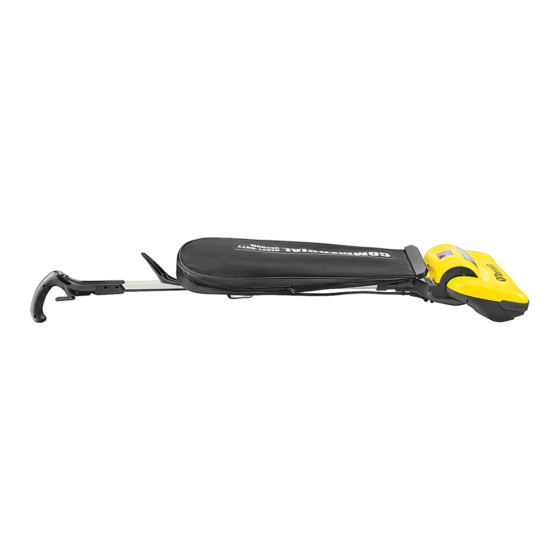

Lightweight commercial vacuum

Advertisement

Quick Links

H-10166
TORNADO
LIGHTWEIGHT
®
COMMERCIAL VACUUM
TOOLS NEEDED
Phillips Screwdriver
Flathead Screwdriver
GROUNDING
WARNING! This appliance must be grounded.
If it should malfunction or break down,
grounding provides a path of least resistance
for electric current to reduce the risk of electric
shock. This machine is equipped with a cord
having an equipment-grounding conductor
and grounding plug. The plug must be inserted
into an appropriate outlet that is properly
installed and grounded in accordance with all
local codes and ordinances.
WARNING! Improper connection of the
equipment-grounding conductor can result in
a risk of electric shock. Check with a qualified
electrician or service person if you are in
doubt as to whether the outlet is properly
grounded. Do not modify the plug provided
with the appliance – if it will not fit the outlet,
have a proper outlet installed by a qualified
electrician.
• Read and understand all instructions before using
this unit.
• This appliance is for use on a nominal 115-volt
circuit and has a grounding plug.
• Use this unit only as described in these instructions.
Use only manufacturer's recommended
attachments. To reduce the risk of personal
injury or damage to unit, use only Tornado
recommended accessories.
PAGE 1 OF 8
1-800-295-5510
uline.com
SAFETY
• This vacuum is intended for commercial use
only. It is designed exclusively to pick up dirt, dry
debris and dust in an indoor environment and is
not constructed for any other use. The pickup of
any type of fluid or dangerous/toxic materials is
prohibited. Use only recommended accessories.
WARNING! To reduce the risk of fire, electric
shock or injury, do not leave appliance
unattended when plugged in. Unplug from
outlet when not in use and before servicing.
WARNING! Electric shock could occur if used
outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention
is necessary when used by or near children.
• Do not use with damaged cord or plug. If
appliance is malfunctioning, has been dropped,
damaged, left outdoors or dropped into water, call
Uline Customer Service at 1-800-295-5510.
• Do not pull or carry by cord, use cord as handle,
close a door on cord, or pull cord around sharp
edges or corners. Do not run appliance over cord.
Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp
the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Turn off all controls before unplugging.
®
• Do not block or put any object into openings. Keep
openings free of dust, lint, hair and anything that
may reduce airflow.
Para Español, vea páginas 9-16.
Pour le français, consulter les pages 17-24.
0822 IH-10166

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TORNADO H-10166 and is the answer not in the manual?

Questions and answers

Summary of Contents for U-Line TORNADO H-10166

  • Page 1 Para Español, vea páginas 9-16. Pour le français, consulter les pages 17-24. H-10166 1-800-295-5510 uline.com TORNADO LIGHTWEIGHT ® COMMERCIAL VACUUM TOOLS NEEDED Phillips Screwdriver Flathead Screwdriver SAFETY GROUNDING • This vacuum is intended for commercial use only. It is designed exclusively to pick up dirt, dry WARNING! This appliance must be grounded.
  • Page 2 SAFETY CONTINUED • Keep hair, loose clothing and body parts away • Connect to a properly grounded outlet only. from openings and moving parts. • This vacuum is not intended for use by persons • Do not pick up anything that is burning or smoking, (including children) with reduced physical, sensory such as cigarettes, matches or hot ashes.
  • Page 3: Operation

    OPERATION POWER SUPPLY VACUUM USE STOP! Before using, ensure the connector plug This vacuum is designed to effectively and safely clean is securely attached to the base and that the all types of carpeting, wood, linoleum and vinyl floors. power plug is plugged into a polarized outlet. To place vacuum in position for use, lightly press foot on NOTE: Always unplug the vacuum by grasping the base and pull the handle backward.
  • Page 4: Routine Maintenance

    MAINTENANCE ROUTINE MAINTENANCE 3. Slide collar of new dust bag completely into collar retainer. (See Figure 10) For maximum performance, check and maintain vacuum parts regularly. Figure 10 WARNING! To avoid electrical shock or injury from moving parts, always turn off the power switch and unplug the power source plug before performing maintenance or troubleshooting.
  • Page 5: Cleaning The Dust Tube

    MAINTENANCE CONTINUED CLEANING THE DUST TUBE 4. Lift dust tube (A) while pressing the tube The vacuum features a dust tube designed to optimize release button (B) cleaning power. For best performance, routinely check located under the and clear excess dust and other debris. rubber collar.
  • Page 6 MAINTENANCE CONTINUED CLEANING BRUSH/REPLACING DRIVE BELT 5. To remove the Figure 18 rotating cleaning Check rotating cleaning brush and drive belt regularly brush, pull the right for wear or damage. side of the brush toward the front of NOTE: Keep rotating cleaning brush ends free the base and lift of string, hair and carpet fibers.
  • Page 7: Cleaning The Filter

    MAINTENANCE CONTINUED CLEANING THE FILTER REPLACING LIGHT BULB The post-motor HEPA filter is located in the base of the Unplug the vacuum. vacuum. 2. Insert a flathead screwdriver into slot and remove light lens. (See Figure 21) NOTE: Filter should be checked often and cleaned when it becomes dirty.
  • Page 8: Troubleshooting

    TROUBLESHOOTING OPERATING ISSUE CAUSES RECOMMENDATIONS Vacuum won't run. Vacuum is not plugged in. Check power source, plug and connector. Check/replace fuse – reset breaker. Household fuse/circuit breaker tripped. Vacuum won't pick up dirt. Dust bag is full. Replace with new dust bag. Drive belt is not functioning.
