π
H-1610
1-800-295-5510
uline.com

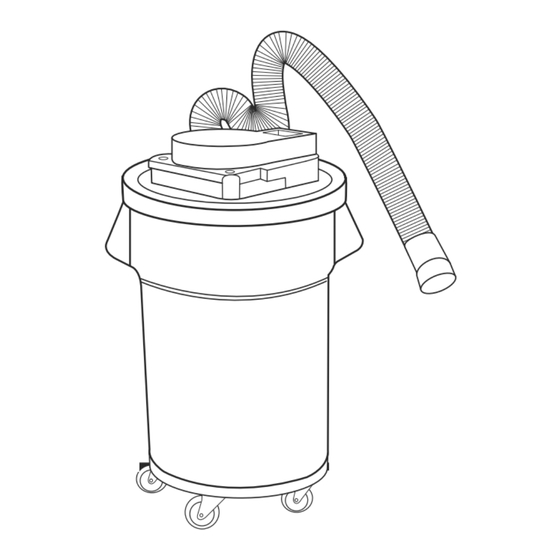

INDUSTRIAL PEANUT
VACUUM KIT
PARTS
Steel Ring x 1
Industrial Peanut Vacuum Insert x 1
(H-1610I)
55 Gallon Trash Can x 1
Trash Can Dolly x 1
Industrial Peanut Vacuum Motor x 1
(H-1047GR)
(H-1051)
(H-1610M)
ASSEMBLY
1. Attach dolly to bottom of trash can.
2. Place trash bag (not included) inside of trash can.
(See Figure 1)
(See Figure 2)
Figure 1
Figure 2
PAGE 1 OF 2
0219 IH-1610
Advertisement
Related Manuals for U-Line H-1610
Summary of Contents for U-Line H-1610
- Page 1 π H-1610 1-800-295-5510 uline.com INDUSTRIAL PEANUT VACUUM KIT PARTS Steel Ring x 1 Industrial Peanut Vacuum Insert x 1 (H-1610I) 55 Gallon Trash Can x 1 Trash Can Dolly x 1 Industrial Peanut Vacuum Motor x 1 (H-1047GR) (H-1051) (H-1610M) ASSEMBLY 1.
- Page 2 ASSEMBLY CONTINUED 3. Place vacuum insert inside of trash bag. Secure 5. Place vacuum motor on top of trash can. insert using attached hook and loop material. Make sure to protect the filter from damage. (See Figure 3) (See Figure 5) NOTE: Insert is designed to keep trash bag in place while vacuum is operating.
