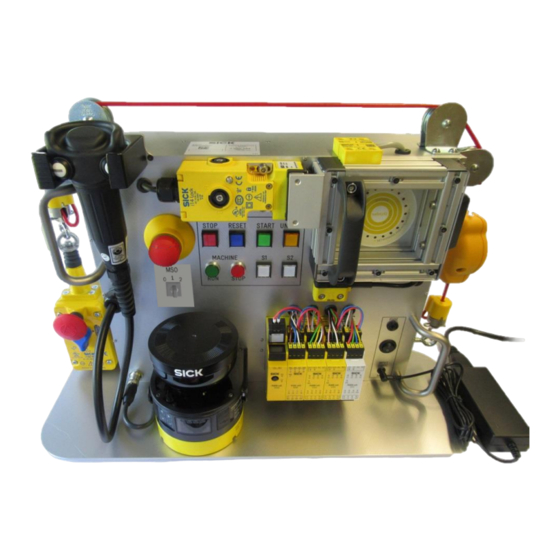

"SAFETY MULTI-BOX" TRAINING EQUIPMENT+DEMOCASE
Purpose of this document
These short operating instructions contain information on setting up, commissioning and demonstrating the "BGHW1
Machine Safety" training case. For detailed information regarding the installed components, please refer to the
respective operating instructions at http://www.sick.com/de/en.
Name, part number
TRAINING EQUIP - Safety Multi-Box, 1097795
DEMOCASE - Safety Multi-Box, 1108579
Technical data
Type: Training equipment in a case
Enclosure rating: IP20
Nominal power (training equipment): 23 W
Nominal current (training equipment): 1 A
Fuse: 3 A - SWITCH
Dimensions of the training equipment W x D x H: 550 mm x 240 mm x 380 mm
Dimensions of the case W x D x H: 650 mm x 330 mm x 490 mm
Weight (incl. case): 22.5 kg
Note:
The device is not suitable for use in residential areas. Radio interference cannot be ruled out when used in residential
areas.
8025381/2020-07-14
SHORT OPERATING INSTRUCTIONS |"SAFETY MULTI-BOX" TRAINING EQUIP+DEMOCASE
1
SICK AG | Waldkirch | Germany | www.sick.com
Advertisement
Related Manuals for SICK SAFETY MULTI-BOX
Summary of Contents for SICK SAFETY MULTI-BOX
- Page 1 Weight (incl. case): 22.5 kg Note: The device is not suitable for use in residential areas. Radio interference cannot be ruled out when used in residential areas. 8025381/2020-07-14 SHORT OPERATING INSTRUCTIONS |”SAFETY MULTI-BOX” TRAINING EQUIP+DEMOCASE SICK AG | Waldkirch | Germany | www.sick.com...
-
Page 2: Intended Use
, the machine starts up. The indicator lights up red and rotates. The machine is now in RUN mode. The RUN indicator lights up green. 8025381/2020-07-14 SHORT OPERATING INSTRUCTIONS |”SAFETY MULTI-BOX” TRAINING EQUIP+DEMOCASE SICK AG | Waldkirch | Germany | www.sick.com... - Page 3 Figure 1: Identification of the protective devices and the controls and status indicators on the front side. Figure 2: Identification of the protective devices and the controls and status indicators on the rear side. 8025381/2020-07-14 SHORT OPERATING INSTRUCTIONS |”SAFETY MULTI-BOX” TRAINING EQUIP+DEMOCASE SICK AG | Waldkirch | Germany | www.sick.com...
- Page 4 Safety light curtain opto-electronic protective device OSSD indicator on the safety light curtain List 1: Identification and explanation of the elements of the training case 8025381/2020-07-14 SHORT OPERATING INSTRUCTIONS |”SAFETY MULTI-BOX” TRAINING EQUIP+DEMOCASE SICK AG | Waldkirch | Germany | www.sick.com...
- Page 5 Operating modes 0, 1, 2 equivalent pushbutton on the rope pull RUN position protective measure: switch + press the Reset button Emergency stop Emergency stop safety command 8025381/2020-07-14 SHORT OPERATING INSTRUCTIONS |”SAFETY MULTI-BOX” TRAINING EQUIP+DEMOCASE SICK AG | Waldkirch | Germany | www.sick.com...
- Page 6 (detection of an object of size 14 mm or greater) field, the indicator switches to red. Non-contact protection with proximity function Protection for automated material transport 8025381/2020-07-14 SHORT OPERATING INSTRUCTIONS |”SAFETY MULTI-BOX” TRAINING EQUIP+DEMOCASE SICK AG | Waldkirch | Germany | www.sick.com...
- Page 7 Operating modes 0, 1, 2 1 - Automated mode functions key switch operating mode 2 - Setup mode The machine is stopped when the operating mode is changed. 8025381/2020-07-14 SHORT OPERATING INSTRUCTIONS |”SAFETY MULTI-BOX” TRAINING EQUIP+DEMOCASE SICK AG | Waldkirch | Germany | www.sick.com...
- Page 8 S2 Only the different speeds are visualized. Table 1: Demonstrating the safety and operating functions 8025381/2020-07-14 SHORT OPERATING INSTRUCTIONS |”SAFETY MULTI-BOX” TRAINING EQUIP+DEMOCASE SICK AG | Waldkirch | Germany | www.sick.com...
