QN908x DK, User Guide
Keywords

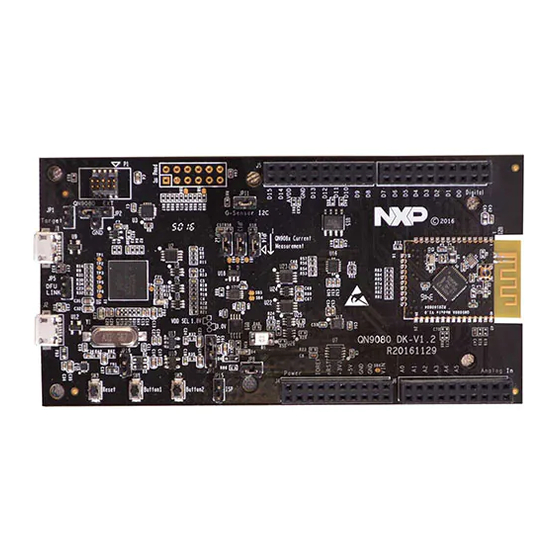

This document is an introduction of QN908x DK V1.2 board
Abstract
SECURITY
STATUS
DK User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QN908 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NXP Semiconductors QN908 Series

Summary of Contents for NXP Semiconductors QN908 Series

  • Page 1 AN<nnnnn> DK User Guide Rev. <MM.mm> — 27 April 2016 DK User Guide Document information Info Content QN908x DK, User Guide Keywords This document is an introduction of QN908x DK V1.2 board Abstract SECURITY STATUS...
  • Page 2 STATUS Contact information For more information, please visit: http://www.nxp.com <DOC_ID> All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 20144. All rights reserved. Application note Rev. <MM.mm> — 27 April 2016 2 of 33...

  • Page 3: Contents

    • QN9080 USB dongle • USB cable SECURITY STATUS <DOC_ID> All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2014. All rights reserved. Application note Rev. <MM.mm> — 27 April 2016 3 of 33...

  • Page 4: Hardware Description

    QN908x Module according to QN908x chip package: HVQFN and <DOC_ID> All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2014. All rights reserved. Application note Rev. <MM.mm> — 27 April 2016 4 of 33...
  • Page 5 Jumper used to cut off USB leakage, when DK Jumper JP16 board powered by battery <DOC_ID> All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2014. All rights reserved. Application note Rev. <MM.mm> — 27 April 2016 5 of 33...

  • Page 6: Default Jumper Settings On Dk Board

    There is the J-Link connector for programming and debugging off-board target, shown in Figure 3. <DOC_ID> All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2014. All rights reserved. Application note Rev. <MM.mm> — 27 April 2016 6 of 33...

  • Page 7: Qn9080 Module

    And it is also compatible to Arduino board interface. The interface schematic is shown in Figure 5. <DOC_ID> All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2014. All rights reserved. Application note Rev. <MM.mm> — 27 April 2016 7 of 33...

  • Page 8: Qn908X Reset Button

    When the jumper is open, the ISP mode function is disabled. Shown in Figure 7. Figure 7 Chip mode jumper 2.8 JTAG interface <DOC_ID> All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2014. All rights reserved. Application note Rev. <MM.mm> — 27 April 2016 8 of 33...

  • Page 9: Buttons

    PWM out mode. So that the brightness of LED can change with PWM pulse width. <DOC_ID> All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2014. All rights reserved. Application note Rev. <MM.mm> — 27 April 2016 9 of 33...
  • Page 10 NXP Semiconductors <Alternative descriptive title> Figure 10 LED SECURITY STATUS <DOC_ID> All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2014. All rights reserved. Application note Rev. <MM.mm> — 27 April 2016 10 of 33...

  • Page 11: Board Application Function

    QN908x DK board has two ways to measure QN908x chip current consumption. One <DOC_ID> All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2014. All rights reserved. Application note Rev. <MM.mm> — 27 April 2016...

  • Page 12: Current Test Using Lpc4322

    JP13 Open, when used for Link2 processor current test <DOC_ID> All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2014. All rights reserved. Application note Rev. <MM.mm> — 27 April 2016 12 of 33...

  • Page 13: Current Test Using Digital Ammeter

    Jumper JP2, which can be used as power ground. <DOC_ID> All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2014. All rights reserved. Application note Rev. <MM.mm> — 27 April 2016 13 of 33...

  • Page 14: Rf Connective Test With Cbt

    QN908x enter the DTM mode. Then Connect an RF cable from QN908x <DOC_ID> All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2014. All rights reserved. Application note Rev. <MM.mm> — 27 April 2016...
  • Page 15 Module to CBT and set the CBT RS232 Baud Rate@115200 bps. After that, you can start your RF test. SECURITY STATUS <DOC_ID> All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2014. All rights reserved. Application note Rev. <MM.mm> — 27 April 2016 15 of 33...

  • Page 16: Appendix

    QN908x DK V1.22 board schematic have five parts: Power, LPC processor, QN908x- BLE, QN908x-Function and Arduino Interface. <DOC_ID> All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2014. All rights reserved. Application note Rev. <MM.mm> — 27 April 2016 16 of 33...
  • Page 17 Figure 16 Power schematic for QN908x DK board STATUS <DOC_ID> All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2014. All rights reserved. Application note Rev. <MM.mm> — 27 April 2016 17 of 33...
  • Page 18 Figure 17 LPC processor schematic for QN908x DK board Figure 18 QN908x-BLE schematic for QN908x DK board <DOC_ID> All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2014. All rights reserved. Application note Rev. <MM.mm> — 27 April 2016 18 of 33...
  • Page 19 Figure 20 Arduino Interface schematic for QN908x DK board <DOC_ID> All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2014. All rights reserved. Application note Rev. <MM.mm> — 27 April 2016 19 of 33...

  • Page 20: Qn9080 Module Board

    5.2.1 QN908x DK main board STATUS Figure 22 Top Etch <DOC_ID> All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2014. All rights reserved. Application note Rev. <MM.mm> — 27 April 2016 20 of 33...
  • Page 21 Figure 23 GND Plane SECURITY STATUS Figure 24 PWR Plane <DOC_ID> All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2014. All rights reserved. Application note Rev. <MM.mm> — 27 April 2016 21 of 33...
  • Page 22 SECURITY SECURITY STATUS STATUS Figure 26 Top Silkscreen <DOC_ID> All information provided in this document is subject to legal disclaimers. © NXP NXP Semiconductors N.V. 2014. All rights reserved. Application note Rev. <MM.mm> — 27 April 2016 22 of 33...

  • Page 23: Qn9080 Qfn Board

    QFN board STATUS STATUS Figure 28 Top Etch <DOC_ID> All information provided in this document is subject to legal disclaimers. © NXP NXP Semiconductors N.V. 2014. All rights reserved. Application note Rev. <MM.mm> — 27 April 2016 23 of 33...
  • Page 24 Figure 29 GND Plane STATUS Figure 30 PWR Plane <DOC_ID> All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2014. All rights reserved. Application note Rev. <MM.mm> — 27 April 2016 24 of 33...
  • Page 25 Figure 31 Bottom Etch STATUS Figure 32 Top Silkscreen <DOC_ID> All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2014. All rights reserved. Application note Rev. <MM.mm> — 27 April 2016 25 of 33...

  • Page 26: Dimension For Pcb Board

    SECURITY STATUS Figure 33 Dimension for QN908x DK board <DOC_ID> All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2014. All rights reserved. Application note Rev. <MM.mm> — 27 April 2016 26 of 33...

  • Page 27: Qn9080 Qfn Module

    STATUS Figure 34 Dimension for QN9080 QFN Module board <DOC_ID> All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2014. All rights reserved. Application note Rev. <MM.mm> — 27 April 2016 27 of 33...

  • Page 28: Notes For Using Lithium Battery As Power Supply28

    -- Consult the dealer or an experienced radio/TV technician for help. <DOC_ID> All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2014. All rights reserved. Application note Rev. <MM.mm> — 27 April 2016 28 of 33...
  • Page 29 SECURITY STATUS <DOC_ID> All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2014. All rights reserved. Application note Rev. <MM.mm> — 27 April 2016 29 of 33...

  • Page 30: Legal Information

    In no event shall NXP Semiconductors be liable for any indirect, incidental, punitive, special or consequential damages (including - without limitation -...

  • Page 31: Table Of Contents

    Contents ............. 31 Please be aware that important notices concerning this document and the product(s) described herein, have been included in the section 'Legal information'. © NXP Semiconductors N.V. 2014. All rights reserved. For more information, visit: http://www.nxp.com Date of release: 27 April 2016...
  • Page 32 Table 6 Current Test Jumpers Setting ......12 Please be aware that important notices concerning this document and the product(s) described herein, have been included in the section 'Legal information'. © NXP Semiconductors N.V. 2014. All rights reserved. For more information, visit: http://www.nxp.com Date of release: 27 April 2016 Document identifier: <DOC_ID>...
  • Page 33 STATUS Please be aware that important notices concerning this document and the product(s) described herein, have been included in the section 'Legal information'. © NXP Semiconductors N.V. 2014. All rights reserved. For more information, visit: http://www.nxp.com Date of release: 27 April 2016...
