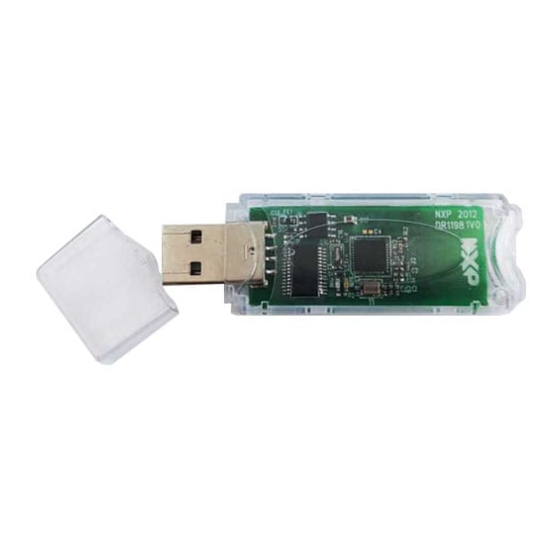

JN516x USB Dongle

Reference Manual

JN-RM-2065
Revision 1.0
14-Jan-2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JN516x and is the answer not in the manual?

Questions and answers

Summary of Contents for NXP Semiconductors JN516x

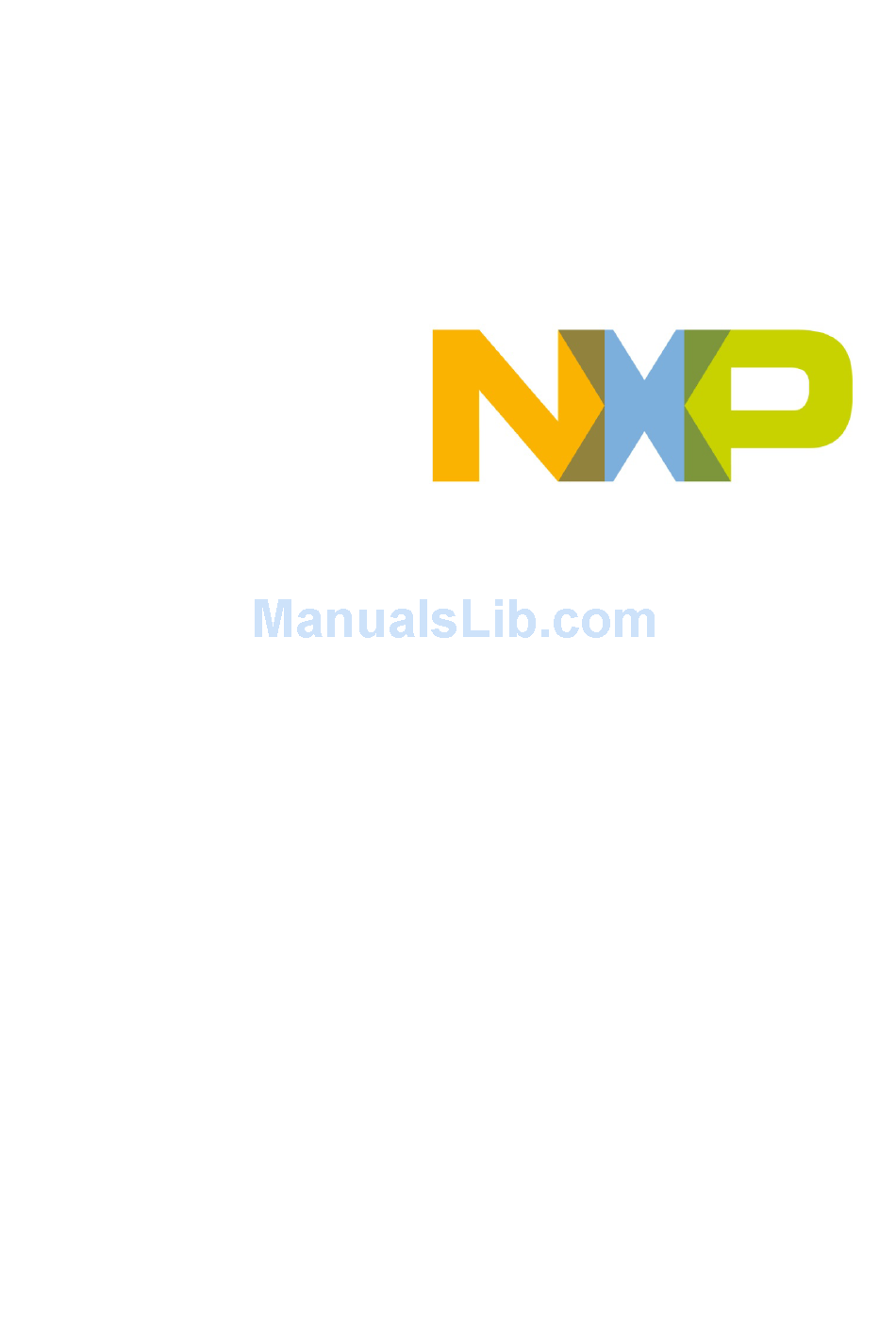

  • Page 1: Reference Manual

    JN516x USB Dongle Reference Manual JN-RM-2065 Revision 1.0 14-Jan-2013...
  • Page 2: Table Of Contents

    JN516x USB Dongle Reference Manual Contents About this Manual Organisation Conventions Acronyms and Abbreviations Related Documents Trademarks 1 Introduction 1.1 Overview 1.2 Features 1.3 Reference Design 2 Hardware Overview 2.1 Dongle Layout 2.2 Dongle Block Diagram 2.3 Hardware Components 2.3.1 JN516x Device 2.3.2 FT232RL Device...
  • Page 3: About This Manual

    (JN-RD-6039). This USB Dongle features a JN516x wireless microcontroller and allows communication with this JN516x device from a USB connection. With suitable embedded software running on the JN516x device, the dongle can then communicate with an IEEE 802.15.4, JenNet-IP, ZigBee PRO (ZigBee Light Link or Smart Energy) or ZigBee-RF4CE wireless network.
  • Page 4: Introduction

    IEEE802.15.4, JenNet-IP, ZigBee PRO (ZigBee Light Link or Smart Energy) or ZigBee-RF4CE networking protocol. An FTDI device provides the USB connection between the host machine and the JN516x device, which in turn provides the radio interface to the wireless network.
  • Page 5: Features

    • Serial Flash memory device (4 Mbits) • 32-kHz crystal oscillator 1.3 Reference Design The Reference Design JN-RD-6039 for the JN516x USB Dongle is available from www.nxp.com/jennic/support. This Reference Design comprises a ZIP file containing the following files: • This Reference Manual •...
  • Page 6: Hardware Overview

    JN516x USB Dongle Reference Manual 2 Hardware Overview This chapter provides an overview of the hardware design and the main hardware components of the JN516x USB Dongle. 2.1 Dongle Layout 30mm Antenna SPI Flash LEDs JN516x FT232RL Figure 2: DR1198 Board Layout 2.2 Dongle Block Diagram...
  • Page 7: Hardware Components

    The FT232RL device is connected to the USB connector and acts as an interface between the PC and the JN516x device. The FT232RL will enumerate on the PC as a virtual COM port connected directly to UART0 on the JN516x device.
  • Page 8 JN516x USB Dongle Reference Manual 5. Click Program Devices (the lightning button). 6. On the resulting screen, click Program – see screenshot below. © NXP Laboratories UK 2013 JN-RM-2065 v1.0...
  • Page 9: Leds

    32-kHz crystal can be used with the device. This is provided on the JN516x USB Dongle and can be enabled from the JN516x application using the JN516x Integrated Peripherals API - refer to the JN516x Integrated Peripherals API User Guide (JN-UG-3087).
  • Page 10: Flash Programming

    Reference Manual 3 Flash Programming When the JN516x USB Dongle is powered up, it attempts to run an application from the internal Flash memory of the JN516x device. This may be a self- contained application that sends and receives wireless data, and which does not need to communicate with the host.
  • Page 11: Compliance Statements And Documentation

    4 Compliance Statements and Documentation The compliance statements and documentation in this chapter apply only to a JN516x USB Dongle fitted with the JN5168-001 device – that is, the JN5168-001-U00 dongle (as supplied in the JN516x-EK001 Evaluation Kit). 4.1 FCC Statements and Documentation This section contains the Federal Communication Commission (FCC) statements and documents.
  • Page 12: Fcc Declaration Of Conformity

    JN516x USB Dongle Reference Manual 4.1.2 FCC Declaration of Conformity FCC COMPLIANCE INFORMATION STATEMENT DECLARATION OF CONFORMITY NXP LABORATORIES (UK) LTD FURNIVAL STREET SHEFFIELD S1 4QT UNITED KINGDOM TELEPHONE: +44 (0) 114 281 2655 FACSIMILE: +44 (0) 114 281 2951 E MAIL: info@jennic.com...
  • Page 13: Industry Canada Statement

    JN516x USB Dongle Reference Manual 4.2 Industry Canada Statement This device complies with Industry Le présent appareil est conforme aux CNR d'Industrie Canada Canada licence-exempt RSS standard(s). Operation is subject to applicables aux appareils radio exempts de licence. L'exploitation the following two conditions: (1) this device may not cause est autorisée aux deux conditions...
  • Page 14 JN516x USB Dongle Reference Manual © NXP Laboratories UK 2013 JN-RM-2065 v1.0...
  • Page 15: Revision History

    JN516x USB Dongle Reference Manual Revision History Version Date Description 14-Jan-2013 First release JN-RM-2065 v1.0 © NXP Laboratories UK 2013...
  • Page 16: Important Notice

    NXP Semiconductors does not accept any liability related to any default, damage, costs or problem which is based on any weakness or default in the customer’s applications or products, or the application or use by customer’s third party customer(s).
